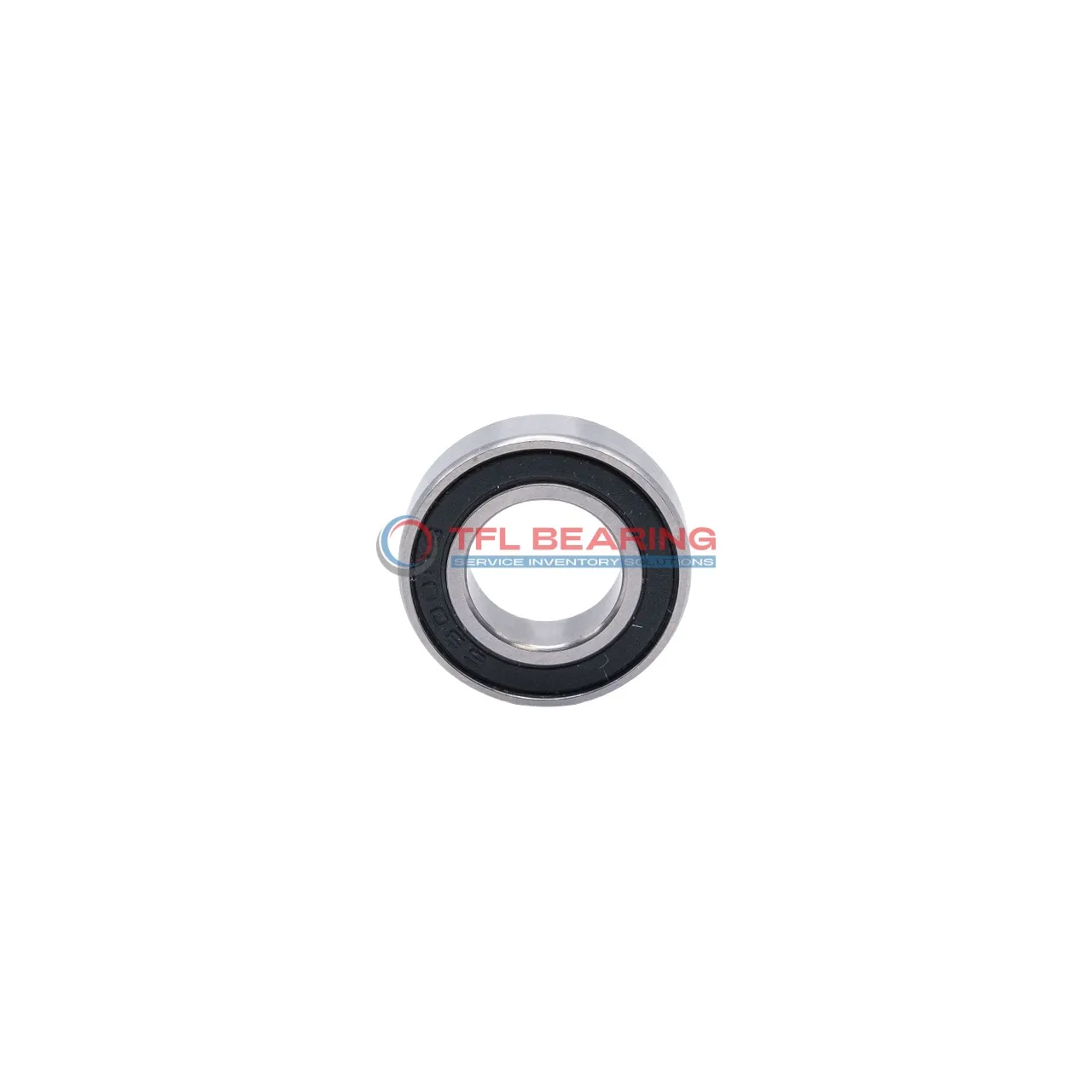

Stainless Steel Deep Groove Ball Bearings W 619/6-2RS1

Stainless Steel Deep Groove Ball Bearings W 619/6-2RS1

The W 619/6-2RS1 is a compact stainless steel deep groove ball bearing, measuring just 6mm by 15mm by 5mm. Its sealed design keeps grease in and dirt out, making it low-maintenance.

With a dynamic radial load capacity of 171 lbf, it handles moderate loads while spinning smoothly at up to 30,000 RPM. The all-stainless construction resists corrosion in damp or washdown environments.

Ideal for small machinery, medical devices, or food processing equipment where hygiene matters. Its P0 tolerance ensures reliable performance in precision applications.

Weighing only 3.8 grams, this bearing is lightweight yet durable. It’s interchangeable with SKF models and works in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 619/6-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 15 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 171 lbf
  • Static Radial Load 60 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 30000 rpm
  • Weight 0.0038 kg
Stainless Steel Deep Groove Ball Bearings W 619/6-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 619/6-2RS1 Bearing Reduce Friction?

W 619/6-2RS1 Bearing features a sealed design with stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its grease lubrication maintains consistent performance, even at high speeds up to 30,000 rpm.
The single-row construction and precision tolerance class P0 enhance radial load handling, supporting up to 171 lbf dynamically.
With a compact size of 6 mm×15 mm×5 mm, it fits seamlessly into small yet demanding applications.

Application

Common Applications of W 619/6-2RS1 Bearing
W 619/6-2RS1 Bearing is a go-to choice for small electric motors, thanks to its compact 6mm bore and sealed design that keeps out dust and moisture. Its stainless steel construction makes it ideal for environments where corrosion resistance matters, like food processing equipment.

In consumer electronics, W 619/6-2RS1 Bearing ensures smooth operation in devices like cooling fans or printer rollers. The grease lubrication and 30,000 rpm rating mean it handles continuous use without fuss.

For medical devices, this bearing’s precision and clean materials suit applications like dental handpieces or lab centrifuges. The P0 tolerance guarantees consistent performance where even minor vibrations matter.

Automation systems benefit from W 619/6-2RS1 Bearing in compact robotic joints or conveyor guides. Its 5mm width fits neatly into tight spaces while maintaining radial load capacity.
