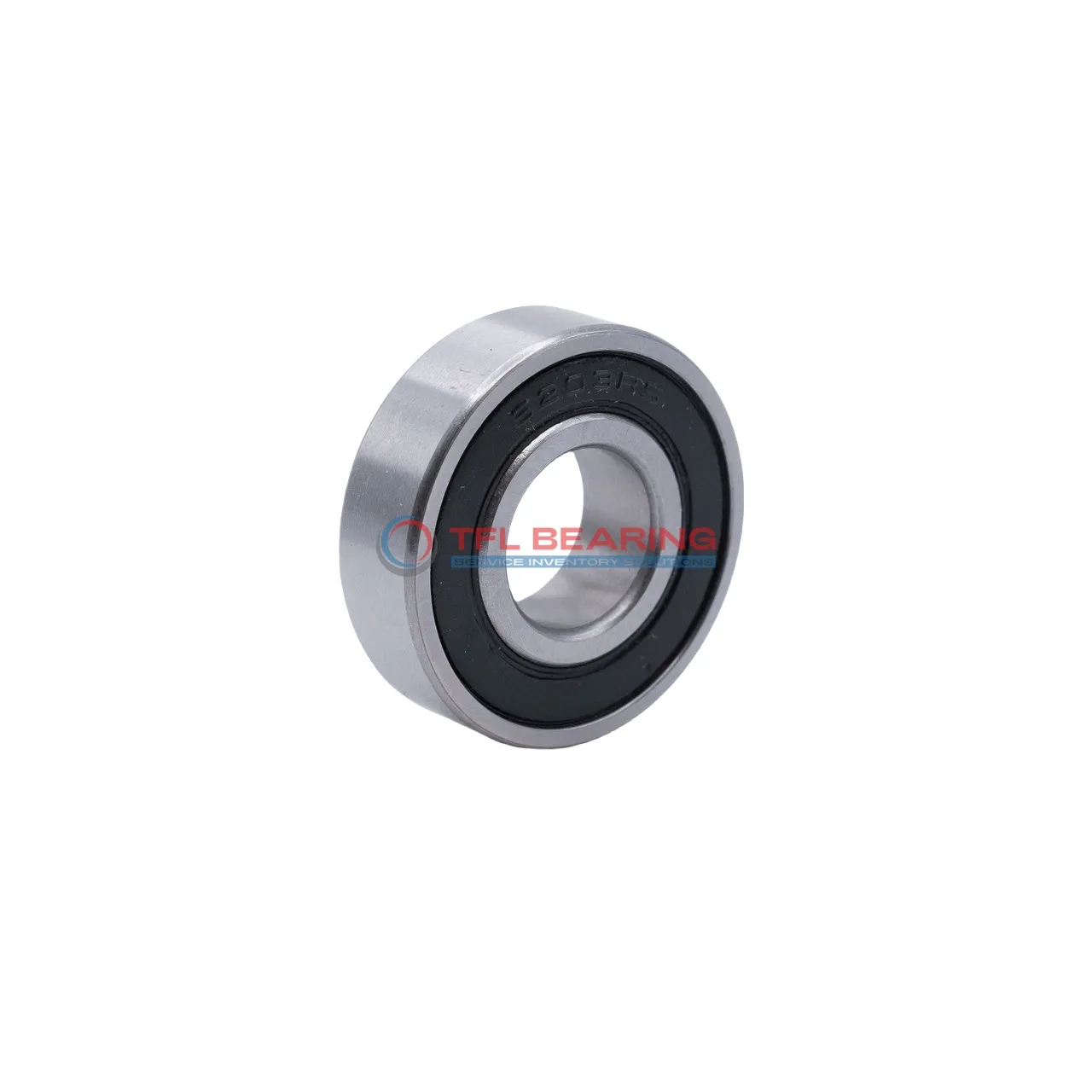

Stainless Steel Deep Groove Ball Bearings W 61810-2RS1

Stainless Steel Deep Groove Ball Bearings W 61810-2RS1

The W 61810-2RS1 is a compact stainless steel deep groove ball bearing, measuring 50mm by 65mm with a slim 7mm width. It handles radial loads up to 1140 lbf and operates smoothly at speeds up to 6000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance for long-term use. The all-stainless construction ensures corrosion resistance and durability.

This bearing is ideal for applications where hygiene or moisture resistance matters, like food processing or marine equipment. It’s interchangeable with SKF models for easy replacement.

Weighing just 0.051kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61810-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 65 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1140 lbf
  • Static Radial Load 1236 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 0.051 kg
Stainless Steel Deep Groove Ball Bearings W 61810-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 61810-2RS1 Bearing Reduce Friction?

W 61810-2RS1 Bearing features a sealed design with stainless steel components, ensuring smooth operation and reduced friction.
Its single-row construction and grease lubrication help maintain consistent performance under radial loads.
The bearing can handle dynamic radial loads up to 1140 lbf, making it suitable for various applications.
With a maximum speed of 6,000 rpm, it offers reliable efficiency in demanding conditions.

Application

Industrial Uses of W 61810-2RS1 Bearing
W 61810-2RS1 Bearing is commonly used in industrial settings, such as conveyor systems and pumps, where its sealed design helps keep contaminants out. The stainless steel construction ensures it performs well in environments with exposure to moisture or chemicals.

How Does W 61810-2RS1 Bearing Improve Performance?
In automotive applications like electric motors, W 61810-2RS1 Bearing offers smooth rotation and long service life due to its grease lubrication. The metric sizing makes it a versatile fit for various vehicle components.

Perfect Fit for Automation: W 61810-2RS1 Bearing
W 61810-2RS1 Bearing works well in robotic arms and automated machinery, where its compact size and radial load capacity are advantageous. The sealed design also reduces maintenance needs in high-use scenarios.

Medical vs Industrial: Where W 61810-2RS1 Bearing Excels
W 61810-2RS1 Bearing is suitable for medical devices like lab equipment, thanks to its corrosion-resistant materials. In industrial settings, it handles radial loads efficiently, making it a reliable choice for machinery.
