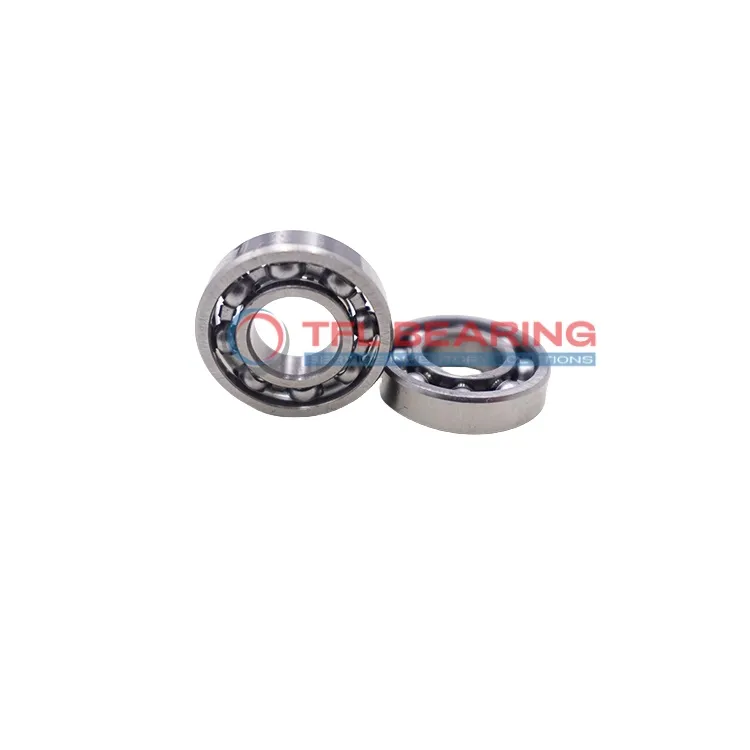

Stainless Steel Deep Groove Ball Bearings D/W R3A

Stainless Steel Deep Groove Ball Bearings D/W R3A

The D/W R3A is a compact stainless steel deep groove ball bearing, measuring just 0.18748″ in bore diameter and 0.625″ in outer diameter. Its single-row design and open seal make it simple to maintain, while the all-stainless construction ensures corrosion resistance.

It handles radial loads up to 192 lbf and spins smoothly at speeds up to 56,000 RPM, suitable for high-speed applications. The bearing operates reliably in temperatures ranging from -30°C to 120°C.

With a lightweight design at only 0.0044kg, it’s easy to handle and install. The P0 tolerance class and CN radial clearance provide consistent performance for precision needs.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small machinery, medical devices, or instruments where durability and hygiene matter. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R3A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 0.18748"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.625"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.19598"
  • Width Tolerance -0.005" to 0"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 192 lbf
  • Static Radial Load 71 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 56000 rpm
  • Weight 0.0044 kg
Stainless Steel Deep Groove Ball Bearings D/W R3A dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R3A Bearing for Precision Tasks?

D/W R3A Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its single-row design ensures smooth radial load handling, with a dynamic load capacity of 192 lbf.

The tight tolerances of D/W R3A Bearing provide precise operation, making it ideal for high-accuracy applications.
With a maximum speed of 56,000 rpm, it delivers reliable performance in fast-moving machinery.

D/W R3A Bearing operates efficiently in temperatures ranging from -30° to 120°C, suitable for varied environments.
Its open design allows for easy lubrication, reducing maintenance needs over time.

Application

Common Applications of D/W R3A Bearing
D/W R3A Bearing is widely used in industrial equipment like small pumps and electric motors, where its stainless steel construction offers good corrosion resistance. The open design allows for easy lubrication, making it suitable for environments with moderate loads.

In the automotive sector, D/W R3A Bearing can be found in components like alternators and small gearboxes, providing reliable radial load support. Its inch sizing ensures compatibility with various American and British machinery standards.

For medical devices, D/W R3A Bearing’s stainless steel build is ideal for applications requiring frequent sterilisation, such as dental tools. The consistent performance and durability make it a trusted choice in precision instruments.

Automation and robotics also benefit from D/W R3A Bearing, particularly in compact robotic arms and small actuators. Its lightweight design and smooth operation help maintain efficiency in high-speed movements.

In consumer electronics, D/W R3A Bearing is often used in small fans and printers, where quiet operation and longevity are key. The corrosion-resistant materials ensure reliable performance even in humid conditions.
