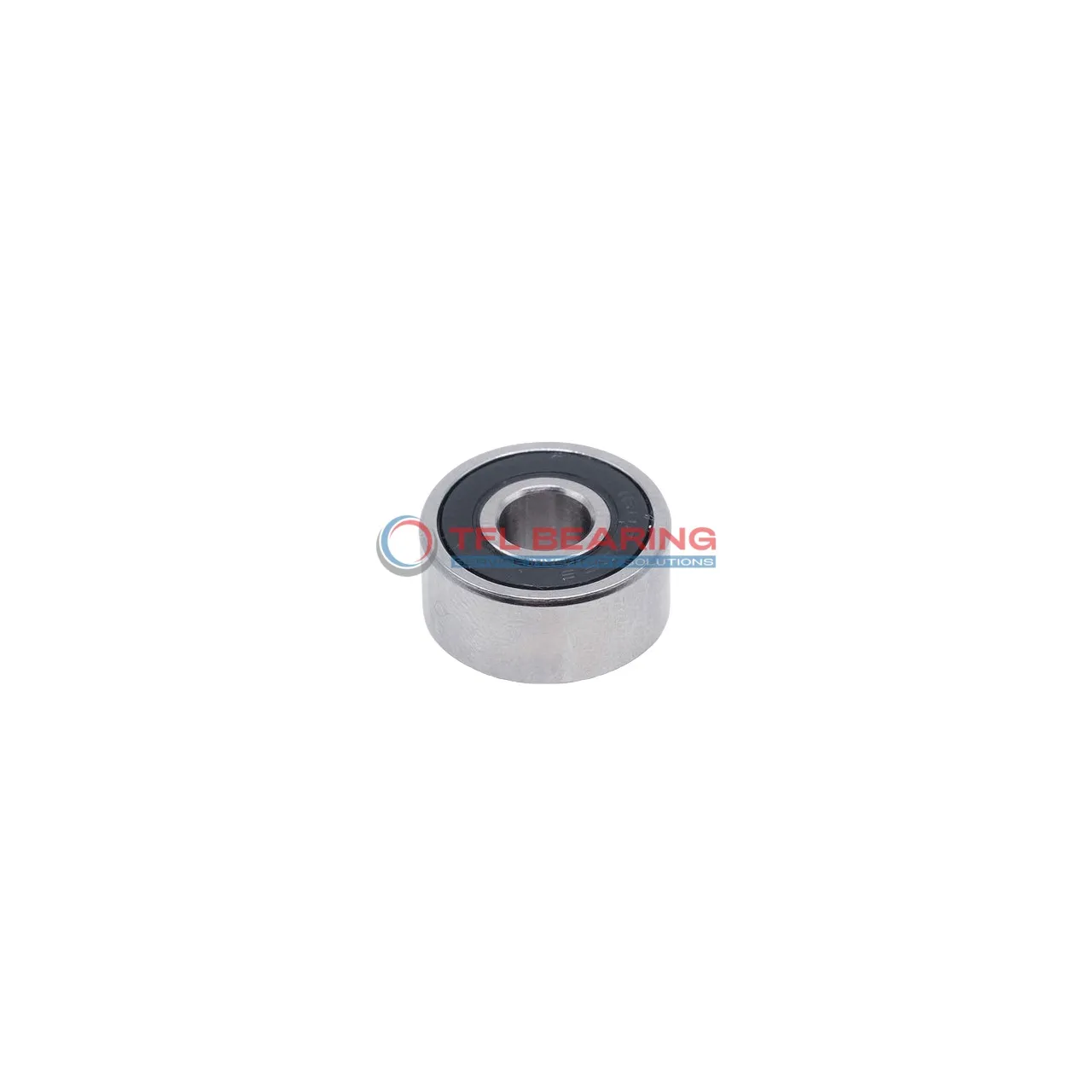

Stainless Steel Deep Groove Ball Bearings D/W R2-6-2RS1

Stainless Steel Deep Groove Ball Bearings D/W R2-6-2RS1

This stainless steel deep groove ball bearing is compact, measuring just 0.125″ by 0.375″ by 0.14059″. It handles radial loads up to 82 lbf and spins smoothly at speeds up to 40,000 RPM.

The sealed design keeps grease in and dirt out, making it low-maintenance. Its all-stainless steel construction ensures durability and resistance to corrosion.

With a temperature range of -30°C to 120°C, it’s suitable for various environments. The bearing is interchangeable with SKF models, offering a reliable replacement option.

Ideal for small machinery or instruments where space is limited but performance is key. Weighing only 0.0013kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R2-6-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 0.125"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.375"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.14059"
  • Width Tolerance -0.005" to 0"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 82 lbf
  • Static Radial Load 26 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 40000 rpm
  • Weight 0.0013 kg
Stainless Steel Deep Groove Ball Bearings D/W R2-6-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R2-6-2RS1 Bearing for Precision Tasks?

D/W R2-6-2RS1 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its sealed design keeps contaminants out, ensuring smooth operation in various environments.
With a dynamic radial load capacity of 82 lbf, it handles precise radial loads efficiently.
The bearing’s high-speed capability of 40,000 rpm makes it suitable for demanding applications.

Application

Common Applications of D/W R2-6-2RS1 Bearing
D/W R2-6-2RS1 Bearing works well in small machinery, especially where corrosion resistance is needed, like in food processing equipment. Its sealed design keeps grease in and contaminants out, making it reliable for long-term use.

In automotive applications, D/W R2-6-2RS1 Bearing fits nicely in compact spaces such as electric window motors or dashboard instruments. The stainless steel construction ensures it holds up well against moisture and temperature changes.

For medical devices, D/W R2-6-2RS1 Bearing is a good fit for precision tools like dental handpieces. The smooth operation and sealed design help maintain hygiene and performance in critical settings.

In home appliances, D/W R2-6-2RS1 Bearing can be found in items like electric shavers or small fans. Its durability and quiet operation make it a practical choice for everyday devices.

Automation systems benefit from D/W R2-6-2RS1 Bearing in robotic arms or small conveyor belts. The inch sizing and sealed features ensure compatibility and protection in dynamic environments.
