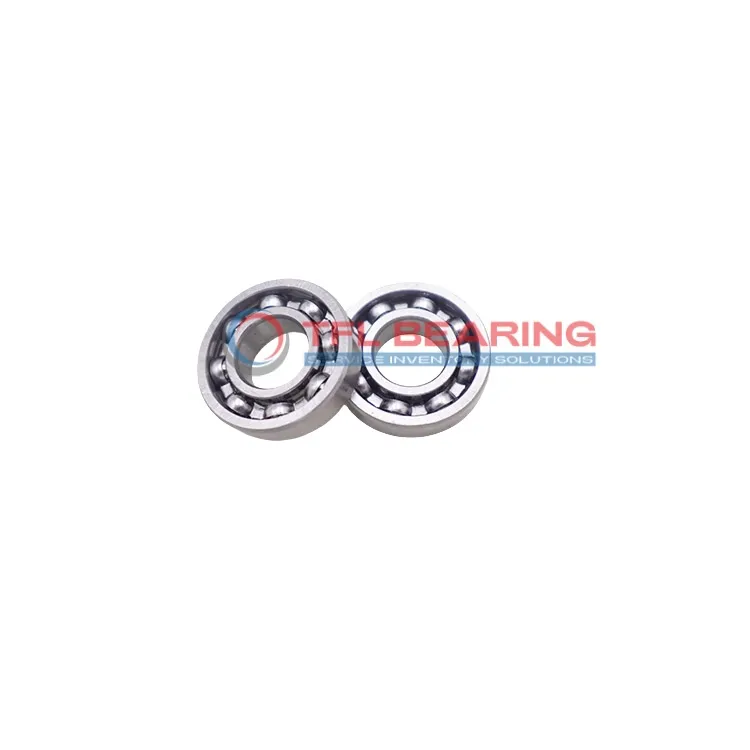

Stainless Steel Deep Groove Ball Bearings D/W R1-5

Stainless Steel Deep Groove Ball Bearings D/W R1-5

This stainless steel deep groove ball bearing is a compact unit, measuring just 0.0937″ in bore diameter and 0.31252″ in outer diameter. Its single-row design with open construction ensures smooth radial load handling up to 70 lbf.

Made entirely from stainless steel, it resists corrosion and handles speeds up to 95,000 RPM. The bearing operates in temperatures from -30°C to 120°C, making it versatile for various environments.

With a lightweight design at only 0.0006kg, it’s easy to handle and install. Ideal for small machinery or precision instruments where reliability and compact size are key.

Compliant with RoHS and REACH standards, it’s a safe choice for eco-conscious applications. Interchangeable with SKF bearings for convenient replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R1-5
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 0.0937"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.31252"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.10941"
  • Width Tolerance -0.005" to 0"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 70 lbf
  • Static Radial Load 20 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 95000 rpm
  • Weight 0.0006 kg
Stainless Steel Deep Groove Ball Bearings D/W R1-5 dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R1-5 Bearing for Precision Tasks?

D/W R1-5 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.

Its precision design ensures smooth radial load handling, with a dynamic radial load capacity of 70 lbf.

The single-row construction and open seal type allow for easy maintenance and efficient operation.

With a maximum speed of 95,000 rpm, it is ideal for high-speed applications requiring reliability.

Application

Common Applications of D/W R1-5 Bearing
D/W R1-5 Bearing is widely used in small industrial equipment, such as precision instruments and miniature motors, where its stainless steel construction offers good corrosion resistance. The open design ensures easy lubrication access, extending its service life in dusty environments.

In automotive applications, D/W R1-5 Bearing fits well in compact components like electric window mechanisms or fuel pumps. Its inch sizing makes it a convenient choice for older or specialty vehicles that require precise fits.

For medical devices, D/W R1-5 Bearing’s smooth operation is ideal for handheld surgical tools or diagnostic equipment. The stainless steel materials also meet hygiene standards, reducing contamination risks in sensitive settings.

Where Is D/W R1-5 Bearing Used?
You’ll often spot D/W R1-5 Bearing in consumer electronics like small fans or printer rollers, where its low friction keeps noise levels down. The high-speed capability ensures reliable performance even with frequent use.

In robotics, D/W R1-5 Bearing provides smooth motion for lightweight robotic arms or 3D printer parts. Its compact size and durability make it a practical option for automated systems requiring precision movement.

Built for Versatility: D/W R1-5 Bearing
D/W R1-5 Bearing works well in household appliances, such as electric toothbrushes or hairdryers, thanks to its lightweight design. The stainless steel build also handles moisture without rusting, perfect for bathroom or kitchen gadgets.

Light-Duty vs Heavy-Duty: Best Uses for D/W R1-5 Bearing
For light-duty tasks, D/W R1-5 Bearing excels in hobbyist projects like model trains or RC cars, where small size matters. In heavier industrial settings, it’s often paired with larger bearings to handle specific radial loads in confined spaces.
