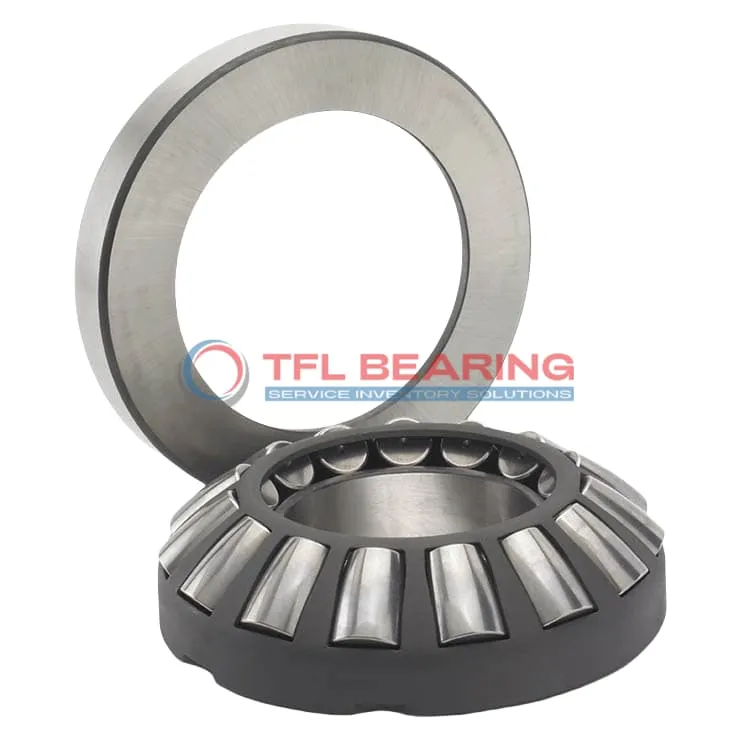

Spherical Roller Thrust Bearings 29418 E

Spherical Roller Thrust Bearings 29418 E

The 29418 E is a spherical roller thrust bearing with a 90mm bore and 190mm outer diameter, built to handle heavy combined loads. It supports dynamic thrust loads up to 183219 lbf and operates smoothly at speeds up to 3400 RPM.

Made from durable steel, its single-row design with a steel cage offers reliable performance. The bearing requires regular lubrication and works in temperatures from -30°C to 100°C.

Its spherical rollers help manage misalignment, making it suitable for demanding applications. Ideal for heavy machinery or industrial equipment where high thrust loads are present.

Weighing 7.75kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29418 E
  • Brand TFL
  • Interchangeable SKF
  • Size 90 mm x 190 mm x 60 mm
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02 to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.03 to 0
  • Width 60 mm
  • Outside Diameter(d1) 164 mm
  • Shoulder Diameter Outer Ring (D1) 128 mm
  • Height Shaft Washer Cage(B1) 54 mm
  • Height Housing Washer(C) 28.5 mm
  • Distance From Shaft Washer End Side Face To Pressure Point(s) 56 mm
  • Chamfer Dimension Shaft Washer(r1,2) 2.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Spherical
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Roller Material Steel
  • Cage Material Steel
  • Dynamic Thrust Load 183219 lbf
  • Static Thrust Load 449618 lbf
  • Max Speed 3400 rpm
  • Lubrication Required
  • Temperature Range -30 to 100 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 7.75 kg
  • Height Tolerance -0.125 to 0
  • Width Shaft Washer Or Length Of Shaft(B) 39 mm
  • Price（$） 349.2

Features

How Is 29418 E Bearing Engineered for Reliability?

29418 E Bearing features a spherical roller design, allowing it to handle combined loads with ease.
Its dynamic thrust load capacity of 183219 lbf ensures robust performance in demanding conditions.

The steel rollers and cage provide durability, while the precise tolerances maintain smooth operation.
With a maximum speed of 3400 rpm, it balances high performance and long service life.

29418 E Bearing operates efficiently within a temperature range of -30 to 100°C.
Its single-row construction simplifies installation and maintenance, reducing downtime.

Application

Industrial Uses of 29418 E Bearing
29418 E Bearing is commonly used in heavy machinery like crushers and mining equipment, where its spherical roller design handles combined loads with ease. The steel construction ensures durability even in demanding industrial environments.

What Makes 29418 E Bearing a Preferred Choice?
In wind turbines, 29418 E Bearing supports the main shaft, offering reliable performance under varying wind conditions. Its high dynamic thrust load capacity makes it suitable for renewable energy applications.

Built for Heavy-Duty Use: 29418 E Bearing
For construction equipment such as cranes and excavators, 29418 E Bearing provides stability and load-bearing capacity. The metric sizing ensures compatibility with a wide range of machinery.

Automotive vs Aerospace: Applications of 29418 E Bearing
In automotive applications, 29418 E Bearing is found in heavy-duty trucks and transmissions, while in aerospace, it supports auxiliary systems. Its temperature range suits both ground and flight conditions.

Perfect Fit for Automation: 29418 E Bearing
29418 E Bearing works well in automated production lines, particularly in robotic arms and conveyor systems. The steel cage enhances its longevity in high-cycle operations.
