Spherical Roller Thrust Bearings 29415 E

Spherical Roller Thrust Bearings 29415 E

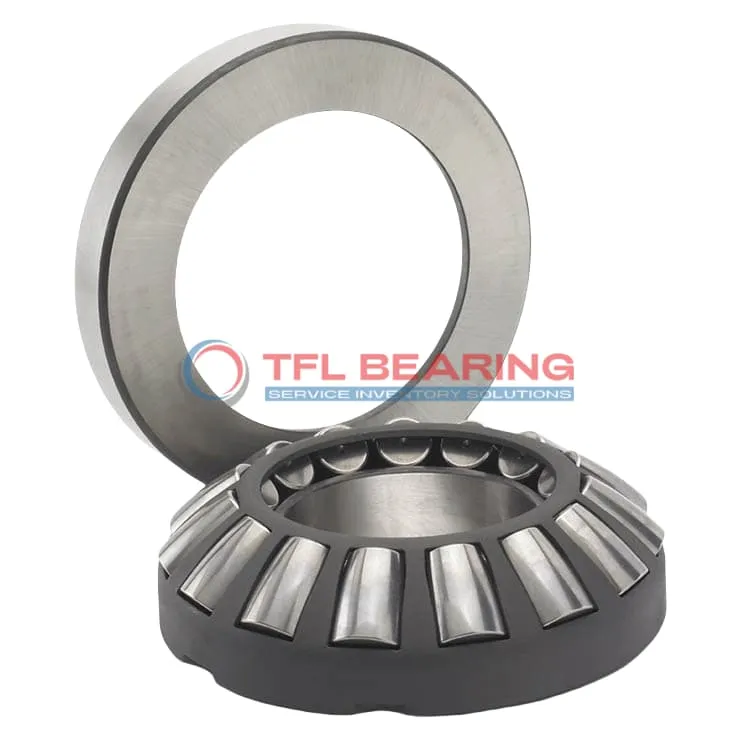

The 29415 E is a spherical roller thrust bearing with a 75mm bore and 160mm outer diameter, built to handle combined loads. It supports dynamic thrust loads up to 134885 lbf and operates smoothly at speeds up to 4000 RPM.

Made from durable steel, its single-row design ensures reliable performance under heavy loads. The bearing requires regular lubrication and works in temperatures from -30°C to 100°C.

Its spherical rollers help accommodate misalignment, making it suitable for demanding applications like heavy machinery or industrial gearboxes. Weighing 4.7kg, it’s robust yet manageable for its size.

Compliant with RoHS and REACH standards, this model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for environments where both thrust and radial loads are present.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29415 E
  • Brand TFL
  • Interchangeable SKF
  • Size 75 mm x 160 mm x 51 mm
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015 to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025 to 0
  • Width 51 mm
  • Outside Diameter(d1) 138 mm
  • Shoulder Diameter Outer Ring (D1) 106 mm
  • Height Shaft Washer Cage(B1) 45.7 mm
  • Height Housing Washer(C) 24.5 mm
  • Distance From Shaft Washer End Side Face To Pressure Point(s) 47 mm
  • Chamfer Dimension Shaft Washer(r1,2) 2 mm
  • System of Measurement Metric
  • Roller Bearing Type Spherical
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Roller Material Steel
  • Cage Material Steel
  • Dynamic Thrust Load 134885 lbf
  • Static Thrust Load 321477 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30 to 100 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.7 kg
  • Height Tolerance -0.125 to 0
  • Price（$） 306

Features

Performance Features of 29415 E Bearing

29415 E Bearing is crafted with steel rollers and cage, offering robust performance under combined loads.
Its dynamic thrust load capacity of 134885 lbf ensures reliability in heavy-duty applications.

The spherical roller design allows for smooth operation, even under misalignment conditions.
With a maximum speed of 4000 rpm, it balances efficiency and durability.

29415 E Bearing operates within a temperature range of -30 to 100 °C, suitable for various environments.
Its single-row construction simplifies installation while maintaining high load-bearing capacity.

Application

Key Fields for 29415 E Bearing
29415 E Bearing is commonly used in heavy machinery like crushers and mining equipment, where its ability to handle combined loads is essential. The steel rollers and cage provide durability in tough operating conditions.

Where Is 29415 E Bearing Used?
You’ll often find 29415 E Bearing in industrial gearboxes and large pumps, thanks to its high dynamic thrust load capacity. Its metric sizing makes it a versatile choice for European and Asian machinery standards.

Built for Heavy-Duty Use: 29415 E Bearing
29415 E Bearing excels in applications like construction equipment, where its spherical roller design accommodates misalignment. The lubrication requirement ensures smooth performance even under continuous use.

Automotive vs Aerospace: Applications of 29415 E Bearing
In automotive systems, 29415 E Bearing supports heavy-duty transmissions, while in aerospace, it’s used in auxiliary equipment. Its temperature range suits both environments, from -30°C to 100°C.

Essential Roles of 29415 E Bearing
29415 E Bearing is a reliable choice for wind turbines, where its static thrust load capacity handles extreme forces. The single-row construction simplifies installation and maintenance.
