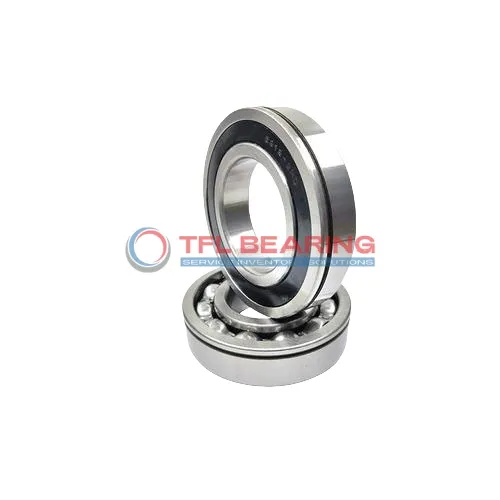

Snap Ring Groove Ball Bearings 6304-2RS1N/C3HT51

Snap Ring Groove Ball Bearings 6304-2RS1N/C3HT51

The 6304-2RS1N/C3HT51 is a sealed snap ring groove ball bearing with a 20mm bore and 52mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 3574 lbf and can spin at speeds up to 14,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance, while the snap ring groove ensures secure fitting. The C3 radial clearance allows for slight thermal expansion.

This bearing works in temperatures from -30°C to 120°C and is interchangeable with SKF models. Ideal for electric motors or pumps where reliable radial load support is needed.

Weighing just 144g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6304-2RS1N/C3HT51
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 52 mm
  • Width Of Snap Ring 1.35 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 3574 lbf
  • Static Radial Load 1765 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 14000 rpm
  • Weight 144 g
  • Price（$） 5
Snap Ring Groove Ball Bearings 6304-2RS1N/C3HT51 dimension drawing
Download DWG Download PDF

Features

How Does 6304-2RS1N/C3HT51 Bearing Resist Wear?

6304-2RS1N/C3HT51 Bearing features chrome steel rings and balls, enhancing its resistance to wear.
The sealed design protects against contaminants, ensuring smooth operation in various conditions.

With a dynamic radial load capacity of 3574 lbf, it handles demanding radial loads effectively.
Its snap ring groove design provides secure mounting, reducing movement and further wear.

The bearing operates efficiently at speeds up to 14,000 rpm, balancing performance and durability.
Its temperature range of -30°C to 120°C makes it suitable for diverse environments.

Application

Industrial Uses of 6304-2RS1N/C3HT51 Bearing
6304-2RS1N/C3HT51 Bearing is commonly used in conveyor systems and industrial fans, where its sealed design protects against dust and debris. The snap ring groove ensures easy installation, saving time during maintenance.

What Makes 6304-2RS1N/C3HT51 Bearing a Preferred Choice?
In automotive applications like electric motors, 6304-2RS1N/C3HT51 Bearing offers reliable performance with its chrome steel construction. Its C3 radial clearance allows for thermal expansion, making it suitable for varying temperatures.

Perfect Fit for Automation: 6304-2RS1N/C3HT51 Bearing
6304-2RS1N/C3HT51 Bearing works well in robotic arms and automated assembly lines due to its high-speed capability. The sealed design also reduces the need for frequent lubrication, lowering maintenance costs.

Medical vs Industrial: Where 6304-2RS1N/C3HT51 Bearing Excels
While 6304-2RS1N/C3HT51 Bearing is robust enough for industrial machinery, its precision makes it ideal for medical devices like lab equipment. The chrome steel cage ensures smooth operation even in high-use environments.

Light-Duty vs Heavy-Duty: Best Uses for 6304-2RS1N/C3HT51 Bearing
For light-duty applications like small electric motors, 6304-2RS1N/C3HT51 Bearing provides quiet and efficient performance. In heavy-duty scenarios, its dynamic load capacity ensures longevity under stress.
