Snap Ring Groove Ball Bearings 6206NR/C3 Q66

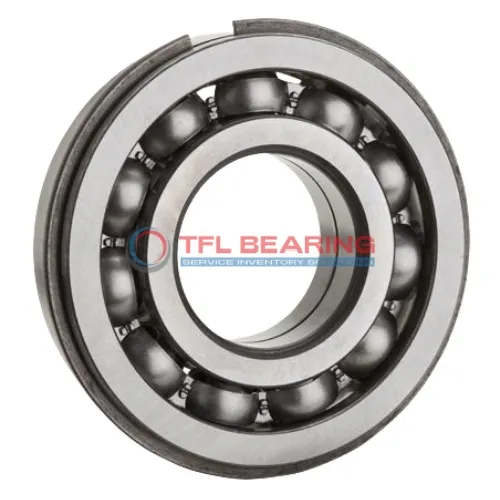

Snap Ring Groove Ball Bearings 6206NR/C3 Q66

The 6206NR/C3 Q66 is a snap ring groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4384 lbf and spins smoothly at speeds up to 11000 RPM.

Its open design and snap ring feature keep it securely in place, while the chrome steel cage ensures durability. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or conveyor systems where radial loads are common.

With a compact width of 16mm and snap ring diameter of 67.7mm, it fits neatly into tight spaces. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206NR/C3 Q66
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01 mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013 mm to 0
  • Width 16 mm
  • Width Tolerance -0.12 mm to 0
  • Outside Diameter Of Snap Ring 67.7 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Price（$） 4.12
Snap Ring Groove Ball Bearings 6206NR/C3 Q66 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6206NR/C3 Q66 Bearing

6206NR/C3 Q66 Bearing features a snap ring groove on the outer ring, ensuring secure mounting in housing.
Its chrome steel construction provides durability and resistance to wear in radial load applications.

The C3 radial clearance allows for thermal expansion, making it suitable for varying operating conditions.
With a dynamic radial load capacity of 4384 lbf, it handles moderate to heavy loads efficiently.

6206NR/C3 Q66 Bearing operates smoothly at speeds up to 11,000 rpm, balancing performance and longevity.
Its open design simplifies lubrication, though it comes without pre-lubrication for custom applications.

The temperature range of -30°C to 120°C ensures reliable performance in diverse environments.
Its snap ring feature reduces the need for additional retaining components, saving installation time.

Application

Common Applications of 6206NR/C3 Q66 Bearing
The 6206NR/C3 Q66 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its snap ring design simplifies installation and maintenance. Its open structure allows for efficient lubrication, ensuring smooth operation in demanding environments.

In automotive applications, 6206NR/C3 Q66 Bearing is often found in wheel hubs and transmissions, providing reliable radial load support. The C3 clearance makes it suitable for applications with thermal expansion or high-speed requirements.

For automation systems, 6206NR/C3 Q66 Bearing works well in robotic arms and conveyor belts, thanks to its durable chrome steel construction. The snap ring feature ensures secure positioning, reducing the risk of misalignment during operation.

In household appliances like washing machines, 6206NR/C3 Q66 Bearing offers quiet and efficient performance. Its metric sizing and compatibility with various brands make it a versatile choice for manufacturers.
