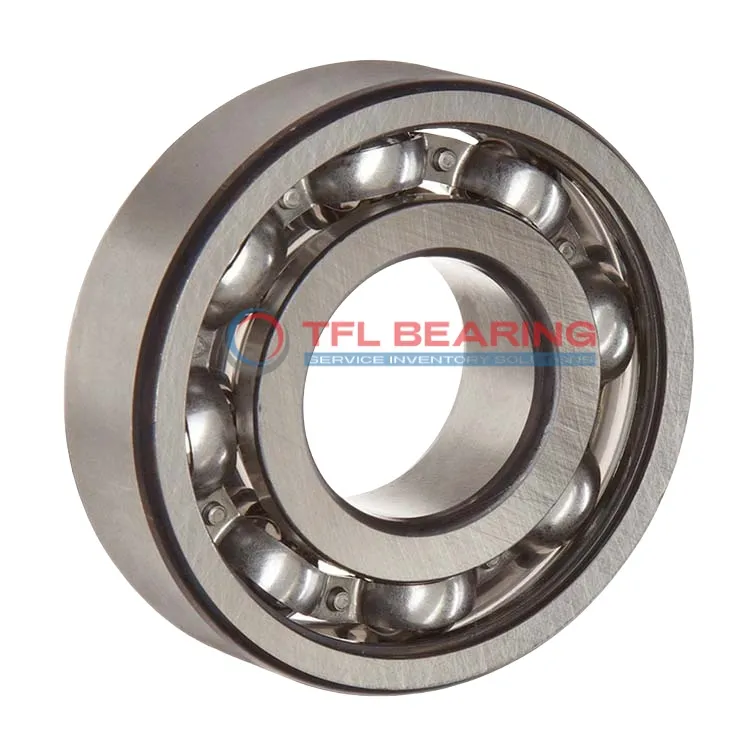

Single Row Deep Groove Ball Bearings With Filling Slots 208/C3

Single Row Deep Groove Ball Bearings With Filling Slots 208/C3

The 208/C3 is a single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7554 lbf and runs smoothly at speeds up to 9500 RPM.

Its open design with filling slots allows for easy lubrication, while the chrome steel cage ensures durability. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 0.39kg, it offers a balance of strength and lightness. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 208/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Grade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7554 lbf
  • Static Radial Load 6070 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 9500 rpm
  • Weight 0.39 kg
  • Price（$） 10.44
Single Row Deep Groove Ball Bearings With Filling Slots 208/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 208/C3 Bearing

208/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 7554 lbf.
Its single-row deep groove design ensures smooth operation, making it suitable for various applications.

The C3 radial clearance provides flexibility in thermal expansion, enhancing performance under varying temperatures.
With a maximum speed of 9,500 rpm, it balances efficiency and durability in demanding conditions.

208/C3 Bearing’s open design simplifies maintenance, reducing downtime and operational costs.
Its robust construction ensures reliable performance even in challenging environments.

Application

Industrial Uses of 208/C3 Bearing
208/C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal allows for easy lubrication, extending its service life in demanding conditions.

In automotive applications, 208/C3 Bearing fits well in components such as alternators and wheel hubs, providing reliable performance under constant motion. Its C3 clearance ensures smooth operation even with thermal expansion.

For automation systems, 208/C3 Bearing supports robotic arms and conveyor belts, thanks to its durable chrome steel construction. The filling slots make it easier to maintain, reducing downtime in production lines.

Where Is 208/C3 Bearing Used?
You’ll often find 208/C3 Bearing in household appliances like washing machines, where its quiet operation and durability are key. The metric sizing ensures compatibility with a wide range of European-designed equipment.

In medical devices, 208/C3 Bearing offers consistent performance in equipment like centrifuges, where precision is critical. The chrome steel cage adds extra resistance to wear, even in high-speed scenarios.
