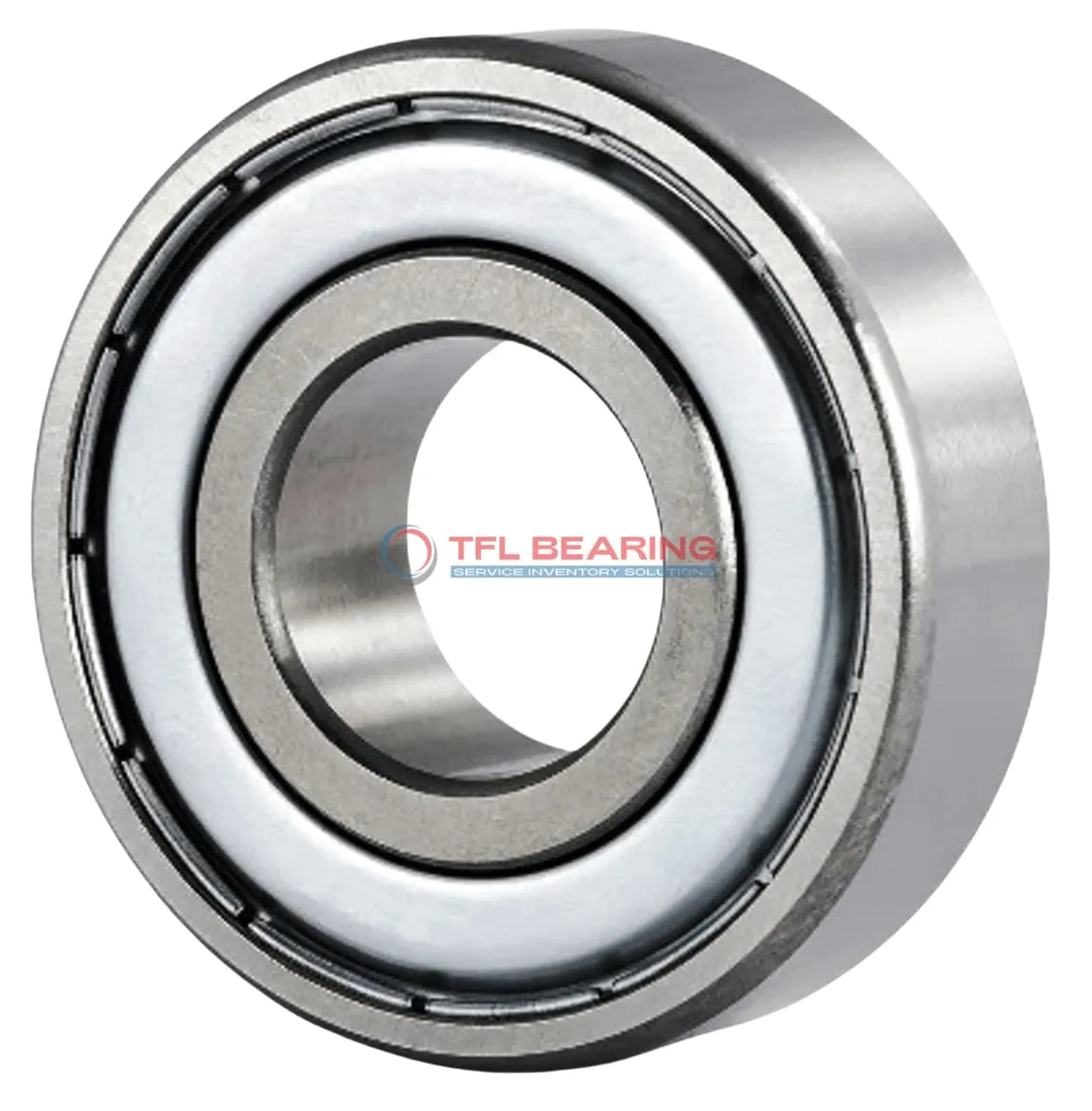

Single Row Deep Groove Ball Bearings With Filling Slots 207-Z

Single Row Deep Groove Ball Bearings With Filling Slots 207-Z

The 207-Z is a single-row deep groove ball bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6182 lbf and operates smoothly at speeds up to 10,000 RPM.

Its shielded design keeps out dust and debris, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical option for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 0.31kg, it’s a balanced choice for medium-duty machinery. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 207-Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Grade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 6182 lbf
  • Static Radial Load 4946 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.31 kg
  • Price（$） 10.23
Single Row Deep Groove Ball Bearings With Filling Slots 207-Z dimension drawing
Download DWG Download PDF

Features

Performance Features of 207-Z Bearing

207-Z Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 6182 lbf, ensuring reliable performance in various applications.

The nylon cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 10,000 rpm, it delivers a balance of durability and efficiency.

207-Z Bearing operates smoothly in temperatures ranging from -30° to 120°C.
Its shielded design helps protect against contaminants, reducing maintenance needs.

Application

Industrial Uses of 207-Z Bearing
207-Z Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The nylon cage reduces friction, making it suitable for continuous operation.

In automotive applications, 207-Z Bearing fits well in components such as alternators and water pumps, thanks to its radial load capacity. Its grease lubrication ensures smooth performance even under varying temperatures.

For home appliances like washing machines, 207-Z Bearing provides quiet and efficient operation. The chrome steel construction offers durability, while the metric sizing ensures compatibility with various models.

Automation & Robotics: Where 207-Z Bearing Shines
207-Z Bearing works effectively in robotic arms and conveyor systems, where precision and reliability are key. Its filling slots allow for easier lubrication, extending service life in high-use environments.

Medical vs Industrial: Where 207-Z Bearing Excels
In medical devices like centrifuges, 207-Z Bearing’s low-noise operation is ideal. For industrial gearboxes, its high-speed capability and radial load handling make it a dependable choice.
