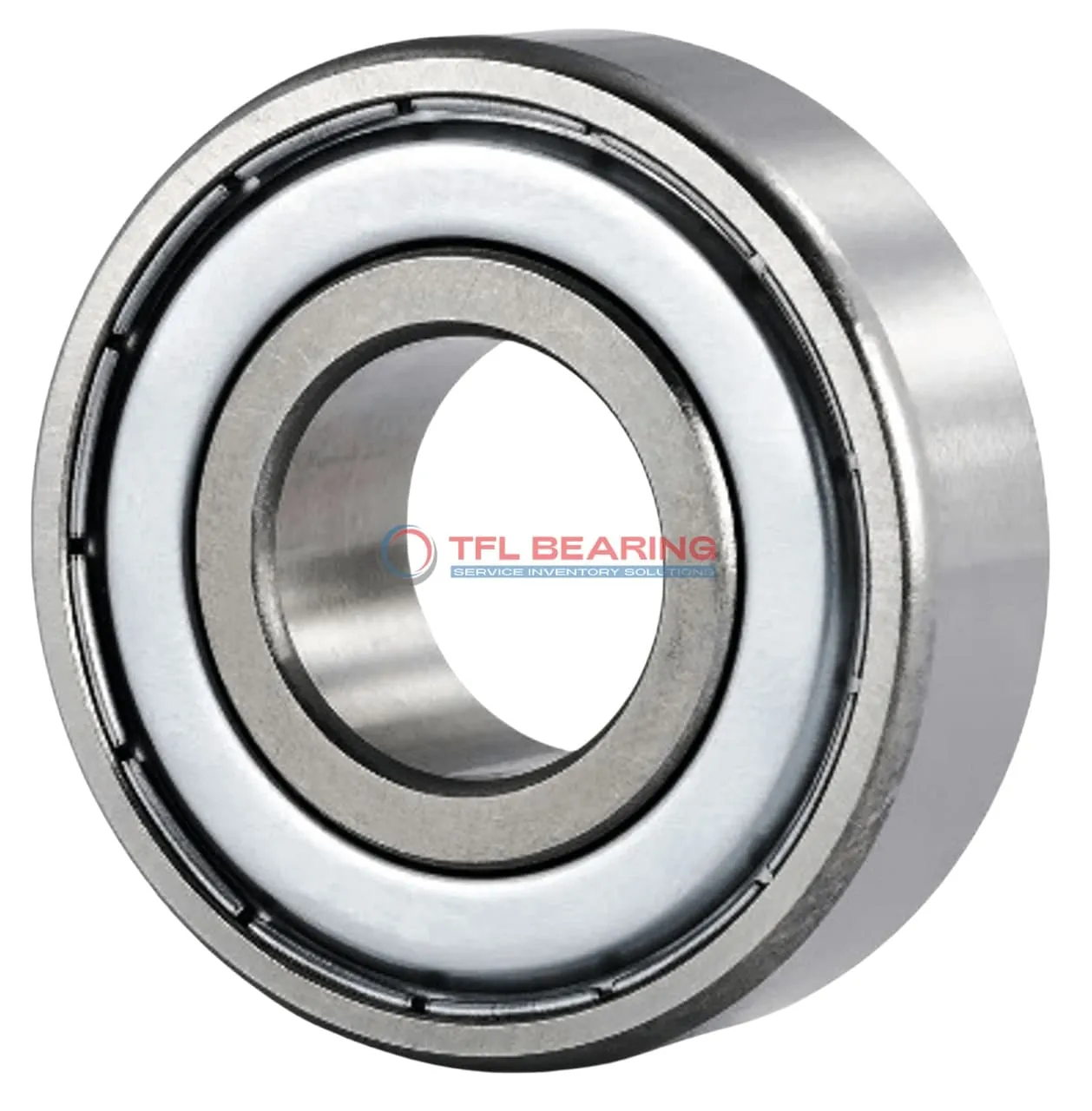

Single Row Deep Groove Ball Bearings With Filling Slots 207-2Z

Single Row Deep Groove Ball Bearings With Filling Slots 207-2Z

The 207-2Z is a single-row deep groove ball bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 6182 lbf and operates smoothly at speeds up to 8000 RPM.

Its shielded design keeps dirt out while the nylon cage reduces friction, ensuring quiet and efficient performance. The bearing works in temperatures from -30°C to 120°C and comes pre-lubricated with grease for easy maintenance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where reliable radial load handling is needed.

Weighing 0.31kg, it’s a durable yet lightweight option. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 207-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Grade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 6182 lbf
  • Static Radial Load 4946 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 0.31 kg
  • Price（$） 10.65
Single Row Deep Groove Ball Bearings With Filling Slots 207-2Z dimension drawing
Download DWG Download PDF

Features

Performance Features of 207-2Z Bearing

207-2Z Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 6182 lbf, ensuring reliable performance in various applications.

The shielded design of 207-2Z Bearing protects against contaminants, extending its service life.
With a maximum speed of 8,000 rpm, it delivers smooth and efficient operation.

207-2Z Bearing operates in temperatures from -30° to 120°C, making it suitable for diverse environments.
The nylon cage reduces friction and noise, enhancing overall performance.

Application

Industrial Uses of 207-2Z Bearing
207-2Z Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The nylon cage reduces friction, making it suitable for continuous operation.

What Makes 207-2Z Bearing a Preferred Choice?
In automotive applications, 207-2Z Bearing fits well in alternators and small gearboxes, thanks to its radial load capacity. The grease lubrication ensures smooth performance even under varying temperatures.

Perfect Fit for Automation: 207-2Z Bearing
For automated systems, 207-2Z Bearing works reliably in conveyor belts and robotic arms. Its compact size and shielded seals make it ideal for dust-prone environments.

Medical vs Industrial: Where 207-2Z Bearing Excels
In medical devices, 207-2Z Bearing offers quiet operation for equipment like centrifuges. Meanwhile, in industrial settings, its durability shines in heavy machinery requiring consistent radial support.
