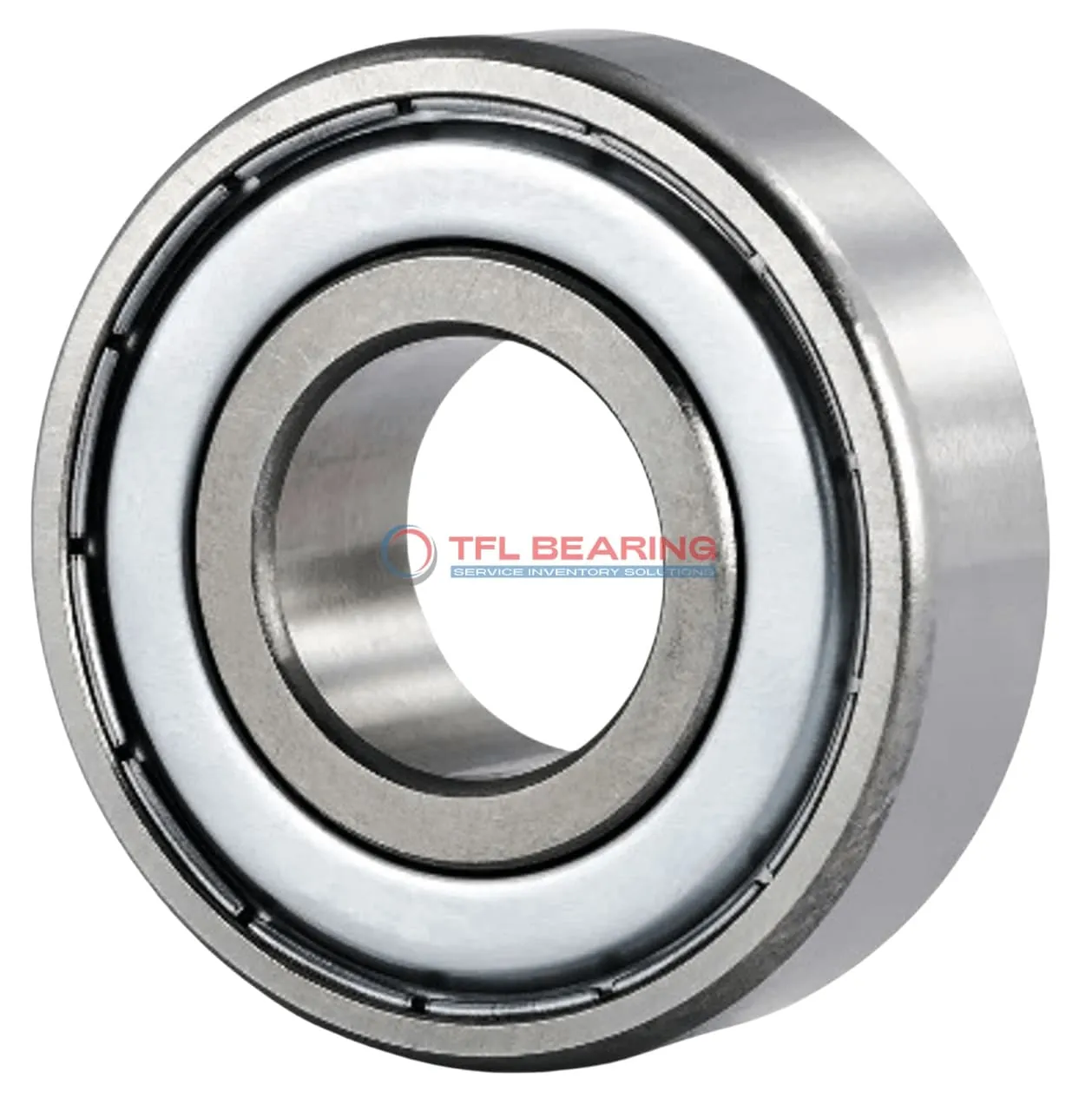

Single Row Deep Groove Ball Bearings With Filling Slots 206-Z

Single Row Deep Groove Ball Bearings With Filling Slots 206-Z

The 206-Z is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4699 lbf and spins smoothly at speeds up to 12,000 RPM.

Its shielded design keeps dirt out while the nylon cage reduces friction for quieter operation. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for electric motors or pumps where radial loads are common.

Weighing 0.21kg, it’s lightweight yet durable. Pre-greased and compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 206-Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Grade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 4699 lbf
  • Static Radial Load 3664 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.21 kg
  • Price（$） 8.24
Single Row Deep Groove Ball Bearings With Filling Slots 206-Z dimension drawing
Download DWG Download PDF

Features

Performance Features of 206-Z Bearing

206-Z Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4699 lbf, making it suitable for various applications.

The nylon cage in 206-Z Bearing ensures smooth operation and reduces noise during use.
With a maximum speed of 12,000 rpm, it delivers both durability and efficiency.

206-Z Bearing operates effectively in temperatures ranging from -30° to 120°C.
Its shielded design helps keep contaminants out, extending its service life.

The grease lubrication in 206-Z Bearing reduces maintenance needs and ensures consistent performance.
Its precise dimensions and tolerances make it easy to install and replace.

Application

Industrial Uses of 206-Z Bearing
206-Z Bearing is commonly used in conveyor systems and machine tools, where its shielded design helps keep contaminants out while maintaining smooth operation. The nylon cage reduces friction, making it suitable for continuous use in industrial settings.

In automotive applications, 206-Z Bearing fits well in electric motors and gearboxes, providing reliable radial load support. Its grease lubrication ensures long-lasting performance even under varying temperatures.

For household appliances like washing machines, 206-Z Bearing offers quiet and efficient operation. The chrome steel construction adds durability, making it a dependable choice for everyday use.

Where Is 206-Z Bearing Used?
You’ll often find 206-Z Bearing in industrial fans and pumps, where its high-speed capability and radial load handling are key. The metric sizing makes it easy to replace in existing setups.

In robotics, 206-Z Bearing works well in joint mechanisms due to its balanced load capacity and smooth rotation. The shielded design also helps protect against dust in automated environments.
