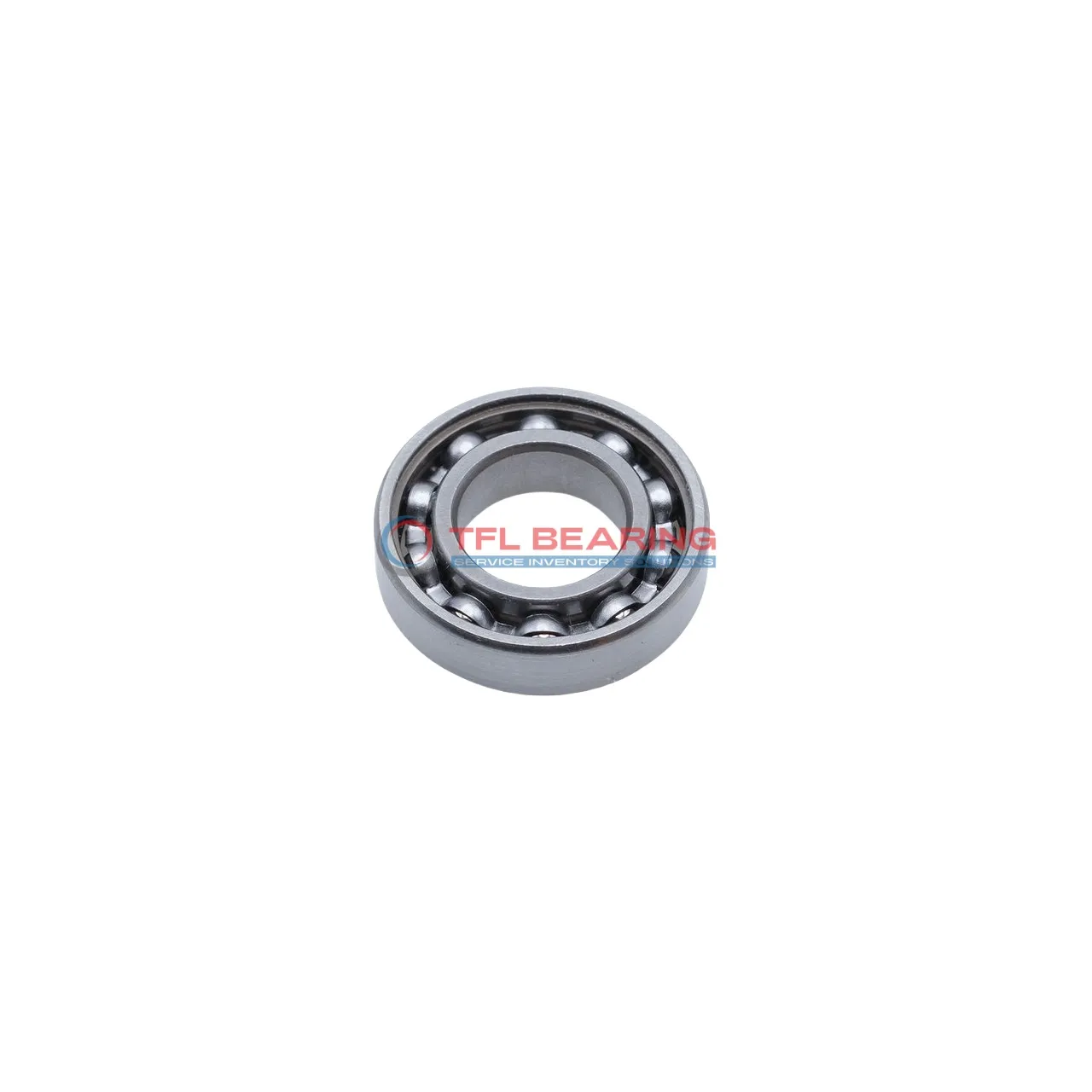

Single Row Deep Groove Ball Bearings EE 2 TN9

Single Row Deep Groove Ball Bearings EE 2 TN9

The EE 2 TN9 is a compact single-row deep groove ball bearing, measuring 0.25″ by 0.75″ by 0.21874″. Made from chrome steel with a nylon cage, it’s built to handle radial loads up to 632 lbf.

Its open design allows for easy lubrication and maintenance, while the P6 tolerance ensures precise operation. The bearing can spin at speeds up to 50,000 RPM, making it suitable for high-speed applications.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It performs well in temperatures ranging from -30°C to 120°C.

Weighing just 0.0075kg, it’s lightweight yet durable. Ideal for small machinery or precision instruments where space and performance are key. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE 2 TN9
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 0.25"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.75"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.21874"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 632 lbf
  • Static Radial Load 243 lbf
  • Max Speed 50000 rpm
  • Weight 0.0075 kg
  • price（$） 3.105
Single Row Deep Groove Ball Bearings EE 2 TN9 dimension drawing
Download DWG Download PDF

Features

Why Choose EE 2 TN9 Bearing for Precision Tasks?

EE 2 TN9 Bearing features a single row deep groove design, ideal for handling radial loads with precision.
Its chrome steel rings and balls provide durability, while the nylon cage ensures smooth operation.

With a dynamic radial load capacity of 632 lbf, it performs reliably in various applications.
The tight tolerances and high-speed capability of 50,000 rpm make it suitable for precision instruments.

EE 2 TN9 Bearing operates efficiently within a temperature range of -30° to 120°C.
Its open design simplifies maintenance, reducing downtime and operational costs.

Application

Industrial Uses of EE 2 TN9 Bearing
EE 2 TN9 Bearing is commonly used in machine tools and conveyor systems, where its single-row design handles radial loads efficiently. The open seal type allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, EE 2 TN9 Bearing fits well in gearboxes and electric motors, providing smooth performance. Its inch sizing ensures compatibility with a variety of vehicle models, particularly in North American markets.

For automation systems, EE 2 TN9 Bearing’s nylon cage reduces friction in robotic arms and 3D printers. The chrome steel construction ensures durability, even in continuous use scenarios.

Where Is EE 2 TN9 Bearing Used?
EE 2 TN9 Bearing is ideal for small electric motors in household appliances like fans and power tools. Its compact size and high-speed capability make it a reliable choice for everyday devices.

In industrial settings, EE 2 TN9 Bearing supports light-duty machinery, where precision and low maintenance are key. The P6 tolerance class ensures consistent performance in demanding environments.
