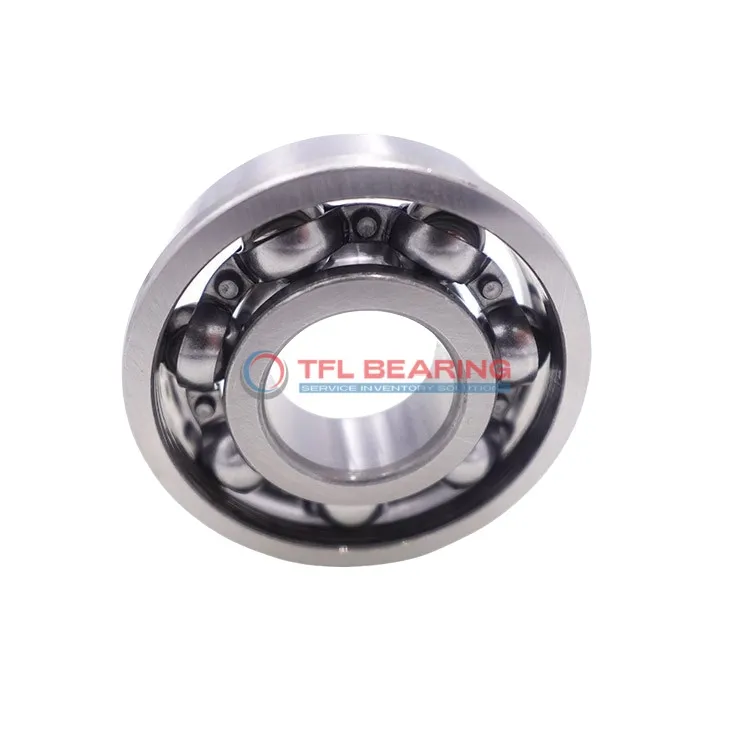

Single Row Deep Groove Ball Bearings 6317 Y/C782

Single Row Deep Groove Ball Bearings 6317 Y/C782

The 6317 Y/C782 is a single-row deep groove ball bearing with an 85mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 21762 lbf and operates smoothly at speeds up to 3800 RPM.

Its open design simplifies maintenance, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 4220g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6317 Y/C782
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 41 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 299 lbf
  • Static Radial Load 21762 lbf
  • Max Speed 3800 rpm
  • Weight 4220 g
  • price（$） 313.902
Single Row Deep Groove Ball Bearings 6317 Y/C782 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6317 Y/C782 Bearing

6317 Y/C782 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 299 lbf, ensuring reliable performance in various applications.

The single-row deep groove design enhances stability and reduces friction during operation.
With a maximum speed of 3,800 rpm, it balances durability and efficiency for industrial use.

6317 Y/C782 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open seal design allows for easy maintenance and inspection when needed.

Application

Industrial Uses of 6317 Y/C782 Bearing
The 6317 Y/C782 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. Its open design simplifies lubrication and maintenance, ideal for continuous operation.

In automotive applications, 6317 Y/C782 Bearing fits well in wheel hubs and transmissions, offering durability under varying loads. The metric dimensions make it compatible with many vehicle designs, ensuring easy integration.

For automation systems, 6317 Y/C782 Bearing supports robotic arms and conveyor belts, providing smooth movement. Its chrome steel construction enhances longevity, even in high-speed environments.

Household appliances like washing machines benefit from 6317 Y/C782 Bearing’s quiet operation and resistance to wear. The balanced design reduces vibration, improving overall efficiency.

Medical imaging devices rely on 6317 Y/C782 Bearing for precise motion control. Its consistent performance and temperature tolerance make it suitable for sensitive equipment.
