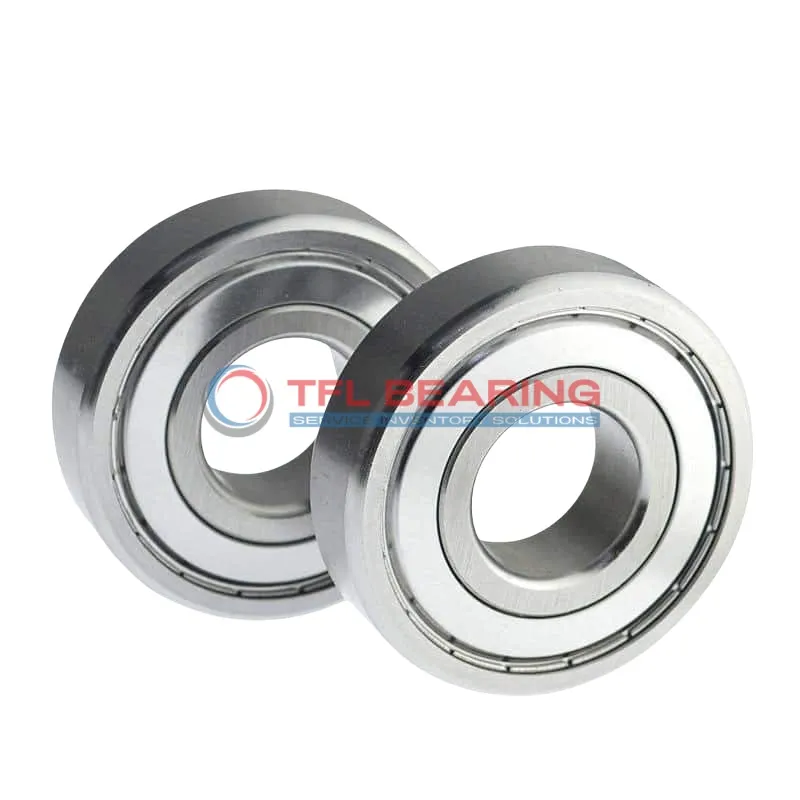

Single Row Deep Groove Ball Bearings 6307-2Z/HC5C3GJN

Single Row Deep Groove Ball Bearings 6307-2Z/HC5C3GJN

The 6307-2Z/HC5C3GJN is a single-row deep groove ball bearing with a 35mm bore and 80mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 7509 lbf and operates smoothly at speeds up to 8500 RPM.

Its shielded design keeps contaminants out while the silicon nitride balls reduce friction for quieter performance. The bearing works well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where reliable radial load support is needed.

Weighing 457g, it offers a sturdy build for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6307-2Z/HC5C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 21 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Silicon Nitride(Si3N4)
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7509 lbf
  • Static Radial Load 4339 lbf
  • Max Speed 8500 rpm
  • Weight 457 g
  • price（$） 124.47
Single Row Deep Groove Ball Bearings 6307-2Z/HC5C3GJN dimension drawing
Download DWG Download PDF

Features

Why Choose 6307-2Z/HC5C3GJN Bearing for Precision Tasks?

6307-2Z/HC5C3GJN Bearing features silicon nitride balls, which reduce friction and enhance precision in radial applications.

Its shielded design protects against contaminants, ensuring smooth operation in various environments.

With a dynamic radial load capacity of 7509 lbf, it handles demanding tasks efficiently.

The bearing operates smoothly at speeds up to 8,500 rpm, making it suitable for high-performance machinery.

Application

Industrial Uses of 6307-2Z/HC5C3GJN Bearing
This bearing is commonly used in conveyor systems and electric motors, where its shielded design helps keep contaminants out. The silicon nitride balls provide smooth rotation, making it suitable for continuous operation.

Where Is 6307-2Z/HC5C3GJN Bearing Used?
You’ll often find this bearing in automotive applications like alternators and water pumps, thanks to its radial load capacity. The C3 clearance ensures reliable performance even under varying temperatures.

Perfect Fit for Automation: 6307-2Z/HC5C3GJN Bearing
In robotic arms and assembly line equipment, this bearing’s chrome steel construction offers durability. Its ABEC 1 tolerance makes it a cost-effective choice for precision tasks.

Light-Duty vs Heavy-Duty: Best Uses for 6307-2Z/HC5C3GJN Bearing
For light-duty applications like office printers, the bearing’s shielded design prevents dust buildup. In heavier machinery, its dynamic load rating ensures long service life.

Essential Roles of 6307-2Z/HC5C3GJN Bearing
This bearing is ideal for household appliances like washing machines, where quiet operation matters. The metric sizing makes it easy to replace in European-designed equipment.
