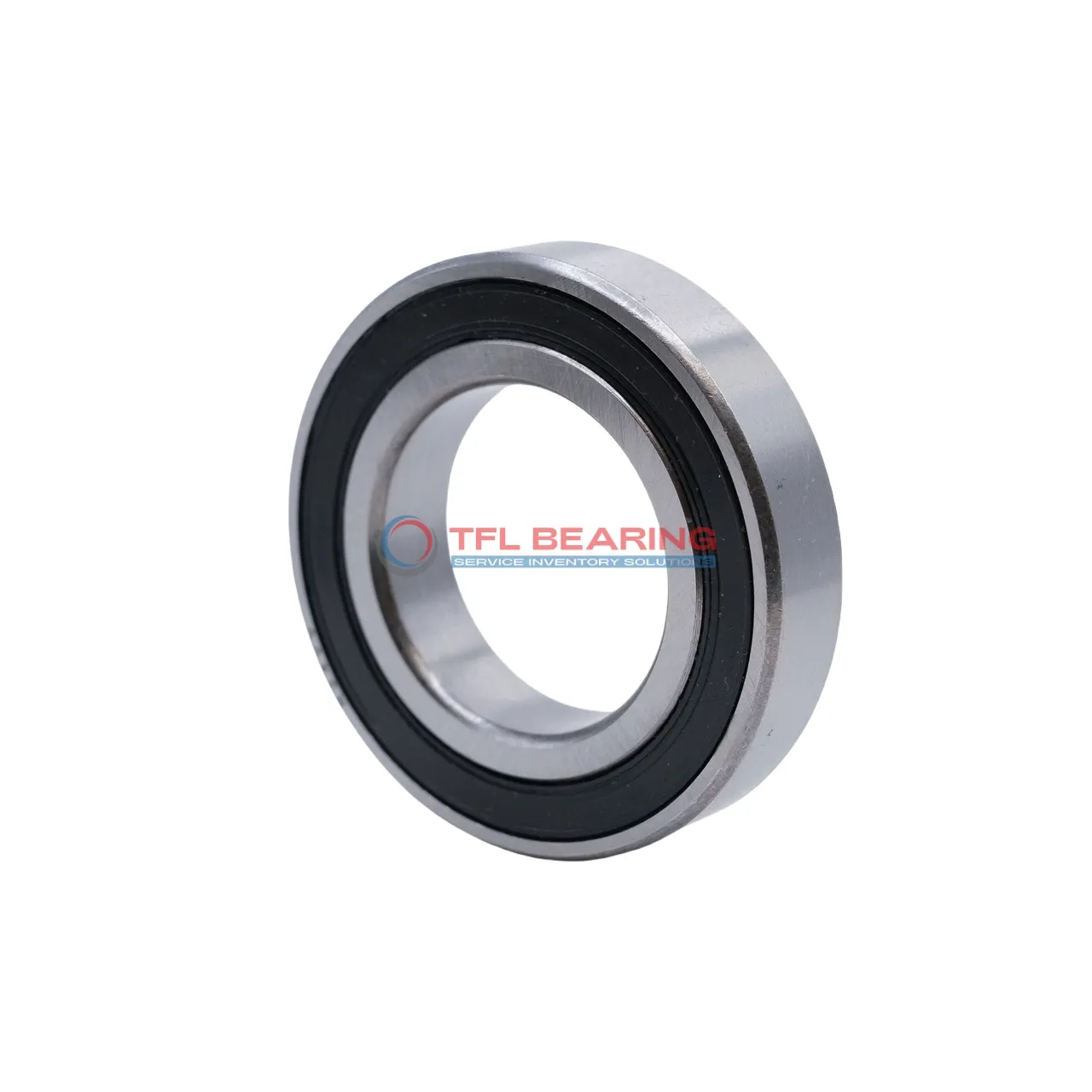

Single Row Deep Groove Ball Bearings 6307-2RS1/W64F

Single Row Deep Groove Ball Bearings 6307-2RS1/W64F

The 6307-2RS1/W64F is a single-row deep groove ball bearing with a 35mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7509 lbf and operates smoothly at speeds up to 8500 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long service life without frequent maintenance. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for electric motors, pumps, or gearboxes where radial loads are common.

Weighing 457g, it’s a robust yet manageable size for various industrial uses. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6307-2RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 21 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7509 lbf
  • Static Radial Load 4339 lbf
  • Max Speed 8500 rpm
  • Weight 457 g
  • price（$） 15.561
Single Row Deep Groove Ball Bearings 6307-2RS1/W64F dimension drawing
Download DWG Download PDF

Features

How Does 6307-2RS1/W64F Bearing Reduce Friction?

6307-2RS1/W64F Bearing features a deep groove design, optimised for smooth radial load distribution.
The sealed construction prevents contamination, ensuring consistent performance over time.

Its chrome steel rings and balls reduce friction, enhancing efficiency in various applications.
Solid oil lubrication further minimises wear, extending the bearing’s operational life.

With a maximum speed of 8,500 rpm, it balances high performance and durability.
The temperature range of -30°C to 120°C makes it suitable for diverse environments.

Application

Common Applications of 6307-2RS1/W64F Bearing
This bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. The solid oil lubrication ensures smooth operation even in dusty environments.

Where Is 6307-2RS1/W64F Bearing Used?
You’ll often find it in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. The chrome steel construction also makes it durable under constant use.

Ideal for Precision: 6307-2RS1/W64F Bearing
In automation equipment, this bearing supports precise movements in conveyor systems and robotic arms. Its ABEC 1 tolerance ensures consistent performance without needing frequent adjustments.

Automotive vs Industrial: Applications of 6307-2RS1/W64F Bearing
While it excels in car components like fans and transmissions, it’s equally handy in industrial gearboxes. The wide temperature range makes it adaptable to various operating conditions.

Perfect Fit for Automation: 6307-2RS1/W64F Bearing
For household appliances like washing machines, this bearing offers quiet and efficient performance. The sealed design is particularly useful in preventing grease leakage over time.
