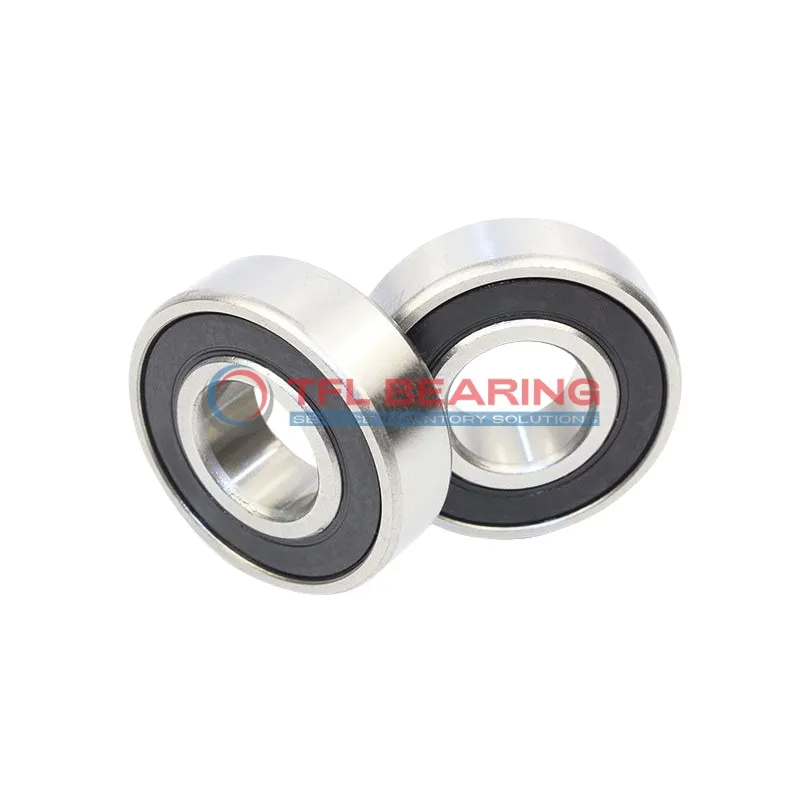

Single Row Deep Groove Ball Bearings 625-RZTN9/CNHVT105B

Single Row Deep Groove Ball Bearings 625-RZTN9/CNHVT105B

The 625-RZTN9/CNHVT105B is a compact single-row deep groove ball bearing, measuring 5mm in bore and 16mm in outer diameter. Its sealed design keeps out dust and dirt, making it low-maintenance for everyday use.

Made from chrome steel with a nylon cage, it handles radial loads up to 331 lbf and spins smoothly at speeds up to 36,000 RPM. The bearing performs well in temperatures ranging from -30°C to 120°C.

Its ABEC 1 tolerance ensures reliable performance for general applications. The lightweight design, at just 4.95g, makes it easy to handle and install.

Ideal for small motors, appliances, or machinery where space is limited but smooth rotation is needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 625-RZTN9/CNHVT105B
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 16 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 331 lbf
  • Static Radial Load 122 lbf
  • Max Speed 36000 rpm
  • Weight 4.95 g
  • price（$） 1.872
Single Row Deep Groove Ball Bearings 625-RZTN9/CNHVT105B dimension drawing
Download DWG Download PDF

Features

Performance Features of 625-RZTN9/CNHVT105B Bearing

625-RZTN9/CNHVT105B Bearing is designed with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 331 lbf, making it suitable for various applications.

The sealed design of 625-RZTN9/CNHVT105B Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 36,000 rpm, it ensures smooth and efficient operation.

625-RZTN9/CNHVT105B Bearing’s nylon cage reduces friction and noise, improving performance.
Its compact size of 5 mm×16 mm×5 mm makes it ideal for space-constrained applications.

Application

Common Applications of 625-RZTN9/CNHVT105B Bearing
In small electric motors, 625-RZTN9/CNHVT105B Bearing is a reliable choice due to its compact size and sealed design, which keeps out dust and debris. The nylon cage also helps reduce noise, making it ideal for quiet operation.

Where Is 625-RZTN9/CNHVT105B Bearing Used?
You’ll often find 625-RZTN9/CNHVT105B Bearing in household appliances like fans and blenders, where its radial load capacity ensures smooth performance. Its metric sizing makes it easy to replace in most European and Asian models.

Designed for Versatility: 625-RZTN9/CNHVT105B Bearing
This bearing works well in light-duty industrial equipment, such as conveyor rollers, thanks to its chrome steel construction. The sealed design also extends its lifespan in dusty environments.

Automotive vs Industrial: Applications of 625-RZTN9/CNHVT105B Bearing
In automotive applications, 625-RZTN9/CNHVT105B Bearing is used in small gearboxes and electric window mechanisms. For industrial use, it’s a go-to for low-load machinery where space is limited.
