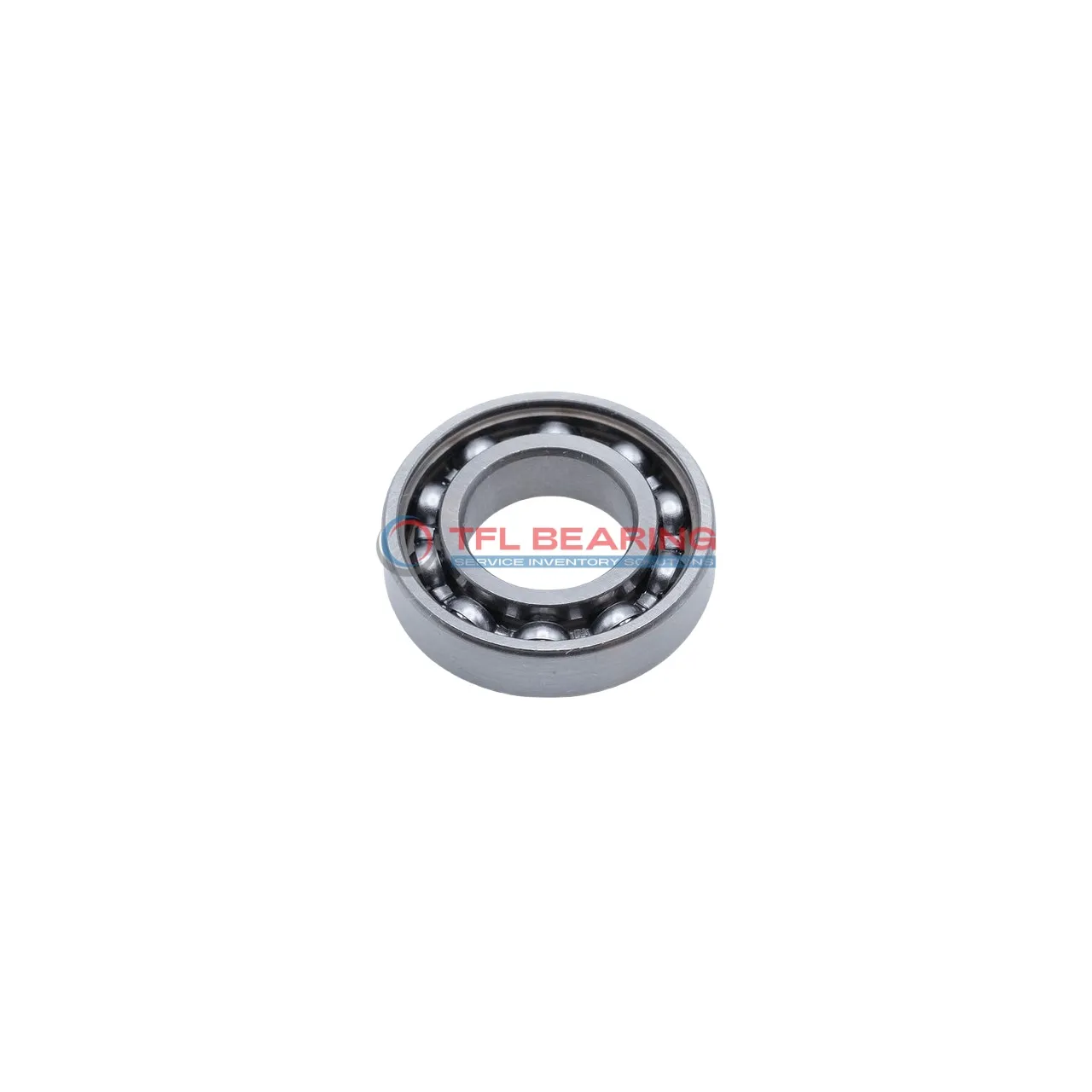

Single Row Deep Groove Ball Bearings 6209/C5

Single Row Deep Groove Ball Bearings 6209/C5

The 6209/C5 is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for applications like electric motors or pumps where radial loads are predominant.

Weighing 407g, it balances strength and lightness. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209/C5
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C5
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Max Speed 7700 rpm
  • Weight 407 g
  • price（$） 7.479
Single Row Deep Groove Ball Bearings 6209/C5 dimension drawing
Download DWG Download PDF

Features

How Does 6209/C5 Bearing Reduce Friction?

6209/C5 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its chrome steel construction ensures durability while minimising friction during operation.

The C5 radial clearance allows for better thermal expansion handling, maintaining performance under varying temperatures.
With a dynamic radial load capacity of 7351 lbf, it offers reliable operation in diverse applications.

6209/C5 Bearing operates efficiently at speeds up to 7,700 rpm, balancing speed and longevity.
Its open design simplifies maintenance while the chrome steel cage keeps balls precisely aligned.

Application

Industrial Uses of 6209/C5 Bearing
6209/C5 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, extending its service life in demanding environments.

What Makes 6209/C5 Bearing a Preferred Choice?
In automotive applications, 6209/C5 Bearing fits well in wheel hubs and transmissions, offering reliable performance under varying speeds. Its chrome steel construction provides durability, making it suitable for long-term use.

Perfect Fit for Automation: 6209/C5 Bearing
For automated systems, 6209/C5 Bearing works efficiently in conveyor belts and robotic arms, thanks to its precise tolerance class. The C5 clearance ensures minimal friction, enhancing overall system performance.

Medical vs Industrial: Where 6209/C5 Bearing Excels
While 6209/C5 Bearing is robust enough for industrial gearboxes, it also meets the precision needs of medical devices like centrifuges. The temperature range makes it adaptable to different operating conditions.

Where to Use 6209/C5 Bearing
In household appliances like washing machines, 6209/C5 Bearing provides quiet and reliable operation. Its metric sizing ensures compatibility with a wide range of consumer products.
