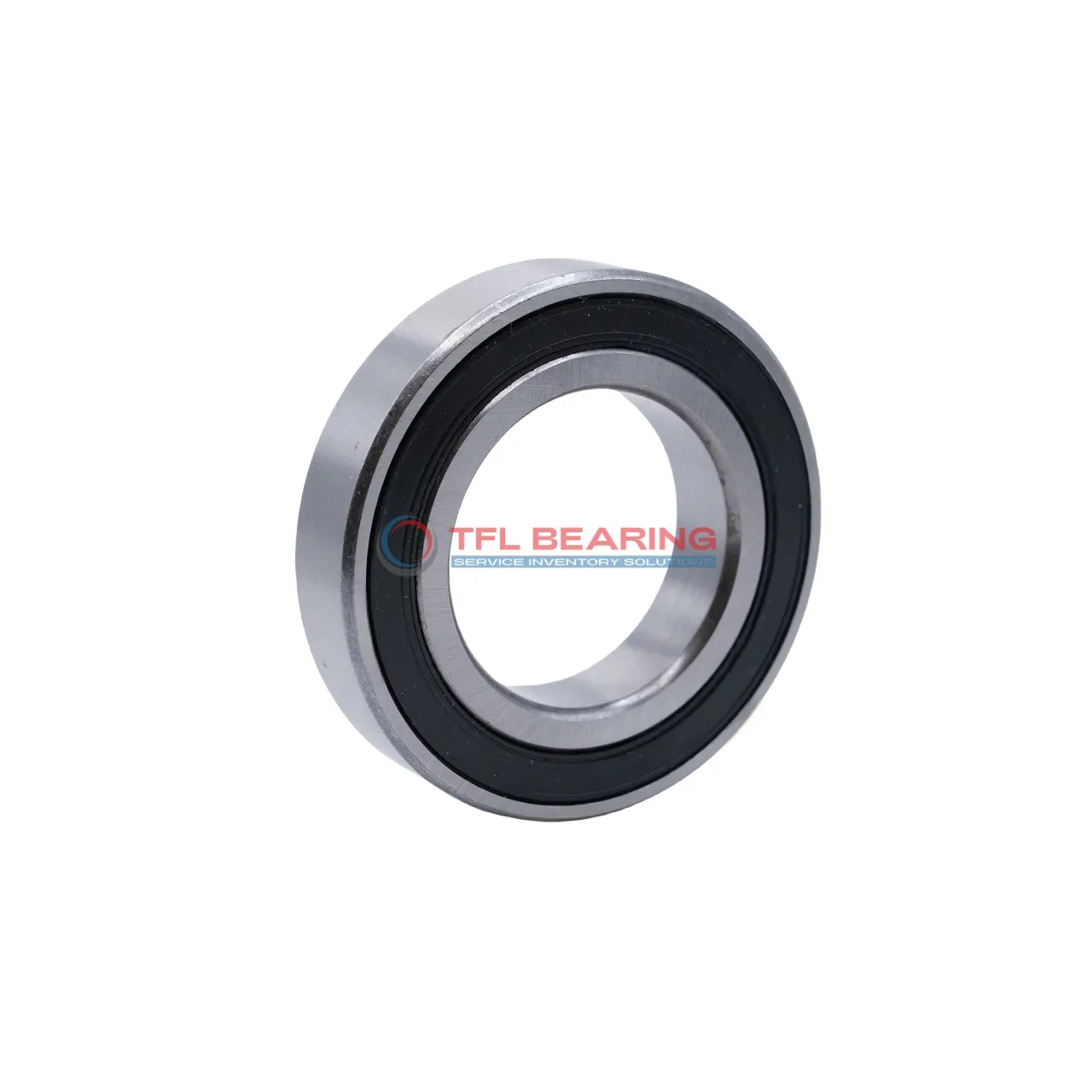

Single Row Deep Groove Ball Bearings 6208-2RS1TN9/C3

Single Row Deep Groove Ball Bearings 6208-2RS1TN9/C3

The 6208-2RS1TN9/C3 is a single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6542 lbf and runs smoothly at speeds up to 8300 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The nylon cage reduces friction and noise, ideal for quieter operation.

With a C3 radial clearance, it accommodates slight misalignments and thermal expansion. Suitable for temperatures from -30°C to 120°C, it works well in varied environments.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Perfect for electric motors, pumps, or industrial gearboxes where reliability is key. Weighing 366g, it’s lightweight yet durable for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208-2RS1TN9/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 4002 lbf
  • Max Speed 8300 rpm
  • Weight 366 g
  • price（$） 9.072

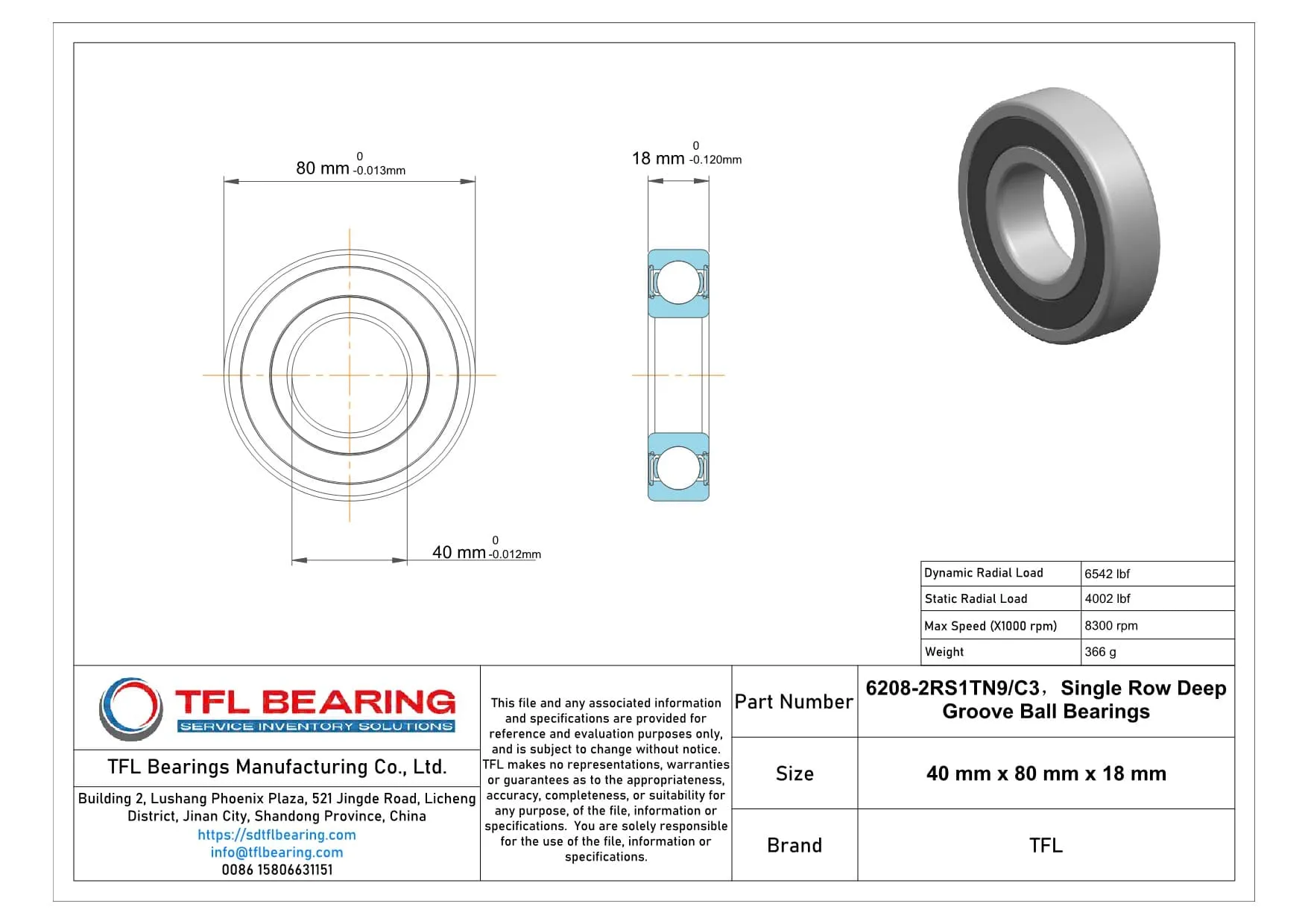

Single Row Deep Groove Ball Bearings 6208-2RS1TN9/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6208-2RS1TN9/C3 Bearing

6208-2RS1TN9/C3 Bearing features a sealed design, protecting it from dust and moisture for reliable operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The nylon cage in 6208-2RS1TN9/C3 Bearing reduces friction and noise, making it suitable for quiet environments.
With a dynamic radial load capacity of 6542 lbf, it handles demanding conditions with ease.

6208-2RS1TN9/C3 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its C3 radial clearance provides optimal performance under varying thermal conditions.

The sealed design of 6208-2RS1TN9/C3 Bearing minimises maintenance needs, saving time and costs.
Its ABEC 1 tolerance ensures consistent performance for standard precision applications.

Application

Common Applications of 6208-2RS1TN9/C3 Bearing
In industrial settings, 6208-2RS1TN9/C3 Bearing is widely used in electric motors and pumps, thanks to its sealed design which keeps contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6208-2RS1TN9/C3 Bearing Used?
You’ll often find 6208-2RS1TN9/C3 Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed construction are key. The nylon cage reduces noise, making it ideal for quieter operations.

Built for Heavy-Duty Use: 6208-2RS1TN9/C3 Bearing
This bearing excels in conveyor systems and agricultural machinery, handling radial loads with ease. Its chrome steel construction ensures durability, even in dusty or humid environments.

Automotive vs Industrial: Applications of 6208-2RS1TN9/C3 Bearing
In cars, 6208-2RS1TN9/C3 Bearing supports smooth rotation in wheel hubs, while in factories, it’s a go-to for gearboxes. The metric sizing and ABEC 1 tolerance make it versatile across both sectors.

Perfect Fit for Automation: 6208-2RS1TN9/C3 Bearing
Robotic arms and packaging machines benefit from 6208-2RS1TN9/C3 Bearing’s consistent performance and low maintenance. The sealed design keeps lubrication in and dirt out, extending service life.
