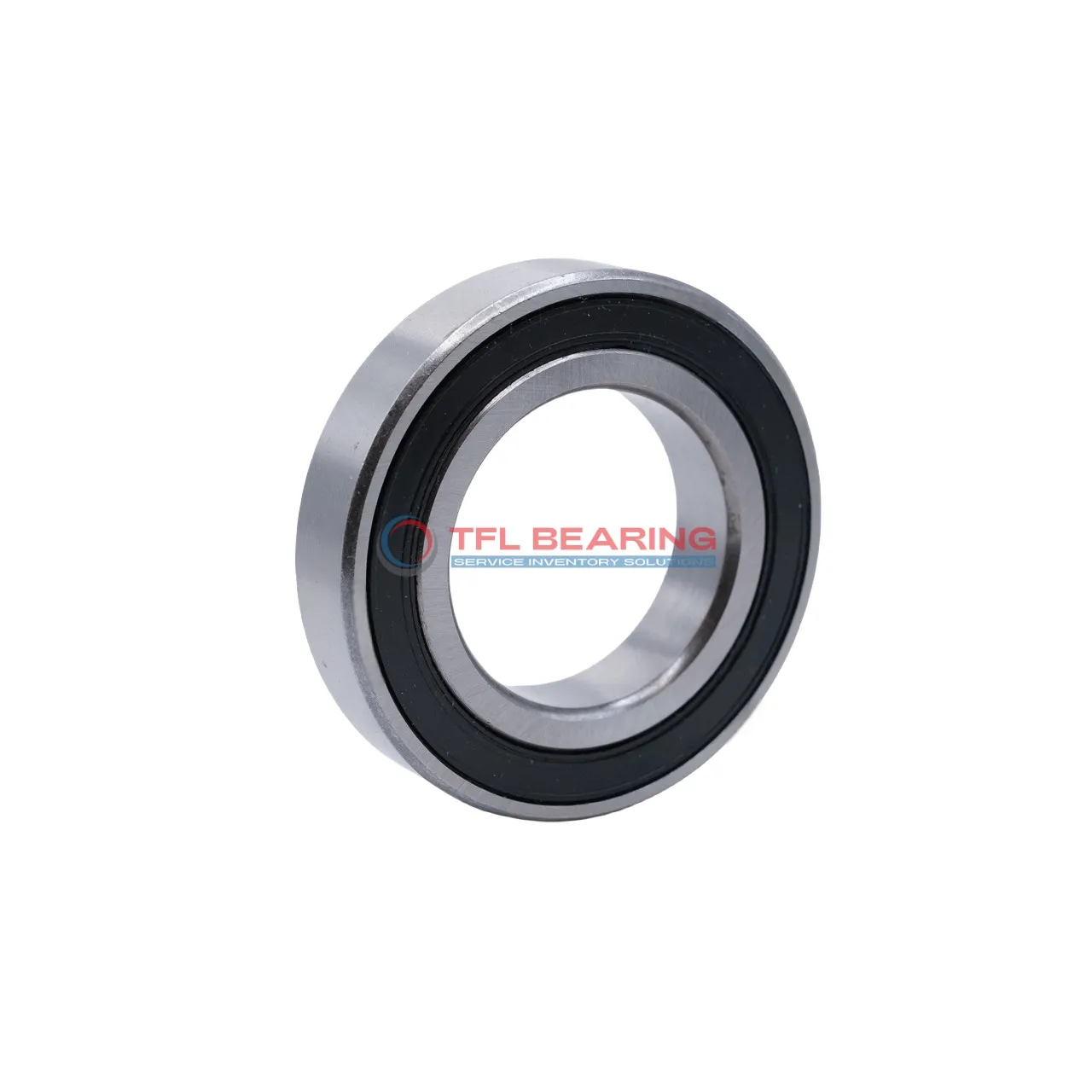

Single Row Deep Groove Ball Bearings 6208-2RS1/W64VK121

Single Row Deep Groove Ball Bearings 6208-2RS1/W64VK121

The 6208-2RS1/W64VK121 is a single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6542 lbf and spins smoothly at speeds up to 8300 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where reliable radial load support is needed.

Weighing 366g, it’s a robust yet manageable size for various industrial uses. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208-2RS1/W64VK121
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 4002 lbf
  • Max Speed 8300 rpm
  • Weight 366 g
Single Row Deep Groove Ball Bearings 6208-2RS1/W64VK121 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6208-2RS1/W64VK121 Bearing

6208-2RS1/W64VK121 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 6542 lbf, ensuring reliable performance in various applications.

The sealed design and solid oil lubrication reduce maintenance needs, making it suitable for long-term use.
With a maximum speed of 8,300 rpm, it balances efficiency and durability.

6208-2RS1/W64VK121 Bearing operates in temperatures from -30°C to 120°C, adapting to different environments.
Its precision construction meets ABEC 1 and ISO P0 standards, ensuring consistent performance.

Application

Common Applications of 6208-2RS1/W64VK121 Bearing
6208-2RS1/W64VK121 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design keeps contaminants out. The solid oil lubrication ensures long service life even in dusty environments.

In automotive applications, 6208-2RS1/W64VK121 Bearing can be found in alternators and water pumps, providing reliable performance under radial loads. Its metric sizing makes it a versatile choice for various vehicle models.

For household appliances like washing machines, 6208-2RS1/W64VK121 Bearing offers quiet operation and durability. The chrome steel construction handles everyday wear and tear with ease.

In automation systems, 6208-2RS1/W64VK121 Bearing supports smooth movement in conveyor belts and robotic arms. The ABEC 1 tolerance ensures consistent performance in precision applications.
