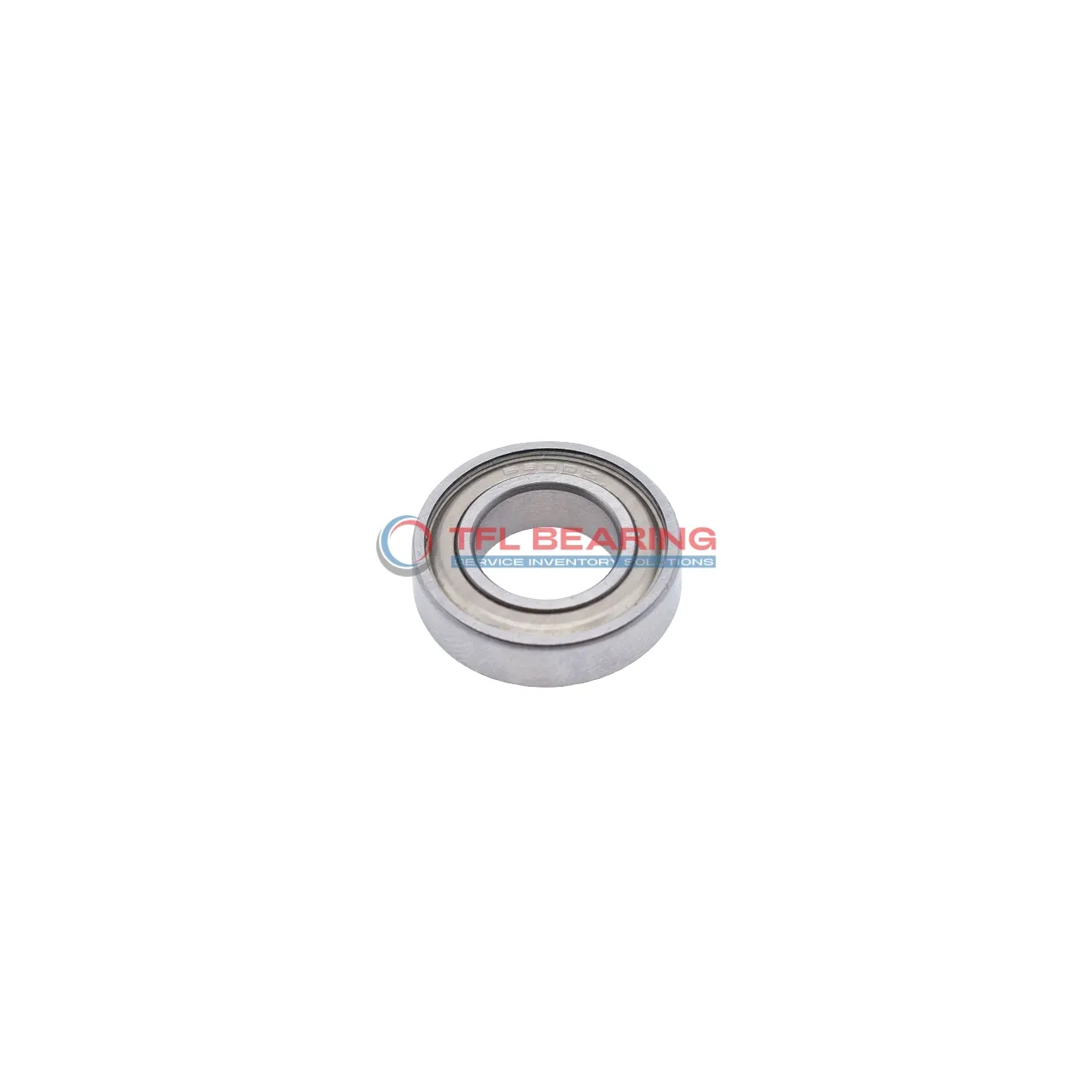

Single Row Deep Groove Ball Bearings 608-2Z/LHT23/344448

Single Row Deep Groove Ball Bearings 608-2Z/LHT23/344448

The 608-2Z is a compact single-row deep groove ball bearing, measuring 8mm in bore and 22mm in outer diameter, with a width of just 7mm. Made from durable chrome steel, it’s built to handle radial loads up to 630 lbf.

Its shielded design keeps dirt out while maintaining smooth operation at speeds up to 34,000 RPM. The bearing works reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s ideal for small machinery, skateboards, or electric motors where space is limited.

Weighing only 11.8g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-2Z/LHT23/344448
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g
Single Row Deep Groove Ball Bearings 608-2Z/LHT23/344448 dimension drawing
Download DWG Download PDF

Features

Performance Features of 608-2Z/LHT23/344448 Bearing

608-2Z/LHT23/344448 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 630 lbf, making it suitable for various applications.

The shielded design of 608-2Z/LHT23/344448 Bearing helps keep contaminants out, ensuring smoother operation.
With a maximum speed of 34,000 rpm, it balances durability and high-speed performance.

608-2Z/LHT23/344448 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its compact size of 8 mm×22 mm×7 mm makes it ideal for space-constrained installations.

Application

Common Applications of 608-2Z/LHT23/344448 Bearing
You’ll often spot 608-2Z/LHT23/344448 Bearing in small electric motors, thanks to its compact 8mm bore and reliable shielded design. It’s a go-to choice for hobbyists building DIY projects like mini drones or RC cars.

In household appliances, 608-2Z/LHT23/344448 Bearing keeps things running smoothly in items like desk fans and food processors. Its chrome steel construction handles daily use well, while the shields protect against dust.

For light industrial equipment, 608-2Z/LHT23/344448 Bearing works nicely in conveyor rollers and small gearboxes. The ABEC 1 tolerance offers decent precision for general-purpose applications without breaking the bank.

What Makes 608-2Z/LHT23/344448 Bearing a Preferred Choice?
This bearing’s 34,000 rpm max speed makes it handy for high-speed applications like dental handpieces or small power tools. The metric sizing fits neatly into European and Asian machinery designs.

You’ll appreciate 608-2Z/LHT23/344448 Bearing in 3D printers, where it guides smooth linear motion in extruder assemblies. The shielded design helps keep out plastic dust during long printing sessions.

Built for Versatility: 608-2Z/LHT23/344448 Bearing
From skateboard wheels to office equipment, this bearing adapts well to various light-load scenarios. Its 7mm width allows for space-saving installations in compact devices.

The -30° to 120°C temperature range means 608-2Z/LHT23/344448 Bearing performs reliably in most environments. Whether it’s a garage workshop or air-conditioned office, this bearing won’t let you down.
