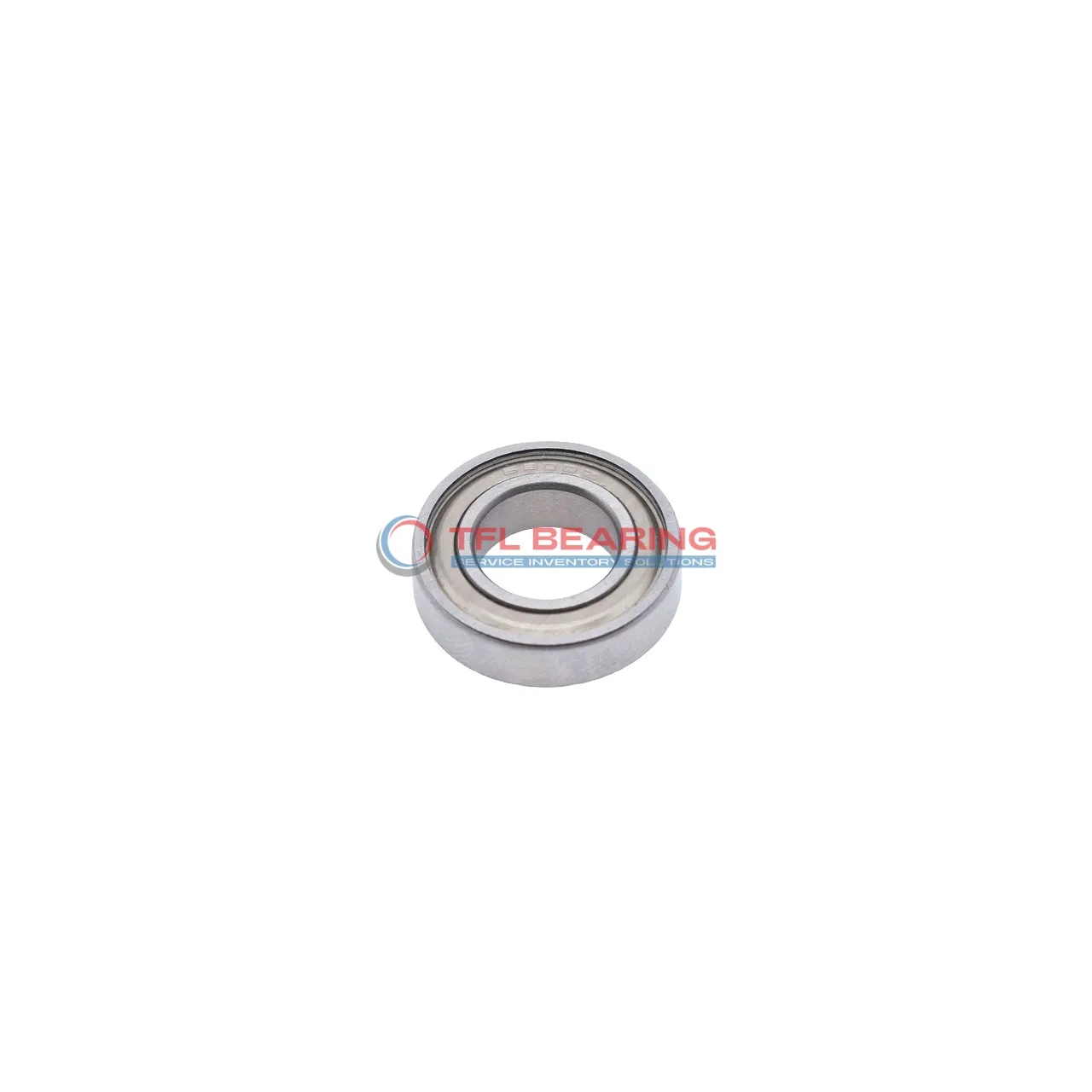

Single Row Deep Groove Ball Bearings 608-2Z/C3VA2101

Single Row Deep Groove Ball Bearings 608-2Z/C3VA2101

The 608-2Z/C3VA2101 is a compact single-row deep groove ball bearing, measuring 8mm in bore and 22mm in outer diameter, with a width of just 7mm. Made from chrome steel, it offers reliable performance for radial loads up to 630 lbf.

Its shielded design keeps dirt out while allowing smooth rotation at speeds up to 34,000 RPM. The C3 radial clearance ensures flexibility in varying temperature conditions, from -30°C to 120°C.

This bearing is interchangeable with SKF models, making replacements straightforward. Ideal for small machinery, skateboards, or electric motors where space is limited.

Weighing only 11.8g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-2Z/C3VA2101
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g
Single Row Deep Groove Ball Bearings 608-2Z/C3VA2101 dimension drawing
Download DWG Download PDF

Features

Performance Features of 608-2Z/C3VA2101 Bearing

608-2Z/C3VA2101 Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its shielded design provides protection against dust and debris, enhancing durability.

The C3 radial clearance allows for thermal expansion, making it suitable for varied operating conditions.
With a maximum speed of 34,000 rpm, it delivers smooth performance in high-speed applications.

608-2Z/C3VA2101 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its compact size and lightweight design make it ideal for space-constrained installations.

Application

Common Applications of 608-2Z/C3VA2101 Bearing
608-2Z/C3VA2101 Bearing is widely used in small electric motors, such as those found in household appliances or power tools. Its shielded design helps keep dust out while maintaining smooth rotation.

In skateboards and rollerblades, 608-2Z/C3VA2101 Bearing provides reliable performance for wheels, handling radial loads with ease. The C3 clearance allows for slight expansion under heat during prolonged use.

For office equipment like printers and scanners, 608-2Z/C3VA2101 Bearing ensures quiet operation in moving parts. Its compact 8mm bore size makes it suitable for various precision mechanisms.

The chrome steel construction of 608-2Z/C3VA2101 Bearing offers good durability in robotic applications, particularly in small joint movements. It balances cost and performance well for educational robotics projects.
