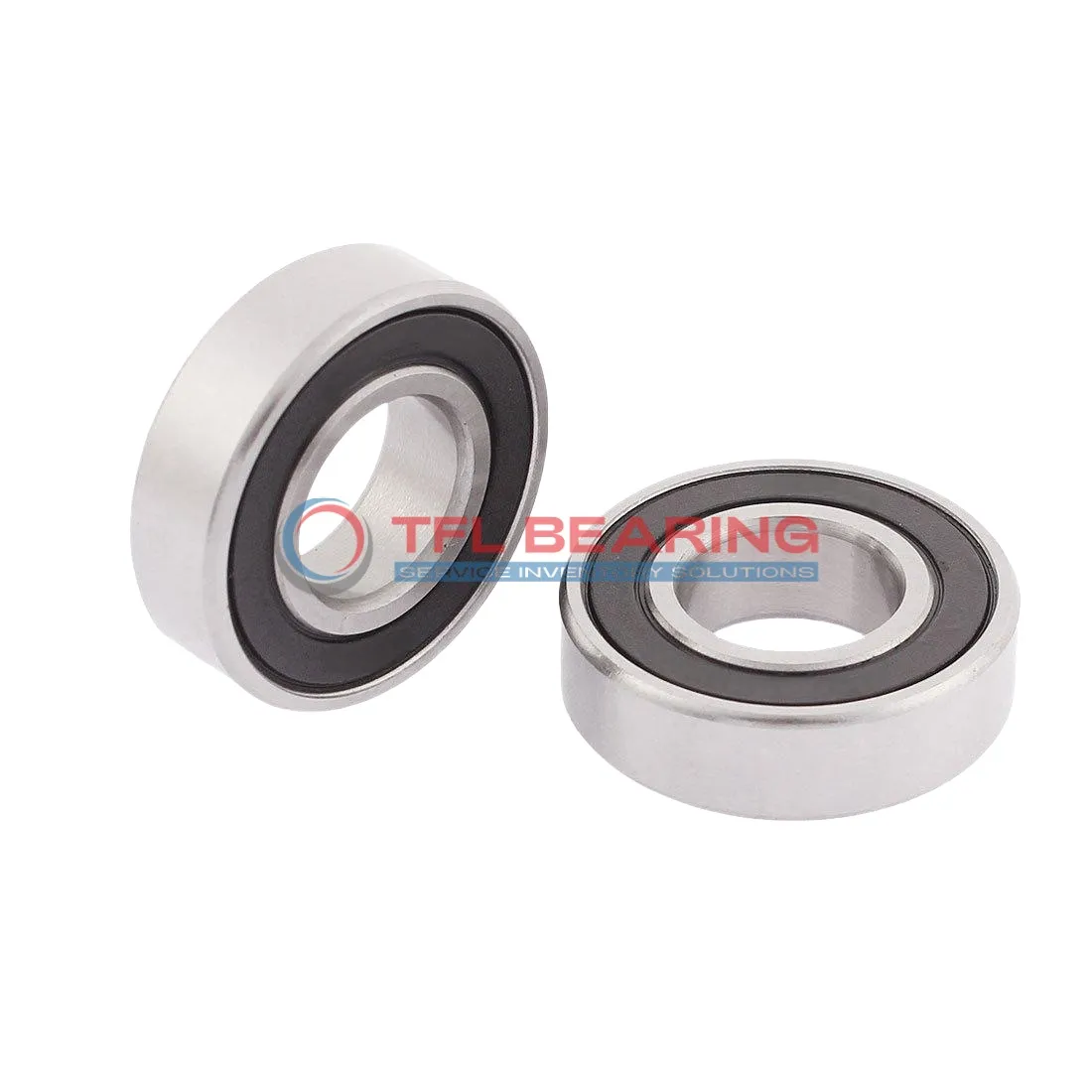

Single Row Deep Groove Ball Bearings 608-2RSH/W64

Single Row Deep Groove Ball Bearings 608-2RSH/W64

The 608-2RSH/W64 is a compact single-row deep groove ball bearing with an 8mm bore and 22mm outer diameter, crafted from durable chrome steel. Its sealed design keeps out dust and dirt, while the solid oil lubrication ensures smooth operation.

This bearing handles radial loads up to 630 lbf and spins at speeds up to 34,000 RPM, making it suitable for high-speed applications. The chrome steel cage adds strength and longevity.

Ideal for small machinery, skateboards, or electric motors, it performs reliably in temperatures from -30°C to 120°C. Weighing just 11.8g, it’s lightweight yet sturdy.

Compliant with RoHS and REACH standards, it’s a safe and practical choice for various uses. Interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-2RSH/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g
  • price（$） 4.392
Single Row Deep Groove Ball Bearings 608-2RSH/W64 dimension drawing
Download DWG Download PDF

Features

How Does 608-2RSH/W64 Bearing Reduce Friction?

608-2RSH/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
The chrome steel construction enhances durability, making it suitable for radial load applications.

Its dynamic radial load capacity of 630 lbf allows for reliable performance in various conditions.
With a maximum speed of 34,000 rpm, it offers both efficiency and longevity.

The ABEC 1 tolerance class ensures consistent precision, ideal for everyday use.
Its compact size (8 mm×22 mm×7 mm) makes it versatile for different machinery needs.

Application

Common Applications of 608-2RSH/W64 Bearing
You’ll often spot 608-2RSH/W64 Bearing in skateboards and inline skates, where its sealed design keeps dirt out while handling smooth rotations. The solid oil lubrication means less maintenance, perfect for outdoor use.

In small electric motors like those in desk fans or power tools, 608-2RSH/W64 Bearing offers reliable performance with its chrome steel construction. Its compact 8mm bore fits neatly into tight spaces without compromising durability.

For 3D printers and robotic arms, 608-2RSH/W64 Bearing’s ABEC 1 precision ensures consistent movement during detailed operations. The wide temperature range (-30° to 120°C) makes it adaptable to various workshop conditions.

Around the house, you might find 608-2RSH/W64 Bearing in appliances like food processors or hair dryers, where its sealed design prevents grease contamination. The lightweight build (11.8g) helps reduce overall device weight without sacrificing load capacity.
