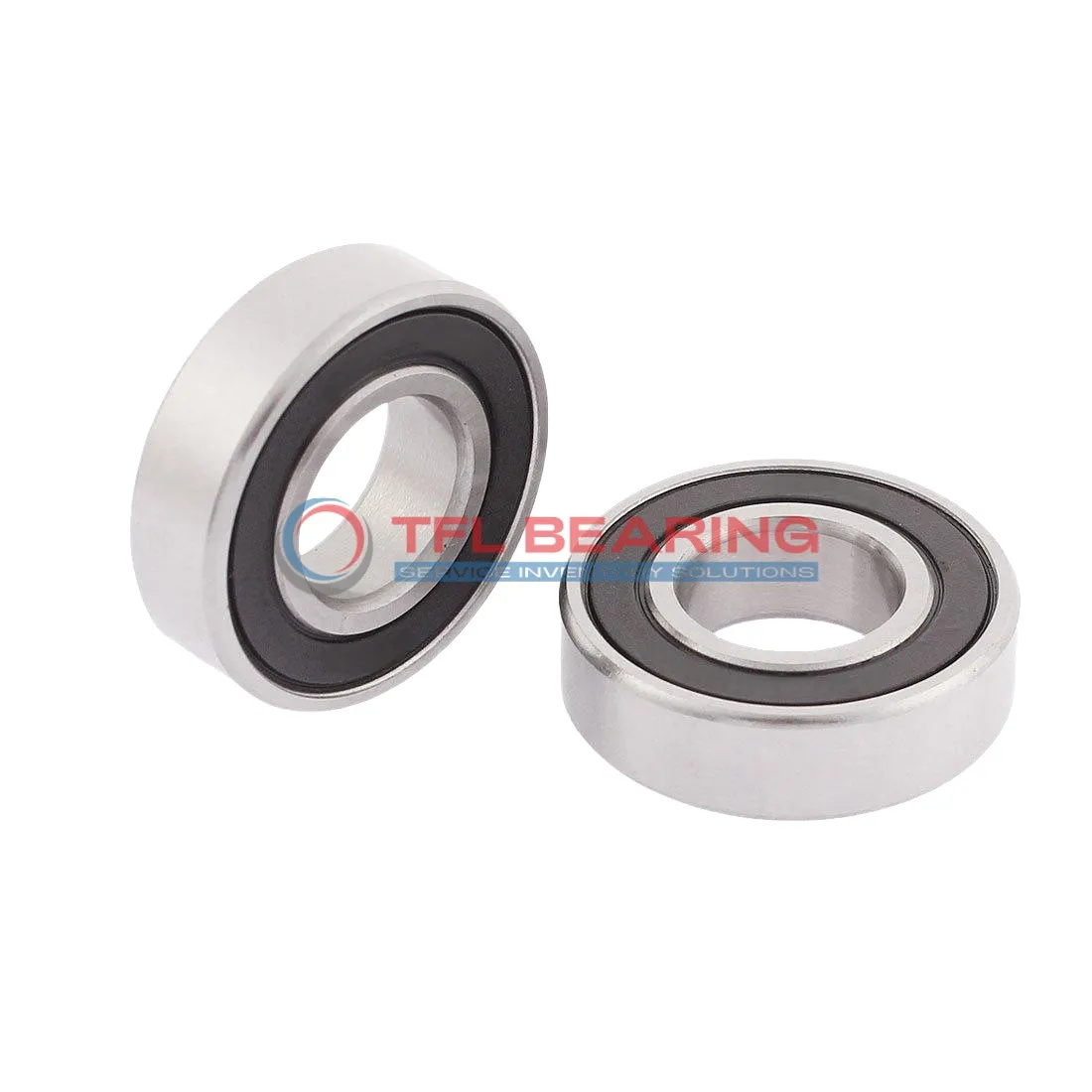

Single Row Deep Groove Ball Bearings 608-2RSH/C4HLHT23

Single Row Deep Groove Ball Bearings 608-2RSH/C4HLHT23

The 608-2RSH/C4HLHT23 is a compact single-row deep groove ball bearing, measuring 8mm by 22mm by 7mm. Made from chrome steel, it’s built to handle radial loads up to 630 lbf and speeds of 34,000 RPM.
Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The C4 radial clearance ensures smooth operation even under varying temperatures, from -30°C to 120°C.
This bearing is interchangeable with SKF models, offering a reliable replacement option. It’s ideal for small machinery, skateboards, or electric motors where space is limited.
Weighing just 11.8g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-2RSH/C4HLHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g
Single Row Deep Groove Ball Bearings 608-2RSH/C4HLHT23 dimension drawing
Download DWG Download PDF

Features

How Does 608-2RSH/C4HLHT23 Bearing Reduce Friction?

608-2RSH/C4HLHT23 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its sealed construction helps retain lubrication, reducing friction and wear over time.
The chrome steel rings and balls enhance durability while maintaining low friction levels.
With a maximum speed of 34,000 rpm, it delivers reliable performance in high-speed applications.

Application

Practical Applications of 608-2RSH/C4HLHT23 Bearing
In skateboards and inline skates, 608-2RSH/C4HLHT23 Bearing offers smooth rolling with its sealed design, keeping dirt out and lubrication in. Its compact size fits perfectly in wheel hubs, making it a favourite for recreational gear.

Where Is 608-2RSH/C4HLHT23 Bearing Used?
You’ll often spot 608-2RSH/C4HLHT23 Bearing in small electric motors, like those in desk fans or power tools, where its radial load capacity ensures quiet operation. The chrome steel construction also handles moderate speeds without overheating.

Built for Versatility: 608-2RSH/C4HLHT23 Bearing
This bearing works well in conveyor systems for light packaging lines, thanks to its C4 clearance accommodating slight misalignments. The sealed rings reduce maintenance needs in dusty factory environments.

Automotive vs Industrial: Where 608-2RSH/C4HLHT23 Bearing Excels
While it’s not for heavy vehicles, 608-2RSH/C4HLHT23 Bearing suits motorcycle accessories like throttle grips due to its low friction. In 3D printers, it ensures precise linear motion along guide rails.
