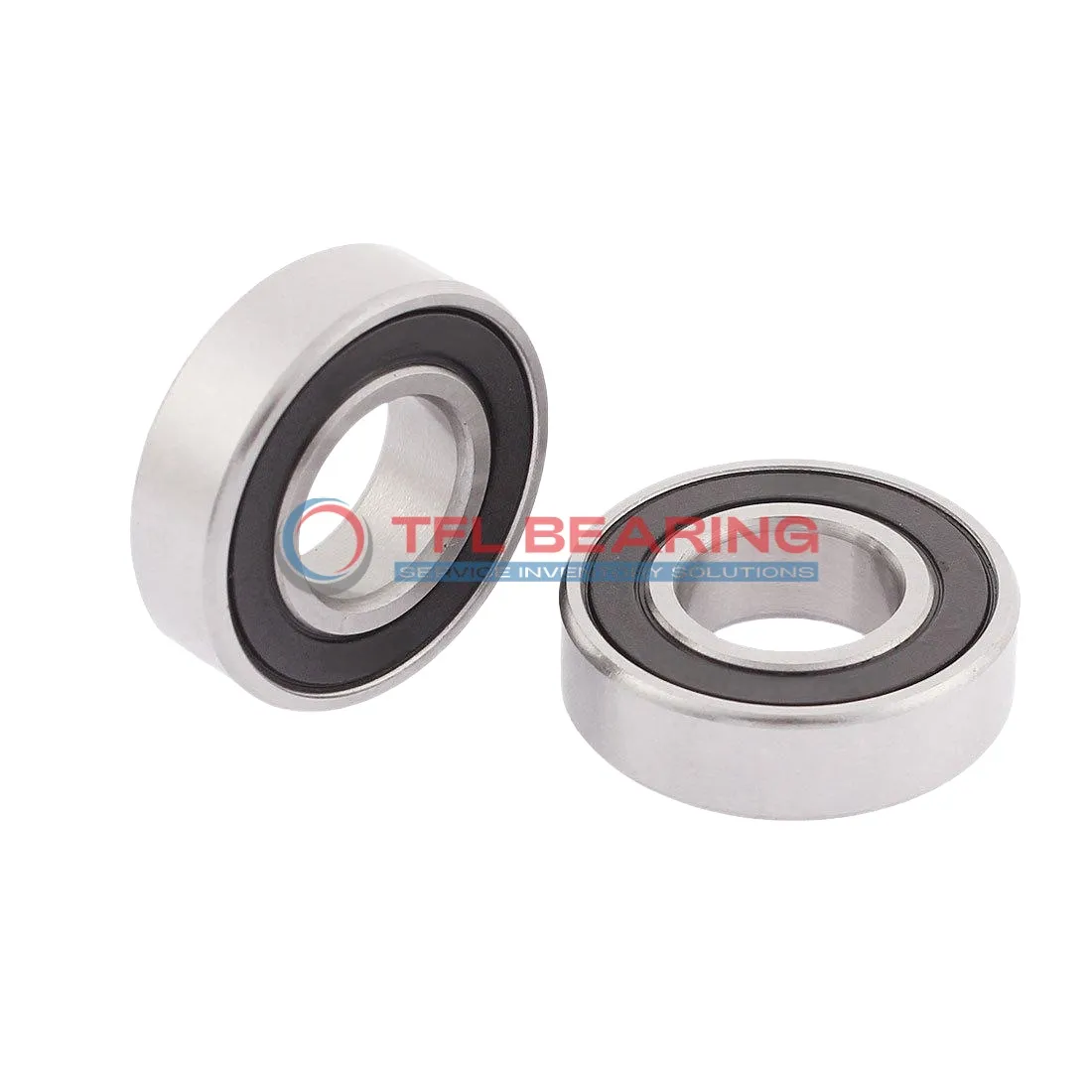

Single Row Deep Groove Ball Bearings 608-2RSH/C2HLHT23

Single Row Deep Groove Ball Bearings 608-2RSH/C2HLHT23

The 608-2RSH/C2HLHT23 is a compact single-row deep groove ball bearing, measuring 8mm by 22mm by 7mm. Made from chrome steel, it handles radial loads up to 630 lbf and spins smoothly at speeds up to 34,000 RPM.

Its sealed design keeps out dust and dirt, while the C2 radial clearance ensures smooth operation. The bearing works well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like small motors or skateboards where reliability is key.

Weighing just 11.8g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-2RSH/C2HLHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g

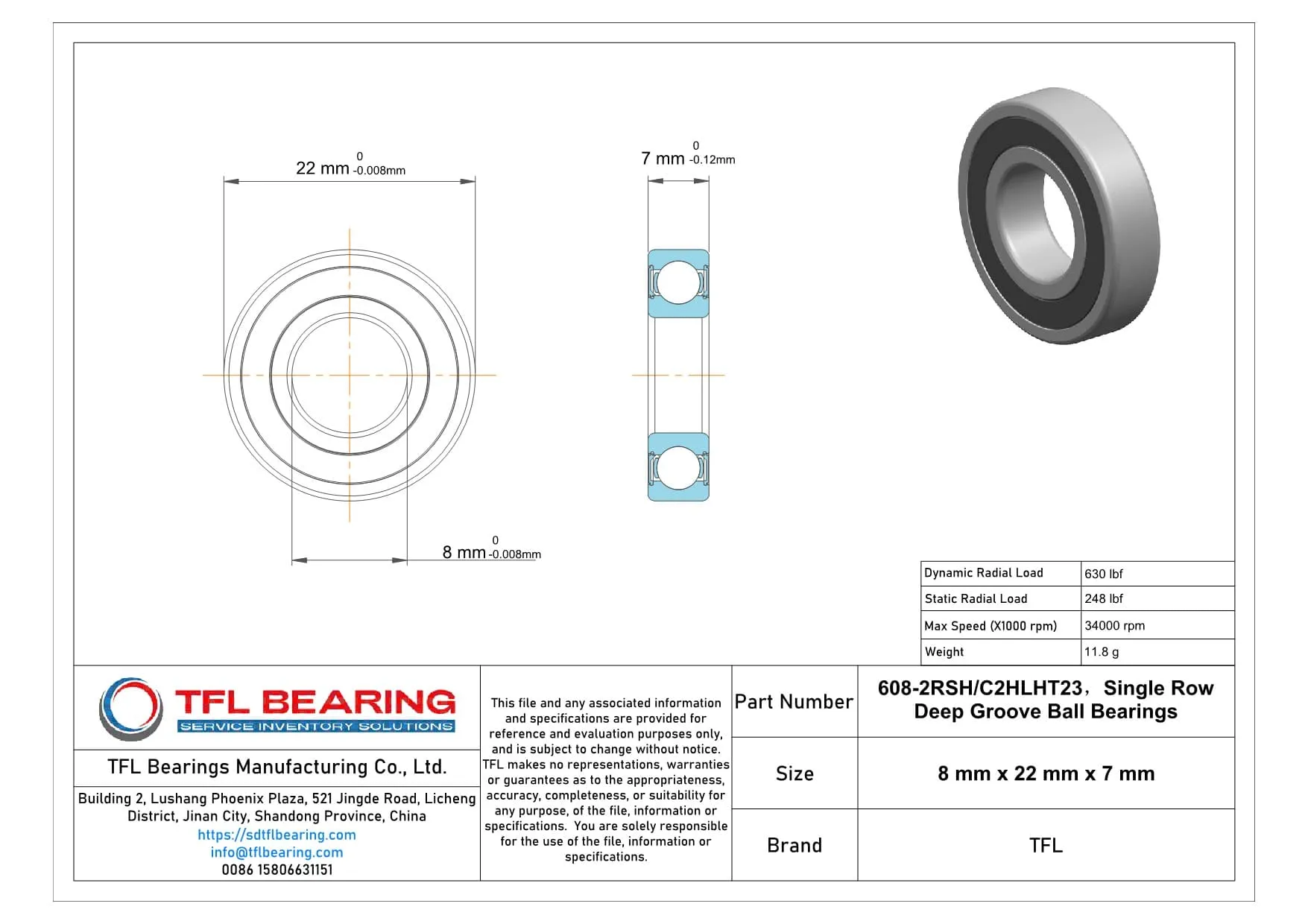

Single Row Deep Groove Ball Bearings 608-2RSH/C2HLHT23 dimension drawing
Download DWG Download PDF

Features

Performance Features of 608-2RSH/C2HLHT23 Bearing

608-2RSH/C2HLHT23 Bearing is designed with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 630 lbf, making it suitable for various applications.
The sealed design protects against dust and moisture, ensuring smooth operation in different environments.
With a maximum speed of 34,000 rpm, it combines durability and high-speed performance.

How Does 608-2RSH/C2HLHT23 Bearing Resist Wear?

608-2RSH/C2HLHT23 Bearing’s chrome steel construction enhances its resistance to wear and tear.
The sealed design helps keep contaminants out, prolonging the bearing’s service life.
Its C2 radial clearance ensures optimal performance under varying load conditions.
The bearing operates efficiently within a temperature range of -30°C to 120°C.

Built for Reliability: 608-2RSH/C2HLHT23 Bearing

608-2RSH/C2HLHT23 Bearing is crafted for consistent performance in radial load applications.
Its chrome steel cage maintains ball alignment, reducing friction and noise.
The sealed design minimises maintenance needs, making it a practical choice.
With a static radial load capacity of 248 lbf, it handles moderate loads with ease.

Steel vs Ceramic Bearings: Strengths of 608-2RSH/C2HLHT23 Bearing

608-2RSH/C2HLHT23 Bearing’s chrome steel construction provides excellent durability and cost-effectiveness.
It offers a balance between performance and affordability compared to ceramic alternatives.
The sealed design ensures protection in harsh environments without frequent maintenance.
Its lightweight design at 11.8 g makes it suitable for compact applications.

Application

Common Applications of 608-2RSH/C2HLHT23 Bearing
This bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its sealed design helps keep out dust and moisture, extending the bearing’s life in everyday environments.

In skateboards and rollerblades, 608-2RSH/C2HLHT23 Bearing provides smooth rotation for wheels, handling both radial loads and moderate speeds. The chrome steel construction offers good durability for recreational use.

For office equipment like printers and scanners, this bearing ensures quiet operation and reliable performance. The compact 8mm bore size makes it suitable for various small machinery applications.

608-2RSH/C2HLHT23 Bearing works well in cooling fans, where its sealed design protects against dust buildup. The C2 clearance allows for slight thermal expansion during continuous operation.
