Single Row Deep Groove Ball Bearings 607-2RSLTN9/C3VT162F4

Single Row Deep Groove Ball Bearings 607-2RSLTN9/C3VT162F4

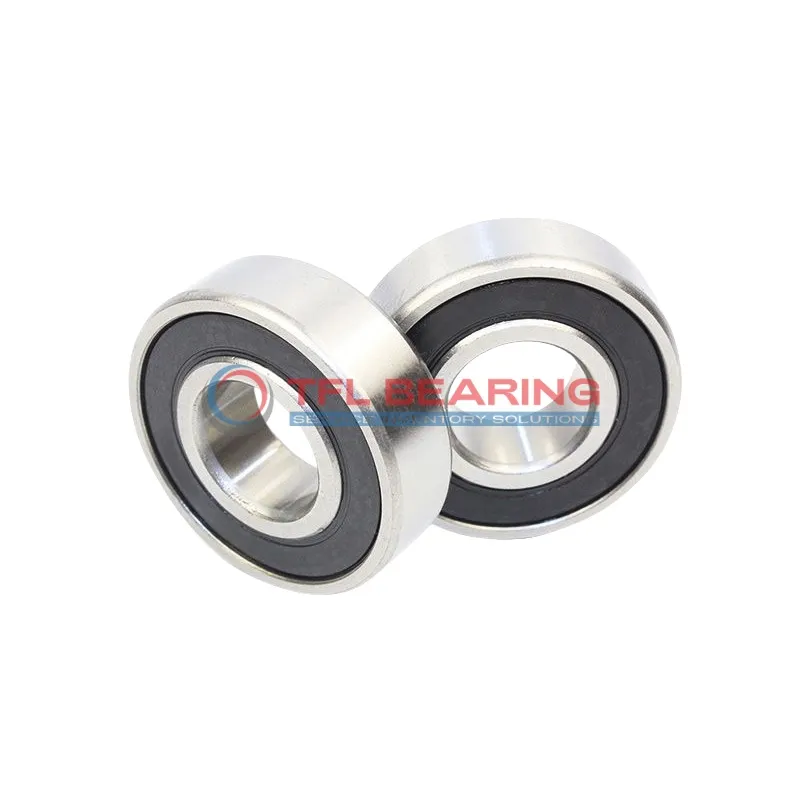

The 607-2RSLTN9/C3VT162F4 is a compact single-row deep groove ball bearing, measuring 7mm in bore and 19mm in outer diameter, with a width of 6mm. Made from chrome steel, it’s built to handle radial loads up to 447 lbf and speeds up to 36,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The nylon cage reduces friction, ensuring smooth operation even at high speeds. It works in temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for small motors, power tools, or appliances where space is limited but performance is key.

Weighing just 7.8g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 607-2RSLTN9/C3VT162F4
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 447 lbf
  • Static Radial Load 161 lbf
  • Max Speed 36000 rpm
  • Weight 7.8 g
Single Row Deep Groove Ball Bearings 607-2RSLTN9/C3VT162F4 dimension drawing
Download DWG Download PDF

Features

How Does 607-2RSLTN9/C3VT162F4 Bearing Reduce Friction?

607-2RSLTN9/C3VT162F4 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its sealed construction helps keep contaminants out, ensuring consistent performance over time.

The chrome steel rings and balls in 607-2RSLTN9/C3VT162F4 Bearing reduce friction, enhancing efficiency.
With a dynamic radial load capacity of 447 lbf, it handles demanding applications with ease.

607-2RSLTN9/C3VT162F4 Bearing operates quietly, making it suitable for precision instruments.
Its nylon cage maintains ball alignment, further minimising wear and extending service life.

Designed for speeds up to 36,000 rpm, 607-2RSLTN9/C3VT162F4 Bearing balances speed and durability.
The temperature range of -30°C to 120°C ensures reliable performance in various environments.

Application

Common Applications of 607-2RSLTN9/C3VT162F4 Bearing
The 607-2RSLTN9/C3VT162F4 Bearing is commonly used in small electric motors, such as those found in household appliances or power tools. Its sealed design helps keep out dust and moisture, ensuring longer service life in everyday conditions.

In automation systems, 607-2RSLTN9/C3VT162F4 Bearing provides smooth rotation for components like conveyor rollers or robotic joints. The C3 clearance allows for slight thermal expansion, making it suitable for varying operational temperatures.

For consumer electronics like printers or small fans, 607-2RSLTN9/C3VT162F4 Bearing offers reliable performance with minimal maintenance. Its compact size and nylon cage make it a quiet and efficient choice for these applications.
