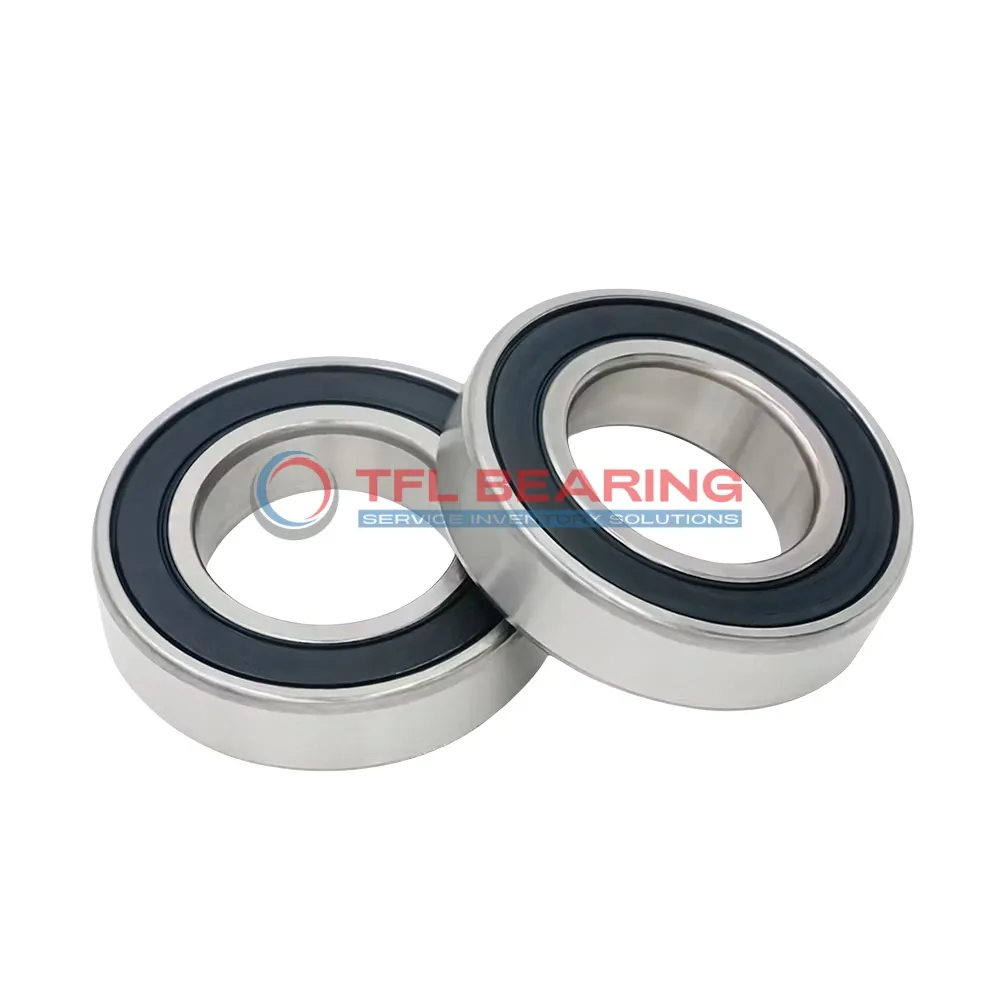

Single Row Deep Groove Ball Bearings 6012-2RS1/C3GJN

Single Row Deep Groove Ball Bearings 6012-2RS1/C3GJN

The 6012-2RS1/C3GJN is a single-row deep groove ball bearing with a 60mm bore and 95mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6609 lbf and operates smoothly at speeds up to 7100 RPM.

Its sealed design keeps dirt out and lubrication in, making it low-maintenance for long-term use. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Ideal for electric motors, pumps, or industrial gearboxes where consistent radial load support is needed.

Weighing 403g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6012-2RS1/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6609 lbf
  • Static Radial Load 5216 lbf
  • Max Speed 7100 rpm
  • Weight 403 g
  • price（$） 13.446
Single Row Deep Groove Ball Bearings 6012-2RS1/C3GJN dimension drawing
Download DWG Download PDF

Features

How Does 6012-2RS1/C3GJN Bearing Reduce Friction?

6012-2RS1/C3GJN Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures smooth operation, even under high radial loads of up to 6609 lbf.
The deep groove design enhances load distribution, minimising wear and extending service life.
With a maximum speed of 7,100 rpm, it offers reliable performance in various applications.

Application

Industrial Uses of 6012-2RS1/C3GJN Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out.
The C3 radial clearance makes it suitable for applications with thermal expansion or misalignment.

Where Is 6012-2RS1/C3GJN Bearing Used?
You’ll often find 6012-2RS1/C3GJN Bearing in automotive components such as alternators and water pumps.
Its chrome steel construction provides good durability for these high-use applications.

Built for Heavy-Duty Use: 6012-2RS1/C3GJN Bearing
In conveyor systems and material handling equipment, 6012-2RS1/C3GJN Bearing handles radial loads effectively.
The sealed design helps maintain performance even in dusty environments.

Automotive vs Industrial: Applications of 6012-2RS1/C3GJN Bearing
While used in car components, 6012-2RS1/C3GJN Bearing also works well in industrial fans and blowers.
Its temperature range allows operation in various environments without performance loss.

Practical Applications of 6012-2RS1/C3GJN Bearing
For household appliances like washing machines, 6012-2RS1/C3GJN Bearing offers quiet operation.
The sealed design prevents lubricant leakage, making it low-maintenance for home use.
