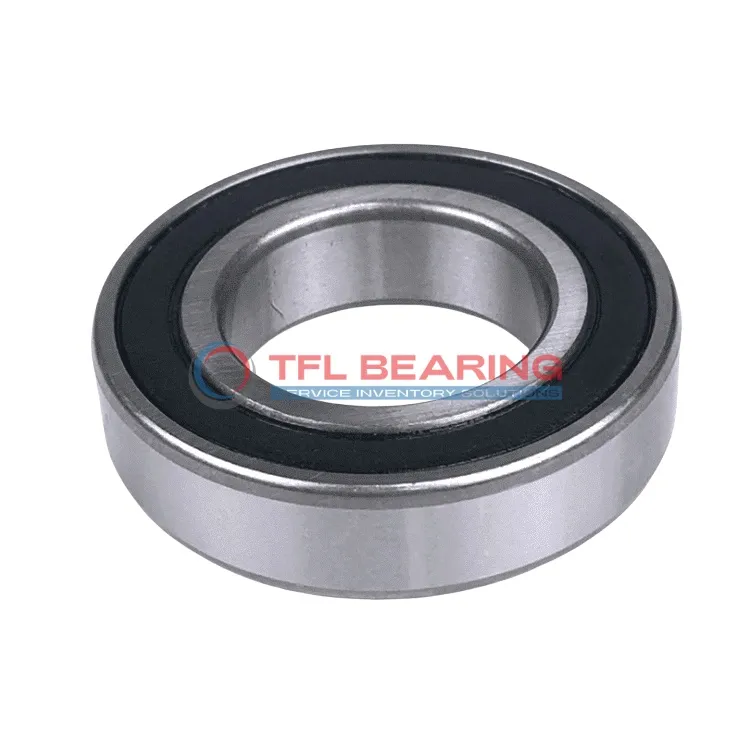

Single Row Deep Groove Ball Bearings 6004-2RSH/VA947

Single Row Deep Groove Ball Bearings 6004-2RSH/VA947

The 6004-2RSH/VA947 is a compact single row deep groove ball bearing, measuring 20mm by 42mm by 12mm. Made from chrome steel, it’s built to handle radial loads up to 2237 lbf and speeds of 11000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The stainless steel cage adds durability, ensuring smooth operation even under stress.

This bearing works in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for electric motors or small machinery, its lightweight 0.07kg design doesn’t compromise strength. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6004-2RSH/VA947
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 2237 lbf
  • Static Radial Load 1124 lbf
  • Max Speed 11000 rpm
  • Weight 0.07 kg
Single Row Deep Groove Ball Bearings 6004-2RSH/VA947 dimension drawing
Download DWG Download PDF

Features

Why Choose 6004-2RSH/VA947 Bearing for Precision Tasks?

6004-2RSH/VA947 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 2237 lbf, it handles demanding conditions reliably.
The P6 tolerance class guarantees high precision, making it suitable for accurate machinery.

Operating at temperatures from -30° to 120°C, it performs well in varied environments.
The stainless steel cage maintains ball alignment, reducing friction and extending service life.

Grease lubrication ensures smooth operation, even at high speeds up to 11,000 rpm.
Its compact size (20 mm×42 mm×12 mm) makes it ideal for space-constrained applications.

Application

Common Applications of 6004-2RSH/VA947 Bearing
6004-2RSH/VA947 Bearing is widely used in industrial equipment like electric motors and pumps, where its sealed design keeps contaminants out and extends service life. The chrome steel construction ensures reliable performance even in demanding environments.

In automotive applications, 6004-2RSH/VA947 Bearing fits well in components such as alternators and water pumps, providing smooth rotation under radial loads. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances, 6004-2RSH/VA947 Bearing is often found in washing machines and fans, where its low maintenance and durability are appreciated. The grease lubrication helps reduce noise, making it ideal for household use.

In automation systems, 6004-2RSH/VA947 Bearing supports robotic arms and conveyor belts, ensuring precise movement. The stainless steel cage adds extra resistance to wear, perfect for high-cycle operations.
