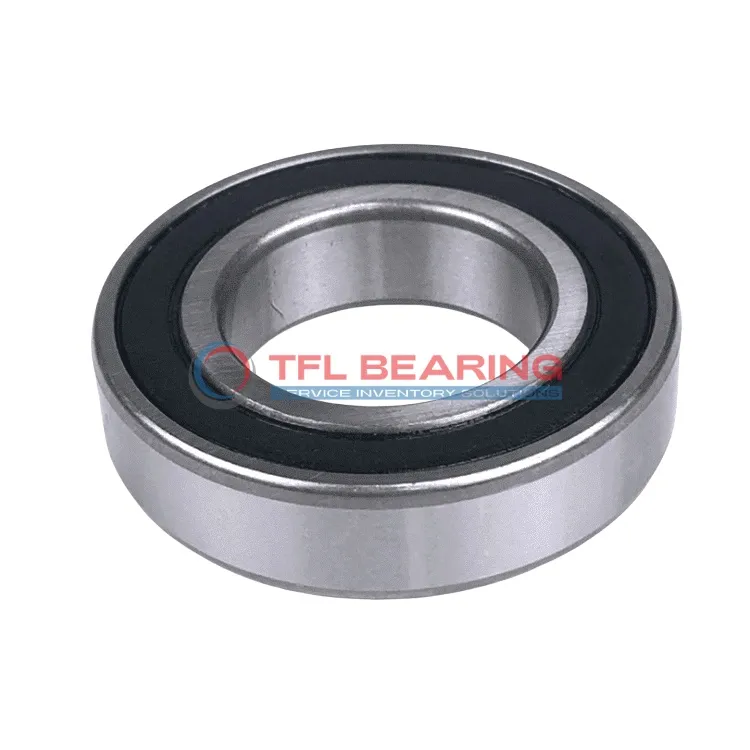

Single Row Deep Groove Ball Bearings 6004-2RSH/C3LHT23

Single Row Deep Groove Ball Bearings 6004-2RSH/C3LHT23

The 6004-2RSH/C3LHT23 is a compact single-row deep groove ball bearing, measuring 20mm by 42mm by 12mm. Made from chrome steel, it’s built to handle radial loads up to 2113 lbf and speeds of 17000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.

This bearing works well in environments from -30°C to 120°C, suitable for electric motors or small machinery. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing just 69g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6004-2RSH/C3LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2113 lbf
  • Static Radial Load 1135 lbf
  • Max Speed 17000 rpm
  • Weight 69 g
Single Row Deep Groove Ball Bearings 6004-2RSH/C3LHT23 dimension drawing
Download DWG Download PDF

Features

How Does 6004-2RSH/C3LHT23 Bearing Reduce Friction?

6004-2RSH/C3LHT23 Bearing is designed with a sealed construction, preventing contaminants from entering and reducing friction.
Its chrome steel rings and balls ensure smooth operation, even at high speeds up to 17,000 rpm.
The C3 radial clearance provides optimal performance under varying thermal conditions.
With a dynamic radial load capacity of 2113 lbf, it offers reliable performance in radial load applications.

Application

Industrial Uses of 6004-2RSH/C3LHT23 Bearing
6004-2RSH/C3LHT23 Bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

What Makes 6004-2RSH/C3LHT23 Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6004-2RSH/C3LHT23 Bearing offers reliable performance due to its chrome steel construction. Its metric sizing makes it a versatile fit for many vehicle models.

Perfect Fit for Automation: 6004-2RSH/C3LHT23 Bearing
6004-2RSH/C3LHT23 Bearing works well in robotic arms and 3D printers, where precision and durability are key. The sealed design also reduces maintenance needs in high-use environments.

Medical vs Industrial: Where 6004-2RSH/C3LHT23 Bearing Excels
While 6004-2RSH/C3LHT23 Bearing is suitable for industrial gearboxes, its clean operation also makes it a good fit for medical devices like lab equipment. The temperature range ensures stability in various settings.
