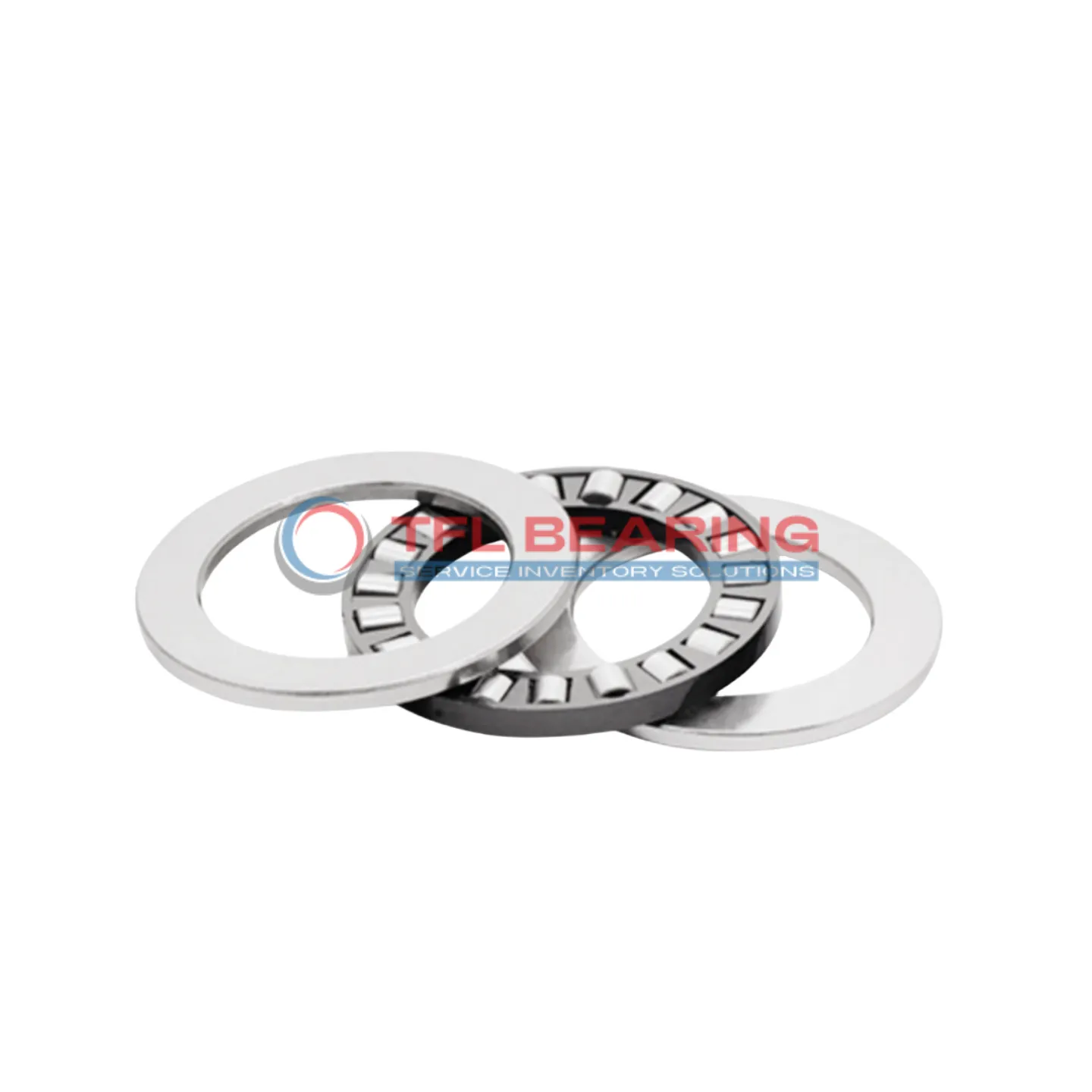

Single Row Cylindrical Roller Thrust Bearings 81106 TN

Single Row Cylindrical Roller Thrust Bearings 81106 TN

The 81106 TN is a single-row cylindrical roller thrust bearing measuring 30mm x 47mm x 11mm, crafted from sturdy chrome steel. It handles thrust loads up to 6075 lbf and operates smoothly at speeds up to 6000 RPM.

Its glass fibre reinforced PA66 cage ensures durability while reducing friction, making maintenance straightforward. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like gearboxes or industrial machinery where high thrust loads are present.

Weighing just 0.057kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81106 TN
  • size 30 mm x 47 mm x 11 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.010mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.016mm to 0
  • Width 11 mm
  • Height Tolerance -0.25mm to +0.02mm
  • Outside Diameter Shaft Washer 47 mm
  • Bore Diameter Housing Washer 32 mm
  • Height Shaft Washer 3 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 0.6 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 6075 lbf
  • Static Radial Load 17550 lbf
  • Max Speed 6000 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.057 kg
  • Roller And Cage Thrust Assembly K 81106 TN
  • Shaft Washer WS 81106
  • Housing Washer GS 81106
Single Row Cylindrical Roller Thrust Bearings 81106 TN dimension drawing
Download DWG Download PDF

Features

Performance Features of 81106 TN Bearing

81106 TN Bearing is built with chrome steel washers and rollers, offering strong resistance to thrust loads.

Its dynamic radial load capacity reaches 6075 lbf, making it suitable for demanding applications.

The glass fibre reinforced PA66 cage ensures smooth operation and reduces wear.

With a maximum speed of 6000 rpm, it delivers reliable performance in various conditions.

Application

Industrial Uses of 81106 TN Bearing
81106 TN Bearing is commonly used in machine tools, where its cylindrical roller design handles high thrust loads efficiently. The glass fibre reinforced PA66 cage ensures smooth operation even at speeds up to 6000 rpm.

Where Is 81106 TN Bearing Used?
You’ll often find 81106 TN Bearing in automotive gearboxes, where its 30 mm bore fits snugly into compact designs. Its chrome steel construction offers durability under constant thrust loads.

Built for Heavy-Duty Use: 81106 TN Bearing
81106 TN Bearing excels in conveyor systems, thanks to its static radial load capacity of 17550 lbf. The metric sizing makes it easy to replace in European machinery.

Automotive vs Aerospace: Applications of 81106 TN Bearing
In automotive clutches, 81106 TN Bearing provides reliable performance, while its temperature range suits aerospace auxiliary systems. The PA66 cage reduces friction in high-speed scenarios.

Perfect Fit for Automation: 81106 TN Bearing
81106 TN Bearing works well in robotic arms, where precise axial load handling is key. Its 11 mm width fits neatly into compact automation setups without sacrificing strength.
