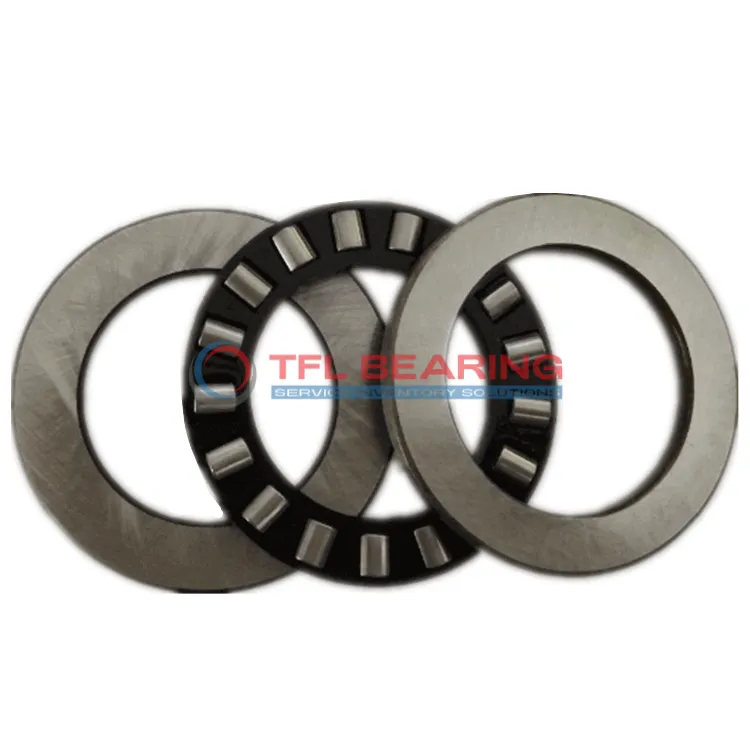

Single Row Cylindrical Roller Thrust Bearings 81102 TN

Single Row Cylindrical Roller Thrust Bearings 81102 TN

The 81102 TN is a compact single-row cylindrical roller thrust bearing, measuring 15mm by 28mm by 9mm. Made from chrome steel, it’s built to handle thrust loads efficiently.

It supports dynamic radial loads up to 2520 lbf and can spin at speeds up to 8500 RPM. The glass fibre reinforced PA66 cage adds durability while keeping it lightweight at just 0.024kg.

The bearing’s design includes precise tolerances for smooth operation, with a temperature range of -30°C to 110°C. It’s interchangeable with SKF models, making replacements straightforward.

Ideal for applications like pumps or gearboxes where space is tight but performance is key. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81102 TN
  • size 15 mm x 28 mm x 9 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 9 mm
  • Height Tolerance -0.25mm to +0.02mm
  • Outside Diameter Shaft Washer 28 mm
  • Bore Diameter Housing Washer 16 mm
  • Height Shaft Washer 2.75 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 0.3 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 2520 lbf
  • Static Radial Load 6075 lbf
  • Max Speed 8500 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.024 kg
  • Roller And Cage Thrust Assembly K 81102 TN
  • Shaft Washer WS 81102
  • Housing Washer GS 81102
Single Row Cylindrical Roller Thrust Bearings 81102 TN dimension drawing
Download DWG Download PDF

Features

Why Choose 81102 TN Bearing for Precision Tasks?

81102 TN Bearing features a cylindrical roller design, ideal for handling thrust loads with precision.
Its chrome steel rollers and washers provide strong resistance to wear, ensuring long-term reliability.

The glass fibre reinforced PA66 cage keeps the rollers aligned, reducing friction and noise.
With a maximum speed of 8,500 rpm, it delivers efficient performance in various applications.

81102 TN Bearing operates in temperatures from -30° to 110°C, making it versatile for different environments.
Its compact size of 15 mm x 28 mm x 9 mm allows for easy integration into tight spaces.

The dynamic radial load capacity of 2520 lbf ensures it can handle demanding tasks.
Compliant with RoHS and REACH standards, it meets stringent environmental and safety requirements.

Application

Industrial Uses of 81102 TN Bearing
81102 TN Bearing is commonly used in machine tools, where its cylindrical roller design handles thrust loads efficiently. The glass fibre reinforced cage ensures smooth operation even at high speeds.

In automotive applications, 81102 TN Bearing fits well in gearbox assemblies, providing reliable performance under heavy loads. Its compact size makes it suitable for tight spaces in vehicle transmissions.

For automation systems, 81102 TN Bearing supports robotic arms with precise movement and low friction. The chrome steel construction offers durability in continuous operation.

Medical imaging devices benefit from 81102 TN Bearing’s stability and low noise during scans. The PA66 cage material resists wear in high-use environments.

In consumer electronics, 81102 TN Bearing can be found in printers, ensuring smooth paper feed mechanisms. Its metric sizing allows easy integration into various European and Asian models.
