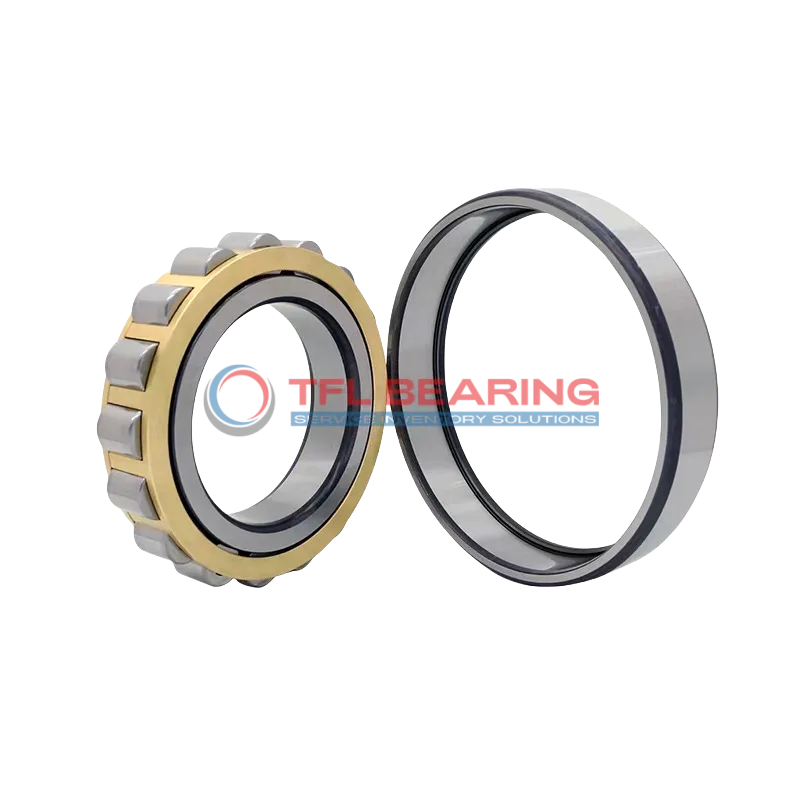

Single Row Cylindrical Roller Bearings With Inner Ring N 2207 ECM

Single Row Cylindrical Roller Bearings With Inner Ring N 2207 ECM

The N 2207 ECM is a single-row cylindrical roller bearing with a 35mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 15638 lbf and reaches speeds of 12000 RPM.

Its brass cage keeps rollers centred for smooth operation, while the open design allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like gearboxes or pumps where both radial and axial loads are present.

Weighing 0.5kg, it offers a sturdy build for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number N 2207 ECM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 48.1 mm
  • Raceway Diameter Of Outer Ring(E) 64 mm
  • Chamfer Dimension r1,2(min.) 1.1 mm
  • Chamfer Dimension r3,4(min.) 0.6 mm
  • Permissible Axial Displacement(max.) 2.8 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 15638 lbf
  • Static Radial Load 14175 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.5 kg
Single Row Cylindrical Roller Bearings With Inner Ring N 2207 ECM dimension drawing
Download DWG Download PDF

Features

Performance Features of N 2207 ECM Bearing

N 2207 ECM Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 15638 lbf, ensuring reliable performance in various applications.

The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 12000 rpm, it balances durability and efficiency.

N 2207 ECM Bearing operates smoothly in temperatures from -30° to 110°C, making it versatile.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Industrial Uses of N 2207 ECM Bearing
N 2207 ECM Bearing is commonly used in heavy machinery like gearboxes and pumps, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth rotation even at high speeds up to 12,000 rpm.

Where Is N 2207 ECM Bearing Used?
You’ll often find N 2207 ECM Bearing in conveyor systems, thanks to its robust chrome steel construction. Its open design allows for easy lubrication, making it ideal for industrial environments.

Built for Heavy-Duty Use: N 2207 ECM Bearing
N 2207 ECM Bearing excels in applications like electric motors, where its high dynamic radial load capacity ensures long-lasting performance. The metric sizing makes it a versatile choice for various equipment.

Automotive vs Aerospace: Applications of N 2207 ECM Bearing
In automotive transmissions, N 2207 ECM Bearing provides reliable support under combined loads. For aerospace, its precision engineering meets the demands of high-speed rotating components.

Perfect Fit for Automation: N 2207 ECM Bearing
N 2207 ECM Bearing is a go-to for robotic arms, offering low friction and high-speed capabilities. The grease or oil lubrication options adapt well to different operating conditions.
