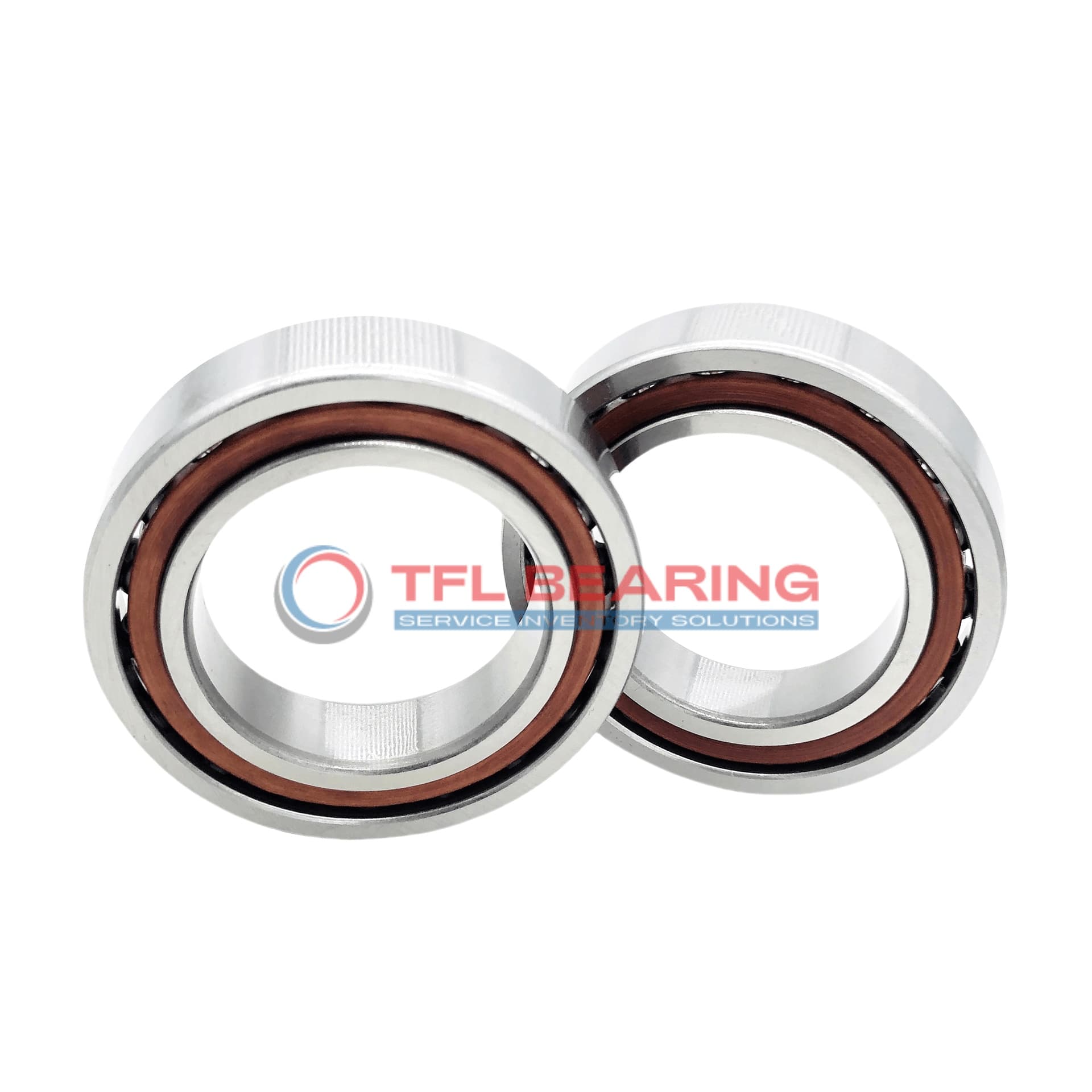

Single Row Angular Contact Ball Bearings (General) 7201 BECBP

Single Row Angular Contact Ball Bearings (General) 7201 BECBP

The 7201 BECBP is a single-row angular contact ball bearing with a 12mm bore and 32mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1712 lbf and spins smoothly at speeds up to 26,000 RPM.

Its 40° contact angle efficiently manages combined loads, while the nylon cage reduces friction for quieter operation. The open design allows easy lubrication, extending its service life.

This bearing suits applications like pumps or small motors where precision and speed are key. It’s compatible with SKF models, making replacements straightforward.

Weighing just 0.036kg, it’s lightweight yet durable, with a temperature range of -30°C to 110°C. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7201 BECBP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 10 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 20.2 mm
  • External Diameter On Inner Ring (Small Side Face) 16.57 mm
  • Internal Diameter On Outer Ring 25 mm
  • Chamfer Dimension 0.6 mm
  • Distance Pressure Point (a) 14 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 1712 lbf
  • Static Radial Load 855 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 26000 rpm
  • Weight 0.036 kg
  • Price（$） 10.56
Single Row Angular Contact Ball Bearings (General) 7201 BECBP dimension drawing
Download DWG Download PDF

Features

How Does 7201 BECBP Bearing Reduce Friction?

7201 BECBP Bearing features a 40° contact angle, optimising load distribution for smoother operation.
The chrome steel construction ensures durability while reducing friction during high-speed rotations.

Its nylon cage minimises weight and maintains ball alignment, further enhancing efficiency.
With a maximum speed of 26,000 rpm, it delivers reliable performance in demanding applications.

The P6 tolerance class guarantees precision, making it suitable for angular contact tasks.
Lubrication is pre-applied, ensuring smooth operation right from installation.

Application

Where Is 7201 BECBP Bearing Used?
7201 BECBP Bearing is commonly used in industrial machinery, especially in applications that require handling combined radial and axial loads, such as pumps and compressors. Its 40° contact angle provides excellent stability for high-speed operations.

In automotive systems, 7201 BECBP Bearing is ideal for wheel hubs and transmissions, where its angular contact design ensures smooth performance. The metric sizing makes it compatible with various vehicle models, offering reliable support under demanding conditions.

For automation and robotics, 7201 BECBP Bearing’s nylon cage reduces friction, making it suitable for precision movements in robotic arms. The chrome steel construction ensures durability, even in continuous operation scenarios.

In consumer electronics, 7201 BECBP Bearing can be found in devices like printers and small appliances, where its compact size and efficient performance are beneficial. The open design allows for easy lubrication, extending its service life.
