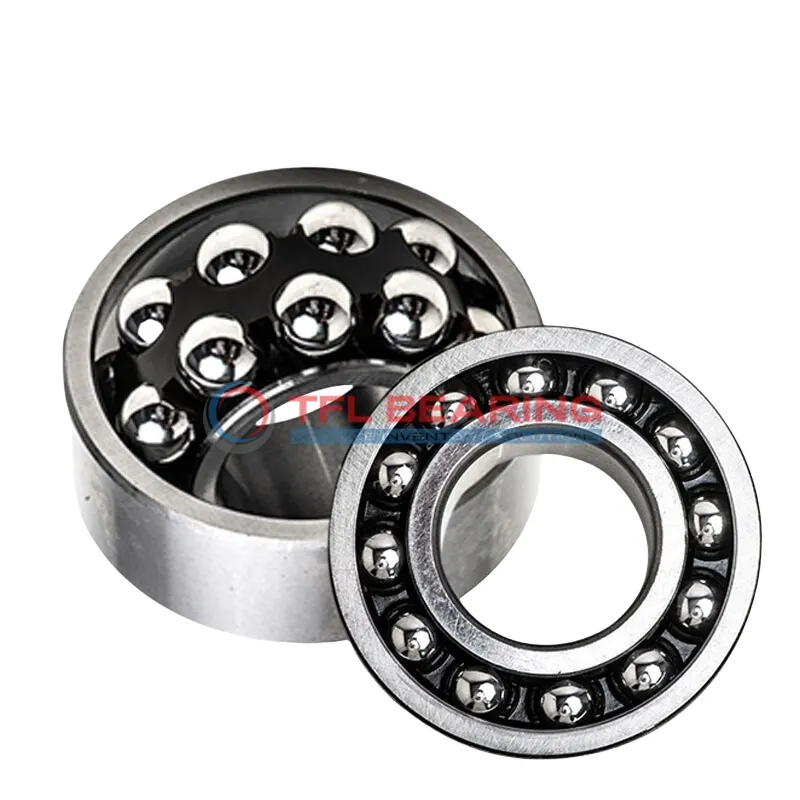

Self Aligning Ball Bearings 126TN

Self Aligning Ball Bearings 126TN

The 126TN is a compact self-aligning ball bearing, measuring just 6mm by 19mm by 6mm, crafted from durable chrome steel. It handles radial loads up to 556 lbf and spins smoothly at speeds up to 45,000 RPM.

Its double-row design and open seal allow for easy alignment and maintenance, while the nylon cage reduces friction for quieter operation. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like small motors or precision instruments where alignment flexibility is needed.

Weighing only 0.009kg, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 126TN
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 10.309 mm
  • Internal Diameter On Outer Ring 15.4 mm
  • Chamfer Dimension 0.3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 556 lbf
  • Static Radial Load 108 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 45000 rpm
  • Weight 0.009 kg
  • Price（$） 13.54
Self Aligning Ball Bearings 126TN dimension drawing
Download DWG Download PDF

Features

Why Choose 126TN Bearing for Precision Tasks?

126TN Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load handling.
Its dynamic radial load capacity of 556 lbf makes it suitable for high-precision applications.

The nylon cage in 126TN Bearing reduces friction and noise, enhancing operational efficiency.
With a maximum speed of 45,000 rpm, it delivers reliable performance in fast-moving machinery.

126TN Bearing operates efficiently within a temperature range of -30° to 110°C, adapting to various environments.
Its compact size (6 mm×19 mm×6 mm) allows for easy integration into space-constrained designs.

Application

Common Applications of 126TN Bearing
126TN Bearing is widely used in industrial equipment like conveyor systems and small machinery, where its self-aligning feature compensates for minor misalignments. The double-row design provides reliable radial load support in compact spaces.

In automotive applications, 126TN Bearing fits well in components like electric window motors or small gearboxes, thanks to its 6mm bore size. The nylon cage reduces noise, making it suitable for passenger vehicles.

For consumer electronics, 126TN Bearing works smoothly in devices like printers or small fans, where low friction is key. Its lubricated design ensures quiet operation over long periods.

What Makes 126TN Bearing a Preferred Choice?
The 126TN Bearing’s chrome steel construction offers durability in medical devices like dental handpieces, where precision matters. Its high-speed capability (45,000 rpm) suits delicate instruments requiring consistent performance.

In robotics, 126TN Bearing supports joints in lightweight robotic arms, thanks to its 19mm outer diameter. The open seal type allows for easy re-lubrication in maintenance-heavy environments.
