Needle Roller Thrust Bearing Washers LS130170

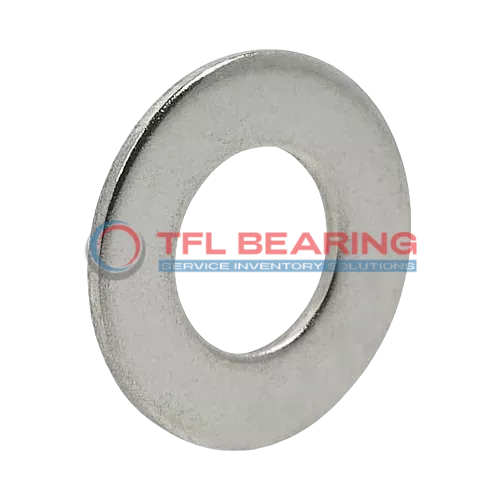

Needle Roller Thrust Bearing Washers LS130170

The LS130170 needle roller thrust bearing washers measure 130mm in bore diameter and 170mm in outer diameter, crafted from resilient spring steel. They support high thrust loads while maintaining a slim 9mm profile.
These washers are designed for smooth operation in temperatures ranging from -30°C to 110°C. Their durable construction ensures reliable performance in demanding conditions.
Interchangeable with INA models, they offer a practical solution for replacements or upgrades. Ideal for use in gearboxes, transmissions, or industrial machinery where space is limited but strength is essential.
Weighing 643g, they strike a balance between sturdiness and manageability. Compliant with RoHS standards for environmentally safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LS130170
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 130 mm
  • Bore Dia Tolerance 0.085mm to 0.485mm
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.715mm to -0.085mm
  • Width 9 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 643 g

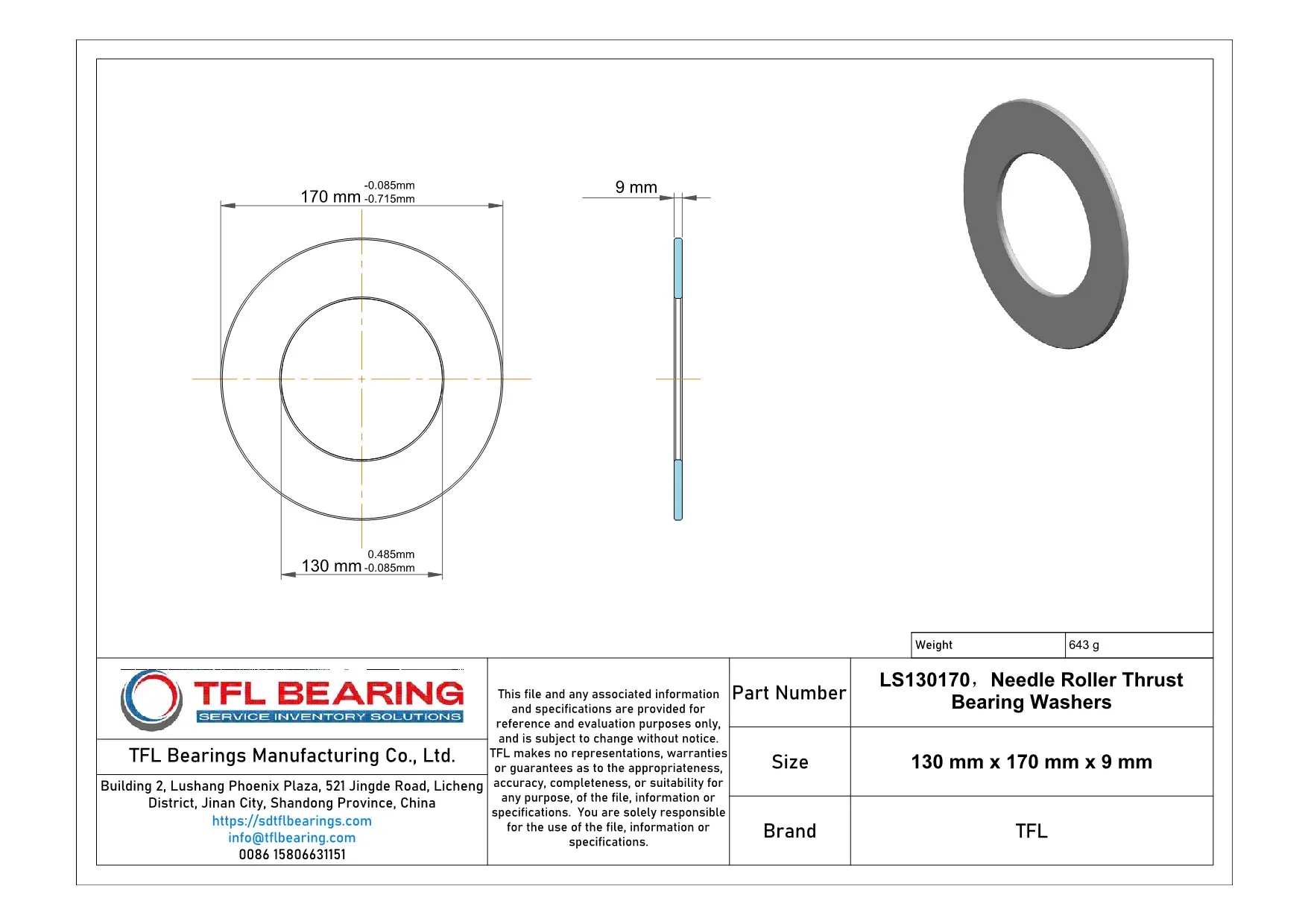

Needle Roller Thrust Bearing Washers LS130170 dimension drawing
Download DWG Download PDF

Features

Why Choose LS130170 Bearing for Precision Tasks?
LS130170 Bearing is crafted from high-quality spring steel, offering excellent durability and precision for needle roller applications.
Its precise dimensions, with a bore diameter of 130 mm and outer diameter of 170 mm, ensure a perfect fit in demanding setups.
The bearing operates efficiently within a temperature range of -30° to 110°C, making it suitable for various environments.
With RoHS compliance, LS130170 Bearing meets stringent environmental and safety standards.
Its lightweight design at 643 g reduces overall system load while maintaining robust performance.

Application

Industrial Uses of LS130170 Bearing
LS130170 Bearing is commonly used in heavy machinery, such as construction equipment and hydraulic pumps, where its needle roller design handles high axial loads efficiently. The spring steel material ensures durability even in demanding conditions.
In automotive applications, LS130170 Bearing fits well in gearboxes and clutch assemblies, providing smooth operation under constant thrust. Its metric dimensions make it a versatile choice for various vehicle models.
For automation systems, LS130170 Bearing supports robotic arms and conveyor belts, offering reliable performance with minimal maintenance. The wide temperature range allows it to function in diverse environments.
LS130170 Bearing also finds use in industrial fans and compressors, where its precise tolerances ensure long service life. The lightweight design reduces overall system weight without compromising strength.
