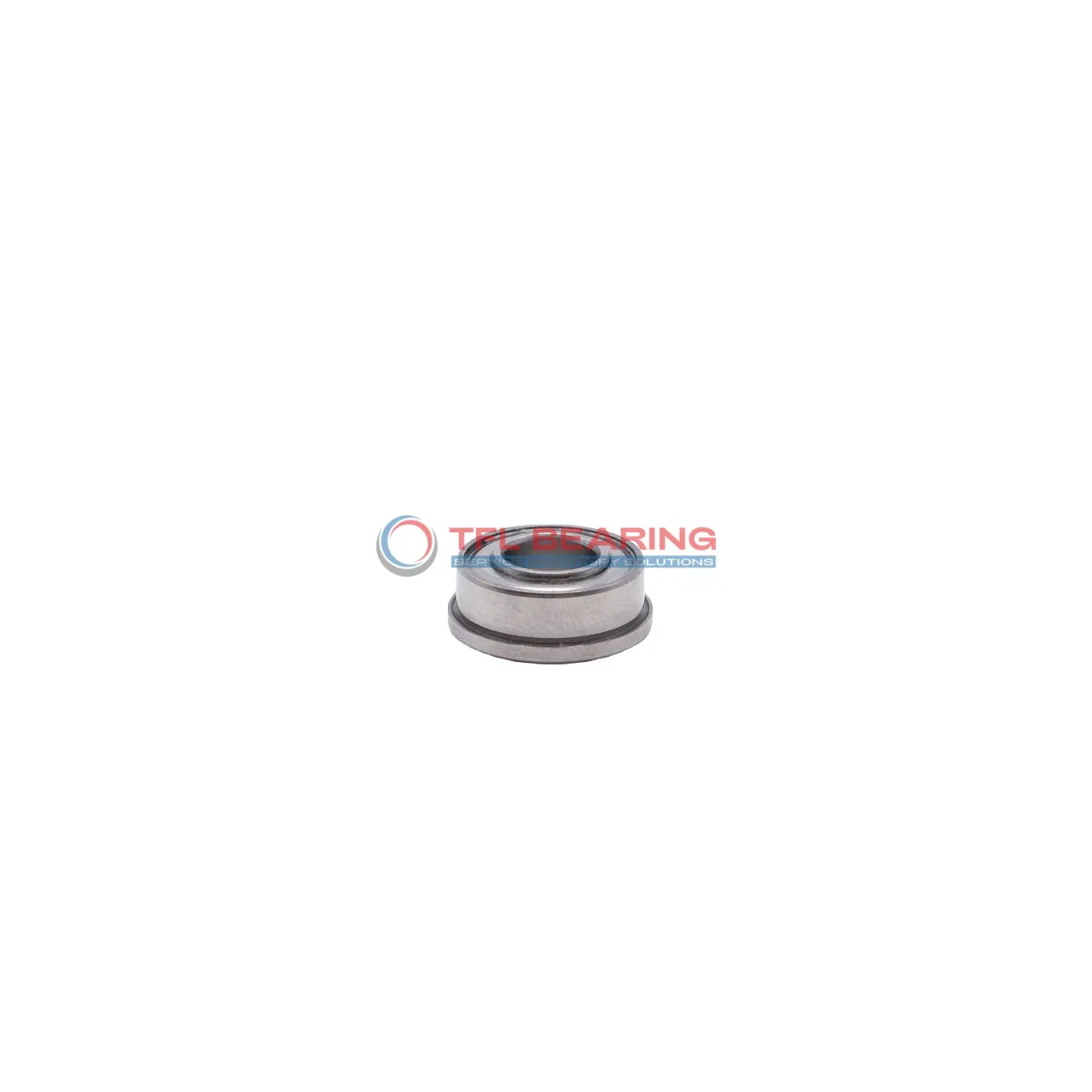

Miniature Flanged Ball Bearings With Extended Inner Ring FRW1810zz

Miniature Flanged Ball Bearings With Extended Inner Ring FRW1810zz

The FRW1810zz is a compact flanged ball bearing with a 0.3125″ bore and 0.5″ outer diameter, crafted from durable chrome steel. Its extended inner ring and shielded design offer added protection and ease of mounting.

This bearing handles radial loads up to 104 lbf and spins smoothly at speeds up to 40,000 RPM. The stainless steel cage and shields ensure reliable performance in temperatures from -86°F to 230°F.

Its small size (0.3125″×0.547″×0.1562″) and lightweight design (1.72g) make it ideal for tight spaces. The flange provides secure positioning, while the ABEC1 tolerance ensures consistent operation.

Perfect for small machinery, medical devices, or precision instruments where space and reliability are key. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number FRW1810zz
  • Brand TFL
  • Interchangeable EZO
  • System of Measurement Inch
  • Bore Dia 0.3125"
  • Bore Dia Tolerance -0.0003" to 0"
  • Outer Dia 0.5"
  • Outer Dia Tolerance -0.0003" to 0"
  • Width 0.1562"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.547"
  • Flange Thickness 0.031"
  • External Diameter On Inner Ring 0.362"
  • Inner Ring Width 0.1875"
  • Ball Qty 12
  • Ball Dia 0.0472"
  • Radial Clearance 0.00008" to 0.0005"
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Extended
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 104 lbf
  • Static Radial Load 50 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 40000 rpm
  • Weight 1.72 g
  • Price（$） 3.735

Features

How Is FRW1810zz Bearing Engineered for Reliability?

FRW1810zz Bearing features a shielded design with stainless steel shields, protecting against dust and debris.
Its extended inner ring provides secure mounting, ensuring stability in radial load applications.

The chrome steel rings and balls enhance durability, while the stainless steel cage maintains ball alignment.
With a dynamic radial load capacity of 104 lbf, it delivers consistent performance in miniature applications.

FRW1810zz Bearing operates smoothly at speeds up to 40,000 rpm, making it suitable for high-speed uses.
Its temperature range of -86 to 230 °F ensures reliability in varying environmental conditions.

The ABEC1 tolerance class and precise radial clearance contribute to its dependable operation.
This bearing is ideal for applications requiring compact size and high-speed performance.

Application

Common Applications of FRW1810zz Bearing
FRW1810zz Bearing works well in small machinery, especially where space is tight but performance matters. Its shielded design keeps dirt out, making it reliable for long-term use.

In robotics, FRW1810zz Bearing helps with smooth movement in joints and small actuators. The extended inner ring makes installation easier in compact designs.

For electronics like printers or small fans, FRW1810zz Bearing offers quiet operation. Its chrome steel construction ensures durability even with constant use.

The flange on FRW1810zz Bearing provides extra stability in devices like dental tools. This feature helps prevent misalignment during precise operations.

FRW1810zz Bearing suits hobbyist projects too, such as model cars or drones. Its lightweight design won’t add unnecessary bulk to small creations.
