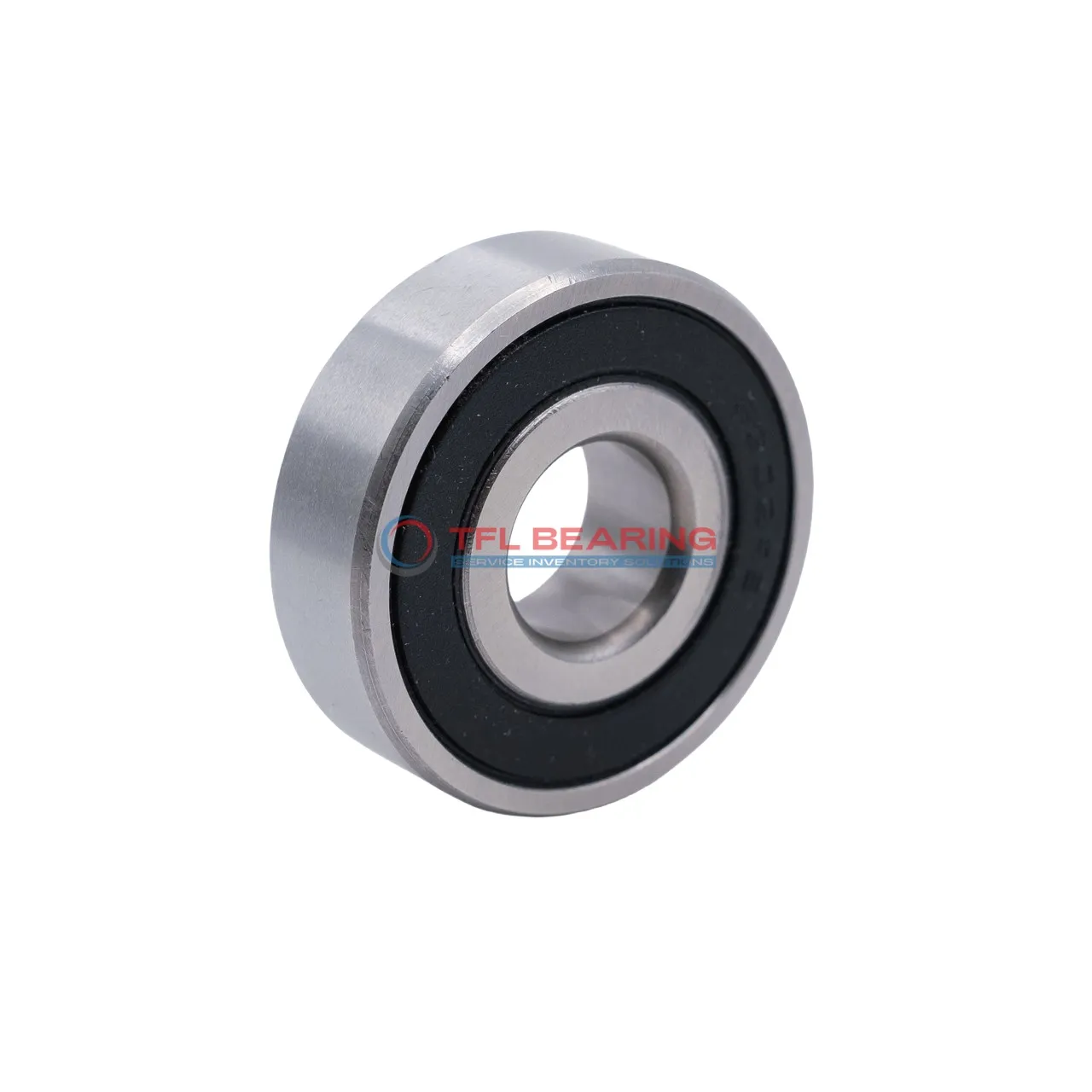

Metric Size Standard Miniature Ball Bearings S626 2rs

Metric Size Standard Miniature Ball Bearings S626 2rs

The S626 2rs is a compact miniature ball bearing with a 6mm bore and 19mm outer diameter, crafted entirely from stainless steel for durability. It supports radial loads up to 402 lbf and spins smoothly at speeds up to 28,800 RPM.

Sealed with nitrile rubber, it keeps out dust and moisture, making maintenance minimal. The stainless steel cage ensures quiet operation and long service life.

With a radial clearance of 0.002mm to 0.013mm, it offers precise movement for small applications. Ideal for use in small motors, medical devices, or precision instruments.

Weighing just 8.65g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s safe for various environments. Works well in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S626 2rs
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 6
  • Ball Dia 3.5000 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Sealed
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Shield Material Nitrile Rubber
  • Dynamic Radial Load 402 lbf
  • Static Radial Load 145 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 28800 rpm
  • Weight 8.65 g
  • Price（$） 1.242
Metric Size Standard Miniature Ball Bearings S626 2rs dimension drawing
Download DWG Download PDF

Features

Why Choose S626 2rs Bearing for Precision Tasks?

S626 2rs Bearing features stainless steel rings and balls, offering excellent corrosion resistance for precision applications.
Its sealed design protects against dust and moisture, ensuring smooth operation in various environments.

With a dynamic radial load capacity of 402 lbf, S626 2rs Bearing handles demanding radial loads reliably.
The ABEC1 tolerance class ensures consistent performance, making it suitable for high-precision machinery.

S626 2rs Bearing operates at speeds up to 28,800 rpm, balancing speed and durability.
Its compact size (6mm×19mm×6mm) makes it ideal for space-constrained applications.

Application

Common Applications of S626 2rs Bearing
S626 2rs Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its sealed design keeps out dust and moisture, ensuring long-lasting performance in everyday use.

Where Is S626 2rs Bearing Used?
You’ll often find S626 2rs Bearing in office equipment like printers and scanners, where its compact size and smooth operation are essential. The stainless steel construction also makes it suitable for environments where corrosion resistance is needed.

Built for Heavy-Duty Use: S626 2rs Bearing
S626 2rs Bearing handles radial loads efficiently in industrial automation, particularly in conveyor systems and small machinery. Its ABEC1 tolerance ensures reliable performance without the need for frequent maintenance.

Medical vs Industrial: Where S626 2rs Bearing Excels
In medical devices, S626 2rs Bearing is used in precision instruments like dental drills, thanks to its smooth rotation and durability. For industrial applications, it’s a go-to choice for small gearboxes and pumps.

Perfect Fit for Automation: S626 2rs Bearing
S626 2rs Bearing works well in robotic arms and 3D printers, where its low friction and high-speed capability are key. The nitrile rubber seal adds an extra layer of protection against contaminants.
