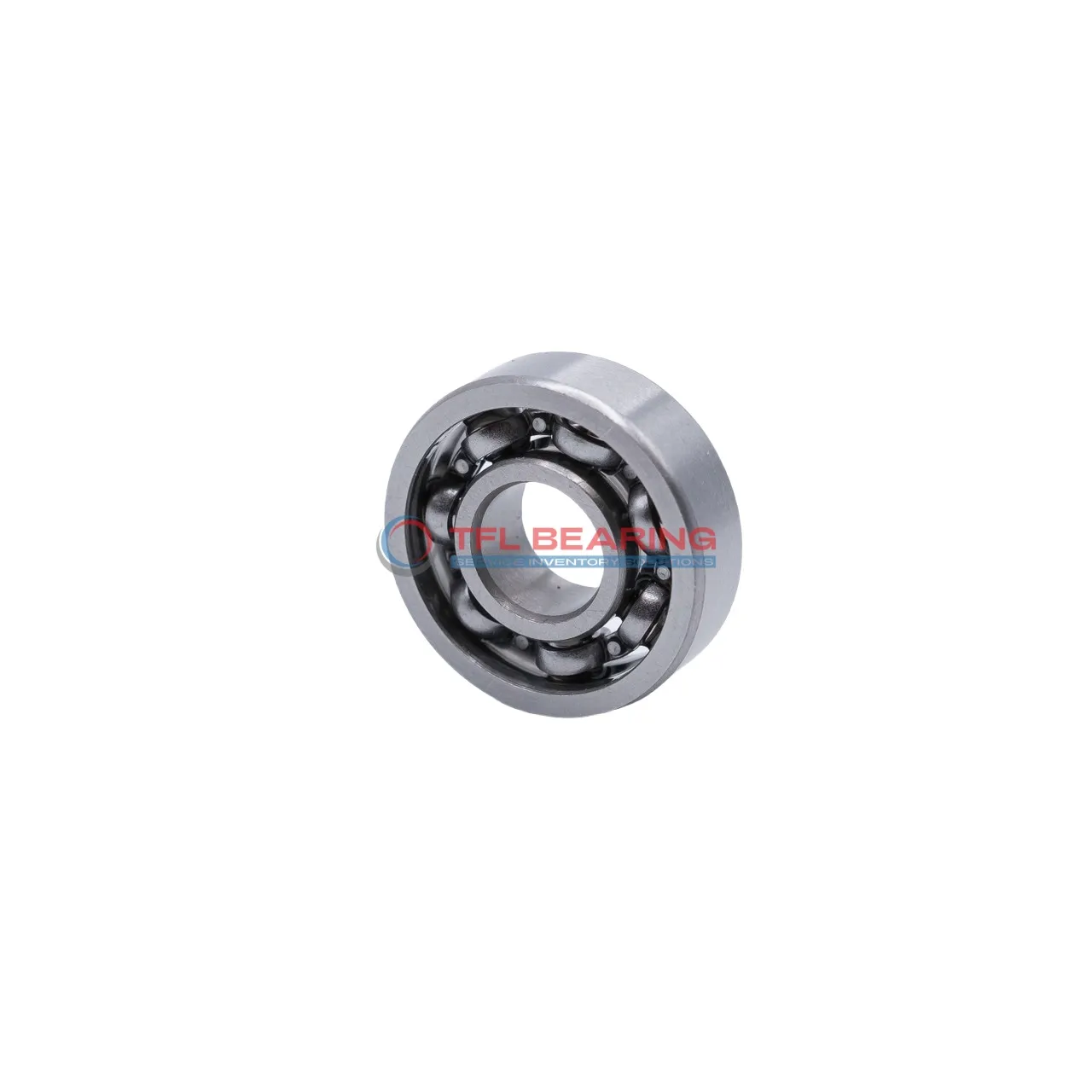

Metric Size Standard Miniature Ball Bearings S624

Metric Size Standard Miniature Ball Bearings S624

The S624 is a compact miniature ball bearing with a 4mm bore and 13mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 224 lbf and spins smoothly at high speeds, reaching up to 36,000 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures reliable performance. The bearing operates well in temperatures ranging from -30°C to 110°C.

With a lightweight build at just 3.1g, it’s ideal for small, precision applications like model making or miniature machinery. Compliant with RoHS and REACH standards, it’s a safe and versatile choice for various lightweight projects.

The ABEC1 tolerance and MC3 radial clearance make it suitable for applications where moderate precision is needed without excessive friction.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S624
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 4 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 13 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 7
  • Ball Dia 2.3810 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Open
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 224 lbf
  • Static Radial Load 79 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 36000 rpm
  • Weight 3.1 g
  • Price（$） 1.242
Metric Size Standard Miniature Ball Bearings S624 dimension drawing
Download DWG Download PDF

Features

Why Choose S624 Bearing for Precision Tasks?

S624 Bearing is crafted with stainless steel rings and balls, ensuring smooth operation in precision applications.
Its dynamic radial load capacity of 224 lbf makes it suitable for delicate yet demanding tasks.
The open design allows for easy lubrication, maintaining optimal performance over time.
With a maximum speed of 36,000 rpm, it excels in high-speed scenarios.

Application

Common Applications of S624 Bearing
S624 Bearing is widely used in small electric motors, such as those found in cooling fans and power tools, thanks to its compact size and reliable radial load capacity. The stainless steel construction ensures durability even in damp or corrosive environments.

Where Is S624 Bearing Used?
You’ll often spot S624 Bearing in precision instruments like dental drills or laboratory equipment, where smooth rotation is essential. Its ABEC1 tolerance class makes it suitable for applications requiring consistent performance without excessive noise.

Built for Versatility: S624 Bearing
In automation systems, S624 Bearing fits neatly into robotic arms and small conveyor mechanisms, handling moderate loads with ease. The open design simplifies lubrication, extending its service life in continuous operation.

Medical vs Industrial: Where S624 Bearing Excels
While S624 Bearing performs well in industrial settings like textile machinery, it’s equally at home in medical devices such as handheld scanners. The stainless steel materials meet hygiene standards while resisting wear.

Light-Duty vs Heavy-Duty: Best Uses for S624 Bearing
S624 Bearing shines in light-duty applications like model-making or small appliances, where its 4mm bore is ideal. For heavier tasks, it’s often used in clusters to distribute loads across multiple units.
