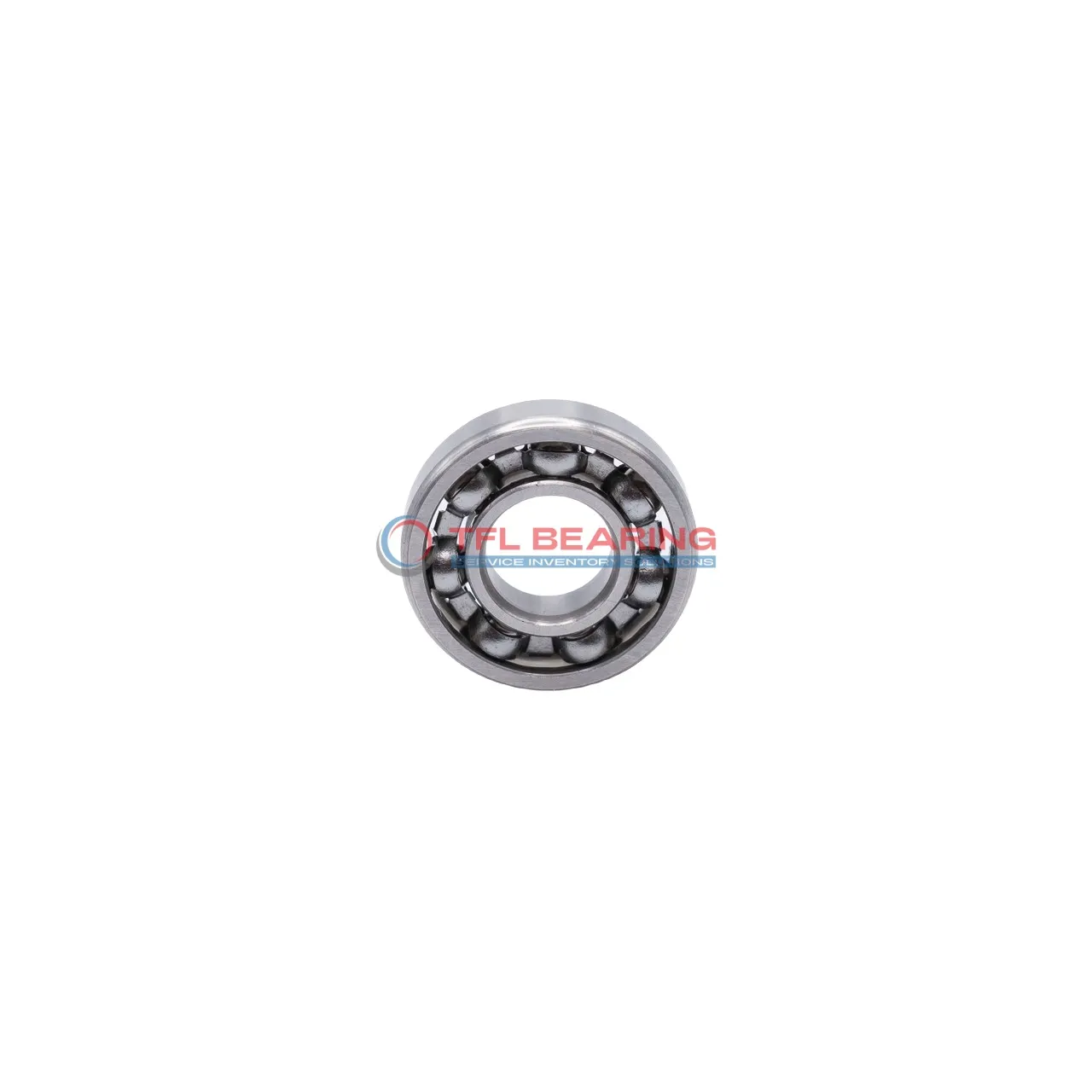

Metric Size Standard Miniature Ball Bearings S601x

Metric Size Standard Miniature Ball Bearings S601x

The S601x is a compact miniature ball bearing with a 1.5mm bore and 6mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 57 lbf and spins smoothly at speeds up to 67,500 RPM.

Its open design simplifies lubrication, while the stainless steel cage ensures reliable performance in varied conditions. The bearing operates well in temperatures from -30°C to 110°C.

With a lightweight build of just 0.31g, it’s ideal for small, precision applications like miniature motors or medical devices. Compliant with RoHS and REACH standards, it’s a safe choice for sensitive environments.

The ABEC1 tolerance and MC3 radial clearance make it suitable for applications where moderate precision and smooth rotation are needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S601x
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 1.5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 6 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 2.5 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 6
  • Ball Dia 1.2000 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Open
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 57 lbf
  • Static Radial Load 16 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 67500 rpm
  • Weight 0.31 g
  • Price（$） 13.5
Metric Size Standard Miniature Ball Bearings S601x dimension drawing
Download DWG Download PDF

Features

Performance Features of S601x Bearing

S601x Bearing is crafted with stainless steel rings and balls, offering good resistance to corrosion and wear.
Its compact size of 1.5 mm×6 mm×2.5 mm makes it ideal for applications where space is limited.
The open design allows for easy lubrication, ensuring smooth operation over time.
With a maximum speed of 67,500 rpm, it delivers reliable performance in high-speed scenarios.

Application

Common Applications of S601x Bearing
S601x Bearing is widely used in small electric motors, such as those found in drones or miniature fans, thanks to its compact size and smooth operation. The stainless steel construction ensures durability even in humid environments.

In medical devices like insulin pumps or dental tools, S601x Bearing provides reliable performance due to its precision engineering. Its open design allows for easy lubrication, extending service life in critical applications.

For hobbyist projects like model trains or RC cars, S601x Bearing offers a cost-effective solution for smooth rotational movement. The lightweight design doesn’t compromise on load capacity, making it versatile for various DIY uses.

Where Is S601x Bearing Used?
You’ll often spot S601x Bearing in office equipment like printers or scanners, where quiet operation is essential. Its ABEC1 tolerance ensures consistent performance without unnecessary noise.

In wearable tech like fitness trackers, S601x Bearing helps reduce friction in moving parts. The corrosion-resistant materials make it suitable for devices exposed to sweat or moisture.

Built for Versatility: S601x Bearing
S601x Bearing works well in laboratory instruments, providing precise movement for delicate measurements. The stainless steel balls and rings maintain accuracy even with frequent use.

Automotive vs Aerospace: Applications of S601x Bearing
In automotive applications, S601x Bearing can be found in dashboard instruments or small actuators. Its compact size fits neatly into tight spaces without sacrificing performance.

For aerospace models or lightweight mechanisms, S601x Bearing’s high-speed capability is a real advantage. The low weight contributes to fuel efficiency in miniature aircraft designs.
