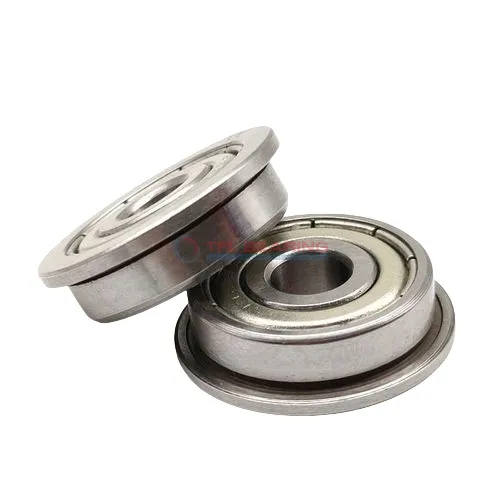

Metric Size Miniature Flanged Ball Bearings SF697zz

Metric Size Miniature Flanged Ball Bearings SF697zz

The SF697zz is a compact, shielded ball bearing with a 7mm bore and 17mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 276 lbf and spins at speeds up to 32,400 RPM, making it suitable for high-speed applications.

Its shielded design helps keep out dust and debris, while the stainless steel cage ensures smooth operation. The bearing requires lubrication for optimal performance and works in temperatures from -30°C to 110°C.

With a lightweight design at just 5.54g, it’s ideal for small machinery or precision instruments. The flange adds extra stability, making it easier to install securely. Compliant with RoHS and REACH standards, it’s a reliable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF697zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 17 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 19 mm
  • Flange Thickness 1.2 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 9
  • Ball Dia 2.3810 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 276 lbf
  • Static Radial Load 117 lbf
  • Max Speed 32400 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.54 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.62
Metric Size Miniature Flanged Ball Bearings SF697zz dimension drawing
Download DWG Download PDF

Features

How Does SF697zz Bearing Reduce Friction?

SF697zz Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design protects against contaminants while maintaining low resistance during rotation.

With a dynamic radial load capacity of 276 lbf, it handles moderate loads efficiently.
The ABEC1 tolerance class ensures consistent performance for precision applications.

SF697zz Bearing operates at speeds up to 32,400 rpm, making it suitable for high-speed devices.
Its stainless steel construction resists corrosion, extending service life in various environments.

Application

Common Applications of SF697zz Bearing
SF697zz Bearing is widely used in small electric motors, such as those found in cooling fans and household appliances. Its shielded design helps keep out dust while maintaining smooth rotation.

In automation systems, SF697zz Bearing is often found in compact robotic arms and precision instruments. The stainless steel construction ensures reliable performance even in humid environments.

For consumer electronics like printers and handheld tools, SF697zz Bearing provides quiet operation thanks to its balanced design. The small size makes it ideal for space-constrained applications.

Medical devices such as dental handpieces benefit from SF697zz Bearing’s high-speed capabilities. The corrosion-resistant materials meet hygiene requirements in clinical settings.
