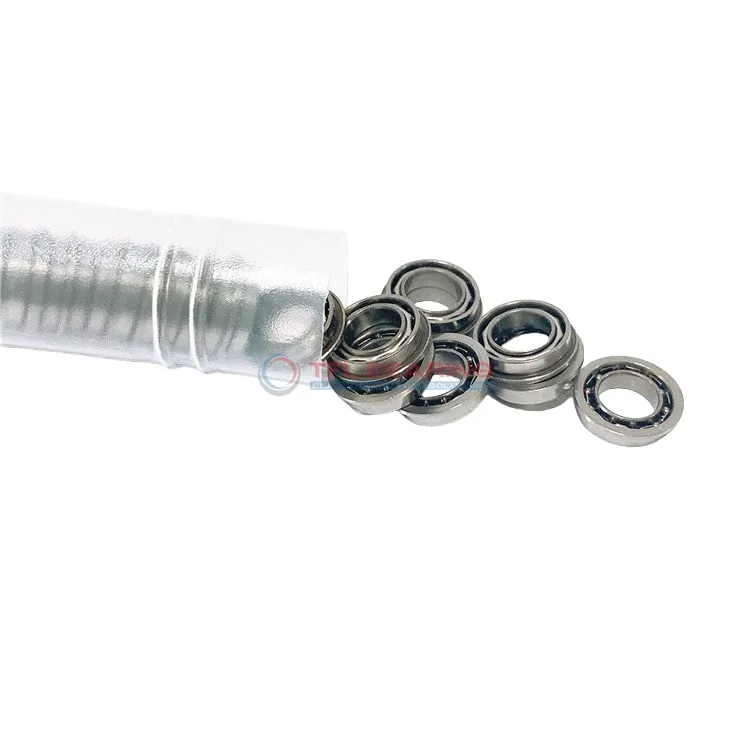

Metric Size Miniature Flanged Ball Bearings SF606

Metric Size Miniature Flanged Ball Bearings SF606

The SF606 is a compact radial ball bearing with a 6mm bore and 17mm outer diameter, crafted entirely from stainless steel for durability. It supports radial loads up to 390 lbf and spins at speeds up to 34,200 RPM, making it suitable for high-speed applications.

Its open design allows for easy lubrication, while the stainless steel cage ensures smooth operation. The bearing includes a flange for secure mounting, with a flange outer diameter of 19mm.

With a radial clearance of 0.002mm to 0.013mm, it offers precise performance. Ideal for small machinery, dental tools, or precision instruments where reliability is key.

Weighing just 6.47g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF606
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 17 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 19 mm
  • Flange Thickness 1.2 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 6
  • Ball Dia 3.5000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 390 lbf
  • Static Radial Load 137 lbf
  • Max Speed 34200 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 6.47 g
  • Price（$） 1.62
Metric Size Miniature Flanged Ball Bearings SF606 dimension drawing
Download DWG Download PDF

Features

How Does SF606 Bearing Achieve High-Speed Performance?

SF606 Bearing is crafted with stainless steel rings and balls, ensuring smooth operation at high speeds.
Its maximum speed of 34,200 rpm makes it suitable for precision applications requiring rapid rotation.

The open design of SF606 Bearing allows for easy lubrication, maintaining optimal performance over time.
With a dynamic radial load capacity of 390 lbf, it handles moderate loads efficiently.

SF606 Bearing’s stainless steel cage keeps the balls aligned, reducing friction and wear.
Its compact size and lightweight design make it ideal for space-constrained applications.

The ABEC1 tolerance class ensures reliable performance in various industrial settings.
SF606 Bearing operates within a temperature range of -30° to 110°C, adapting to diverse environments.

Application

Where Is SF606 Bearing Used?
SF606 Bearing is commonly found in small electric motors, such as those used in cooling fans or power tools. Its compact size and stainless steel construction make it suitable for applications where space and corrosion resistance are key factors.

In robotics, SF606 Bearing supports precise movements in joints and actuators, thanks to its smooth operation and low friction. The open design allows for easy lubrication, ensuring long-term performance in automated systems.

For medical devices like dental handpieces, SF606 Bearing’s high-speed capability and reliability are essential. The stainless steel materials also meet hygiene standards, making it ideal for sensitive environments.

In consumer electronics, SF606 Bearing can be found in devices like printers or small appliances. Its lightweight design and durability ensure quiet and efficient operation over time.
