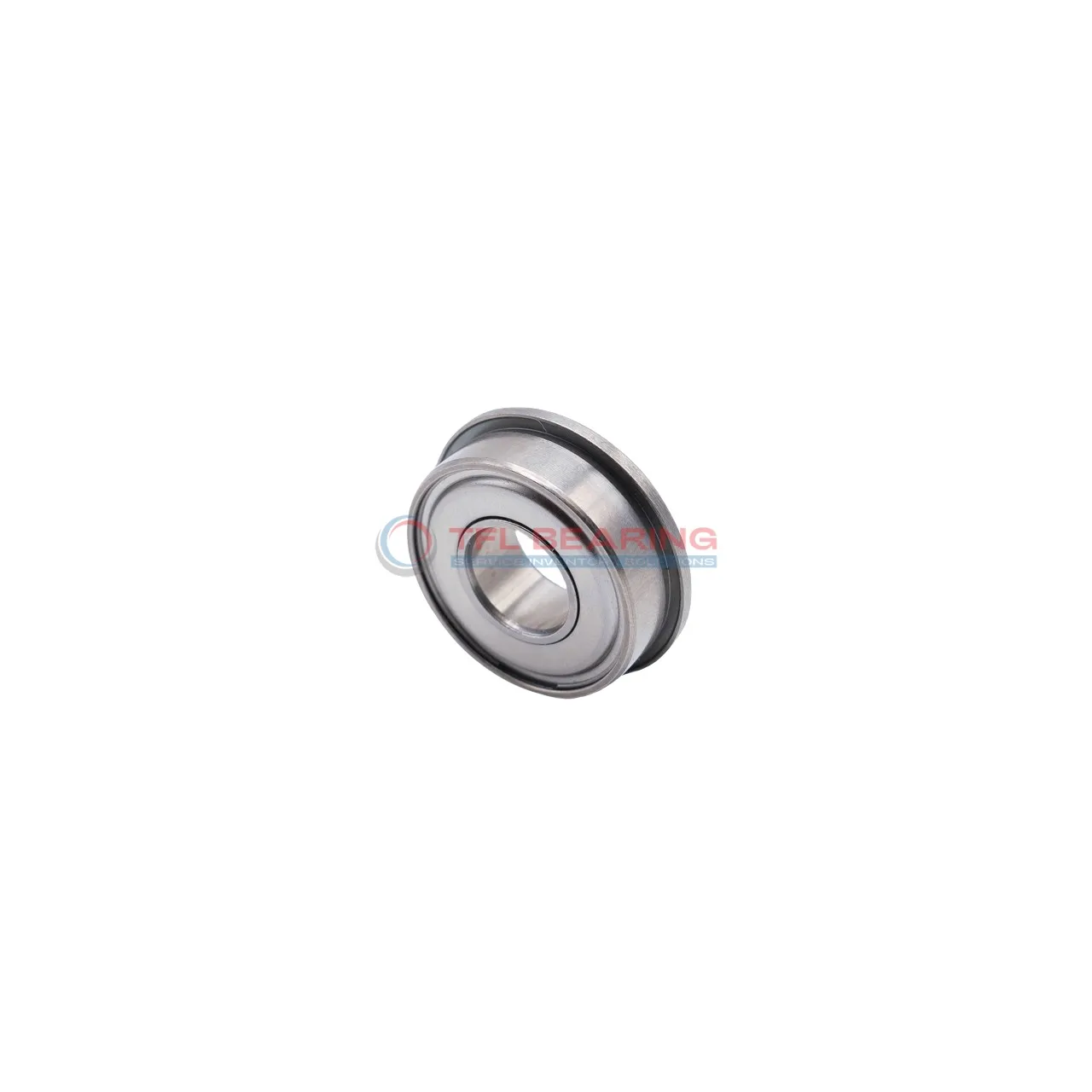

Metric Size Miniature Flanged Ball Bearings SF601xzz

Metric Size Miniature Flanged Ball Bearings SF601xzz

The SF601xzz is a small, shielded radial ball bearing with a 1.5mm bore and 6mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 57 lbf and spins at impressive speeds up to 67,500 RPM.

Its shielded design helps keep dirt out while maintaining smooth operation, and the stainless steel cage ensures long life. The bearing requires lubrication for optimal performance and works in temperatures from -30°C to 110°C.

With a compact width of just 3mm and a lightweight 0.5g design, it’s ideal for small, high-speed devices like precision instruments or miniature motors. Compliant with RoHS and REACH standards, it’s a reliable choice for tight spaces.

The flange adds stability during installation, making it easier to fit in delicate assemblies. Its ABEC1 tolerance and MC3 clearance ensure consistent performance in everyday applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF601xzz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 1.5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 6 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 7.5 mm
  • Flange Thickness 0.8 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 6
  • Ball Dia 1.2000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 57 lbf
  • Static Radial Load 16 lbf
  • Max Speed 67500 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.5 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 19.8
Metric Size Miniature Flanged Ball Bearings SF601xzz dimension drawing
Download DWG Download PDF

Features

How Does SF601xzz Bearing Reduce Friction?

SF601xzz Bearing features stainless steel construction, ensuring smooth operation with minimal friction.
Its shielded design protects against contaminants while maintaining low resistance during rotation.
With a dynamic radial load capacity of 57 lbf, it handles moderate loads efficiently.
The precision-engineered stainless steel cage keeps the balls aligned, enhancing performance.

Why Choose SF601xzz Bearing for Precision Tasks?

SF601xzz Bearing is designed for high-speed applications, reaching up to 67,500 rpm.
Its ABEC1 tolerance class ensures consistent performance in precision instruments.
The stainless steel balls and rings provide durability and resistance to wear.
With a compact design, it fits seamlessly into small, high-performance devices.

Engineered for Precision: SF601xzz Bearing

SF601xzz Bearing’s single-row construction offers reliable radial load support.
The shielded seals prevent dust ingress, maintaining smooth operation.
Its temperature range of -30° to 110°C ensures versatility in various environments.
The lightweight design at just 0.5g makes it ideal for portable applications.

Steel vs Ceramic Bearings: Strengths of SF601xzz Bearing

SF601xzz Bearing uses stainless steel for both rings and balls, ensuring corrosion resistance.
This material choice provides a balance between durability and cost-effectiveness.
The bearing’s high-speed capability makes it suitable for demanding applications.
Its compact size and lightweight design enhance its usability in small devices.

What Makes SF601xzz Bearing Suitable for High-Temperature Applications?

SF601xzz Bearing operates reliably in temperatures ranging from -30° to 110°C.
The stainless steel construction resists thermal expansion, maintaining performance.
Its shielded design protects internal components from heat-related contaminants.
The bearing’s high-speed capability remains stable even under thermal stress.

Application

Where Is SF601xzz Bearing Used?
SF601xzz Bearing is commonly found in small precision devices like dental tools or watch mechanisms, where its compact size and shielded design keep out contaminants. The stainless steel construction ensures it performs well in humid or corrosive environments.

In consumer electronics, SF601xzz Bearing supports smooth rotation in items like miniature fans or camera lenses. Its high-speed capability (up to 67,500 rpm) makes it ideal for applications requiring rapid, consistent movement.

For automation systems, SF601xzz Bearing fits neatly into robotic arms or small actuators, providing reliable radial load support. The ABEC1 tolerance ensures sufficient precision for most light-duty industrial uses.

Medical devices like insulin pumps often use SF601xzz Bearing due to its biocompatible materials and consistent performance. The lightweight design (just 0.5g) helps maintain device portability without sacrificing durability.
