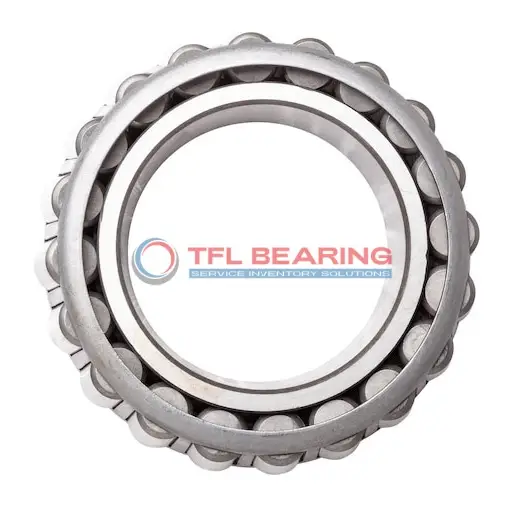

M241545 Single Cones (Imperial)

M241545 Single Cones (Imperial)

The M241545 is a single-row tapered roller bearing cone with a 7.906″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 126,000 lbf and static loads up to 238,000 lbf.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This cone is part of the M241500 series and is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery.

With standard radial clearance and ABEC-1 rating, it offers a balance of precision and durability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M241545
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number M241545-M241510
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series M241500
  • Bore Dia 7.906"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 2.4375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.25"
  • Cone Frontface Backing Diameter 8.62"
  • Cone Backface Backing Diameter 8.86"
  • Cage Cone Frontface Clearance 0.03"
  • Cage Cone Backface Clearance 0.12"
  • Effective Center Location -0.19"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 126000 lbf
  • Static Radial Load 238000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 32600 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 219000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 18600 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 56800 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of M241545 Bearing

M241545 Bearing is crafted from chrome steel, offering strong resistance to combined loads with a dynamic radial load capacity of 126,000 lbf.
Its single-row tapered roller design ensures efficient load distribution and smooth operation.

The steel cage maintains proper roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, M241545 Bearing performs reliably in various conditions.

M241545 Bearing’s standard radial clearance allows for flexibility in different applications.
Its ABEC-1 rating ensures consistent performance for general industrial use.

Application

Industrial Uses of M241545 Bearing
M241545 Bearing is commonly used in heavy machinery, such as mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

Where Is M241545 Bearing Used?
You’ll find M241545 Bearing in agricultural machinery, particularly in gearboxes and wheel hubs, where its robust construction withstands high radial and thrust loads. Its inch sizing makes it a preferred choice for North American industrial applications.

Built for Heavy-Duty Use: M241545 Bearing
M241545 Bearing excels in railway applications, supporting axle loads with its high dynamic radial rating. The chrome steel rings and steel cage ensure durability even under continuous operation.

Automotive vs Aerospace: Applications of M241545 Bearing
In automotive systems, M241545 Bearing is ideal for truck wheel hubs, while in aerospace, it’s suited for landing gear components. Its ABEC-1 rating balances precision and cost for these varied uses.

Practical Applications of M241545 Bearing
M241545 Bearing works well in wind turbine gearboxes, where its tapered rollers manage fluctuating loads. The standard radial clearance option provides flexibility for different operational needs.
