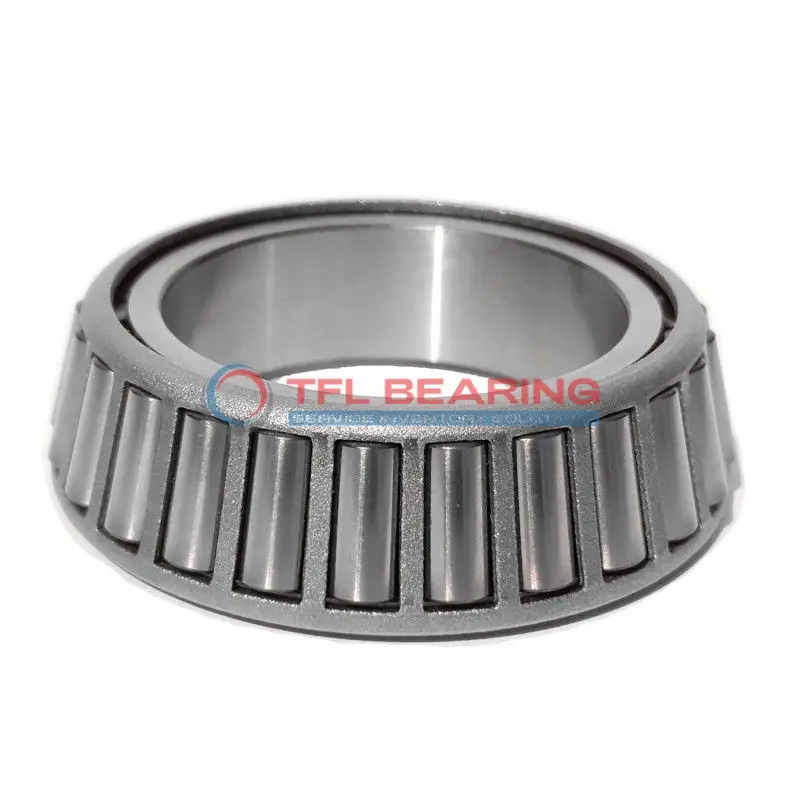

LM67049A Single Cones (Imperial)

LM67049A Single Cones (Imperial)

The LM67049A is a single-row tapered roller bearing cone with a 1.25″ bore, made from durable chrome steel. It handles combined loads up to 10500 lbf and works well in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The cone width is 0.66″, making it compact yet sturdy for its size.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for applications like automotive axles or industrial gearboxes where combined loads are common.

Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The ABEC-1 rating ensures consistent performance for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LM67049A
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number LM67049A-LM67010 , LM67049A-LM67014 , LM67049A-LM67014X , LM67049A-LM67019
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series LM67000
  • Bore Dia 1.25"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.66"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.42"
  • Cone Backface Backing Diameter 1.46"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.12"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 10500 lbf
  • Static Radial Load 10000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 2720 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 18300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1920 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 4740 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose LM67049A Bearing for Combined Loads?

LM67049A Bearing is crafted from chrome steel, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 10,500 lbf, making it suitable for demanding applications.

The tapered roller design ensures smooth operation under combined loads, enhancing performance.
With a temperature range of -30° to 110°C, LM67049A Bearing performs reliably in various conditions.

The steel cage maintains roller alignment, reducing wear and extending service life.
Its standard radial clearance options provide flexibility for different operational needs.

Application

Industrial Uses of LM67049A Bearing
LM67049A Bearing is commonly used in heavy machinery, such as construction equipment and agricultural vehicles, where its tapered roller design handles combined loads effectively. The open seal allows for easy lubrication, extending its service life in demanding conditions.

What Makes LM67049A Bearing a Preferred Choice?
In automotive applications, LM67049A Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it a versatile option for American and British machinery.

Built for Heavy-Duty Use: LM67049A Bearing
For industrial conveyor systems, LM67049A Bearing’s chrome steel construction ensures durability and consistent operation. The steel cage adds strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of LM67049A Bearing
In automotive settings, LM67049A Bearing excels in transmission systems, while its precision makes it suitable for aerospace landing gear components. The ABEC-1 rating ensures reliable performance across both industries.

Perfect Fit for Automation: LM67049A Bearing
LM67049A Bearing is ideal for robotic arms and automated assembly lines, where its tapered rollers provide smooth motion control. The standard radial clearance offers flexibility for various precision requirements.
