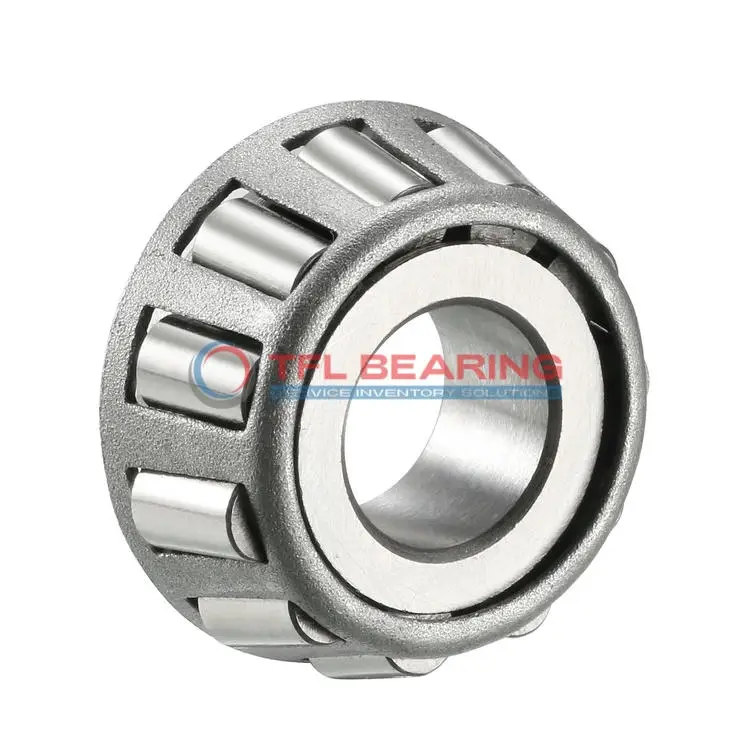

LL205449 Single Cones (Imperial)

LL205449 Single Cones (Imperial)

The LL205449 is a single-row tapered roller bearing with a 2-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 8390 lbf and static loads up to 10600 lbf.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for applications like heavy machinery or automotive systems where combined loads are common.

Compliant with RoHS and REACH standards, it offers a balance of strength and durability for industrial use. The standard radial clearance ensures easy installation and reliable operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LL205449
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number LL205449-LL205410 , LL205449-LL205410-B
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series LL205400
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.5"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 2.17"
  • Cone Backface Backing Diameter 2.24"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location 0"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 8390 lbf
  • Static Radial Load 10600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 2180 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 14600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1250 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 3790 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is LL205449 Bearing Engineered for Reliability?

LL205449 Bearing features chrome steel rings and a steel cage, ensuring durability under combined loads.
Its dynamic radial load capacity of 8390 lbf makes it suitable for heavy-duty applications.

The tapered roller design provides smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

LL205449 Bearing’s standard radial clearance allows for flexibility in different applications.
Its ABEC-1 rating ensures consistent performance for precision tasks.

Application

Industrial Uses of LL205449 Bearing
LL205449 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in rugged environments.

Where Is LL205449 Bearing Used?
You’ll find LL205449 Bearing in automotive applications like truck wheel hubs, where its high dynamic radial load capacity supports smooth operation. Its inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: LL205449 Bearing
In conveyor systems, LL205449 Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The steel cage adds stability, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of LL205449 Bearing
While LL205449 Bearing excels in automotive wheel hubs, its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance in both fields.

Perfect Fit for Automation: LL205449 Bearing
LL205449 Bearing works well in robotic arms, where its tapered rollers manage radial and thrust loads seamlessly. The standard radial clearance offers flexibility for various automation setups.
