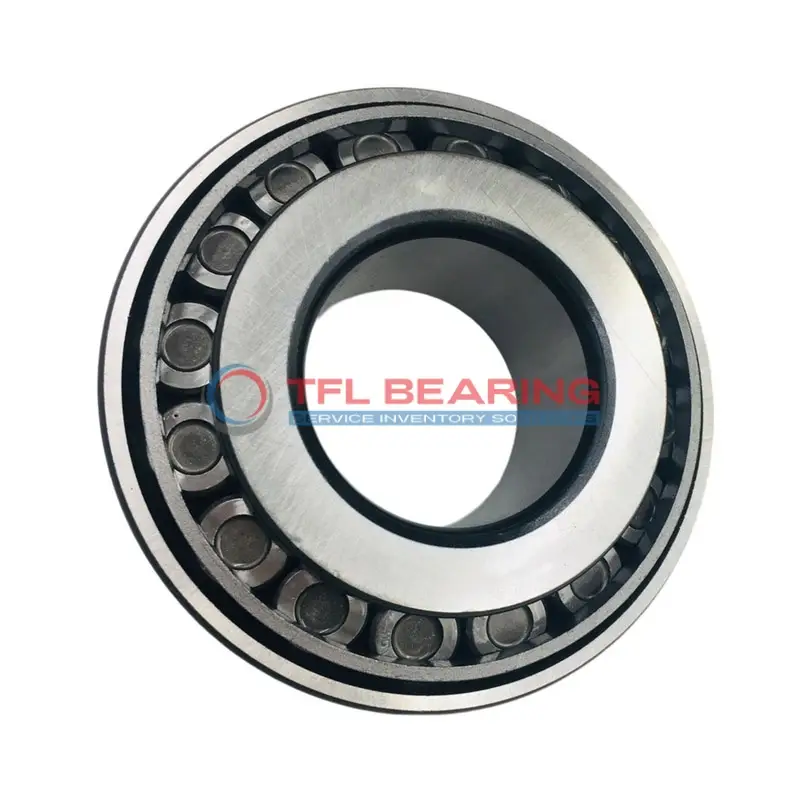

KHM215249 Single Cones (Imperial)

KHM215249 Single Cones (Imperial)

The KHM215249 is a single-row tapered roller bearing cone with a 2.9916″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 58,400 lbf and static loads up to 72,800 lbf.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, making it suitable for various conditions.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for heavy-duty applications like industrial machinery or automotive systems where combined loads are common.

Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The standard radial clearance ensures versatility, with options for C3, C4, or C5 clearances if needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number KHM215249
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number KHM215249-KHM215210
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 2.9916"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.5354"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.28"
  • Cone Frontface Backing Diameter 3.35"
  • Cone Backface Backing Diameter 3.86"
  • Cage Cone Frontface Clearance 0.14"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.38"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 58400 lbf
  • Static Radial Load 72800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 15100 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 102000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8620 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 26400 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Does KHM215249 Bearing Handle Combined Loads?

KHM215249 Bearing is crafted from chrome steel, offering robust resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 58,400 lbf, ensuring reliable performance in demanding conditions.

The tapered roller design of KHM215249 Bearing enhances load distribution, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

KHM215249 Bearing features a steel cage that maintains roller alignment for smooth operation.
Its standard radial clearance options provide flexibility for different applications.

Application

Industrial Uses of KHM215249 Bearing
KHM215249 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is KHM215249 Bearing Used?
You’ll often find KHM215249 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design supports high radial and thrust loads. Its inch sizing makes it a fit for older or imperial-based systems.

Built for Heavy-Duty Use: KHM215249 Bearing
KHM215249 Bearing excels in industrial gearboxes, providing reliable performance under constant stress. The steel cage adds strength, making it suitable for prolonged use in harsh conditions.

Automotive vs Aerospace: Applications of KHM215249 Bearing
In automotive applications, KHM215249 Bearing is ideal for wheel hubs and differentials, offering smooth operation. While not typically used in aerospace, its precision makes it a backup for ground support equipment.

Essential Roles of KHM215249 Bearing
KHM215249 Bearing is a go-to for conveyor systems in manufacturing plants, thanks to its ability to handle both radial and axial loads. The standard radial clearance ensures easy installation and maintenance.
