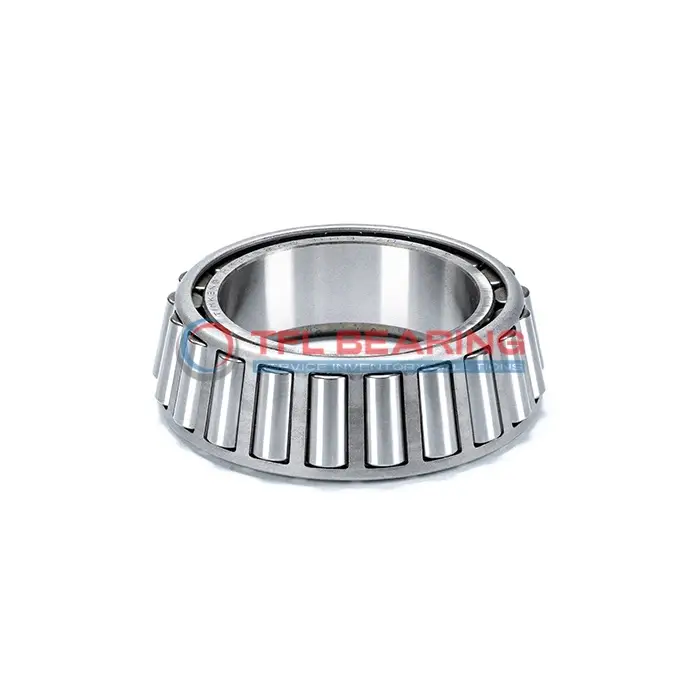

K150198 Single Cones (Imperial)

K150198 Single Cones (Imperial)

The K150198 is a single-row tapered roller bearing cone with a 4.5-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 181,000 lbf and static loads up to 204,000 lbf.

Its open design and steel cage ensure smooth operation, even at high speeds. The cone width of 2.625 inches provides stability, while the standard radial clearance offers flexibility for various applications.

This model is interchangeable with Timken bearings, making it a reliable choice for replacements. Ideal for heavy-duty machinery like gearboxes or industrial equipment where combined loads are common.

With a temperature range of -30°C to 110°C and compliance with RoHS and REACH standards, it’s a safe and robust option for demanding environments. The ABEC-1 rating ensures consistent performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K150198
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number K150198-K150199
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series HH224300
  • Bore Dia 4.5"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 2.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.28"
  • Cone Frontface Backing Diameter 5.16"
  • Cone Backface Backing Diameter 5.63"
  • Cage Cone Frontface Clearance 0.15"
  • Cage Cone Backface Clearance 0.16"
  • Effective Center Location -0.74"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 181000 lbf
  • Static Radial Load 204000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 47000 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 315000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 26200 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 81800 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is K150198 Bearing Engineered for Reliability?

K150198 Bearing is built with chrome steel rings and a steel cage, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 181,000 lbf, making it suitable for heavy-duty applications.
The tapered roller design provides effective load distribution, enhancing performance and longevity.
With a temperature range of -30° to 110°C, it operates reliably in various conditions.

What Makes K150198 Bearing Suitable for High-Temperature Applications?

K150198 Bearing can withstand temperatures up to 110°C, maintaining performance in demanding environments.
The chrome steel construction resists wear, ensuring consistent operation under high thermal stress.
Its standard radial clearance options (C3/C4/C5) allow for flexibility in different applications.
This makes K150198 Bearing a reliable choice for industrial and automotive uses.

Designed for Durability: K150198 Bearing

K150198 Bearing features a single-row tapered roller design, optimised for combined load handling.
The steel cage maintains proper roller alignment, reducing friction and wear over time.
With a static radial load capacity of 204,000 lbf, it excels in heavy-load scenarios.
Its robust construction ensures long service life, even in harsh operating conditions.

Application

Industrial Uses of K150198 Bearing
K150198 Bearing is commonly used in heavy machinery, such as mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is K150198 Bearing Used?
You’ll often find K150198 Bearing in agricultural machinery, like tractors and harvesters, where its robust design supports high radial and thrust loads. Its inch sizing makes it a convenient choice for older equipment still using imperial measurements.

Built for Heavy-Duty Use: K150198 Bearing
K150198 Bearing excels in industrial gearboxes, providing reliable performance under continuous operation. The open seal type allows for easy lubrication, extending its service life in harsh conditions.

Automotive vs Aerospace: Applications of K150198 Bearing
In automotive applications, K150198 Bearing is ideal for wheel hubs and differentials, offering stability under varying loads. While not typically used in aerospace, its precision makes it suitable for certain ground support equipment.

Perfect Fit for Automation: K150198 Bearing
K150198 Bearing works well in automated conveyor systems, where its tapered rollers ensure smooth movement under heavy loads. The steel cage adds extra strength, making it a dependable choice for repetitive tasks.
