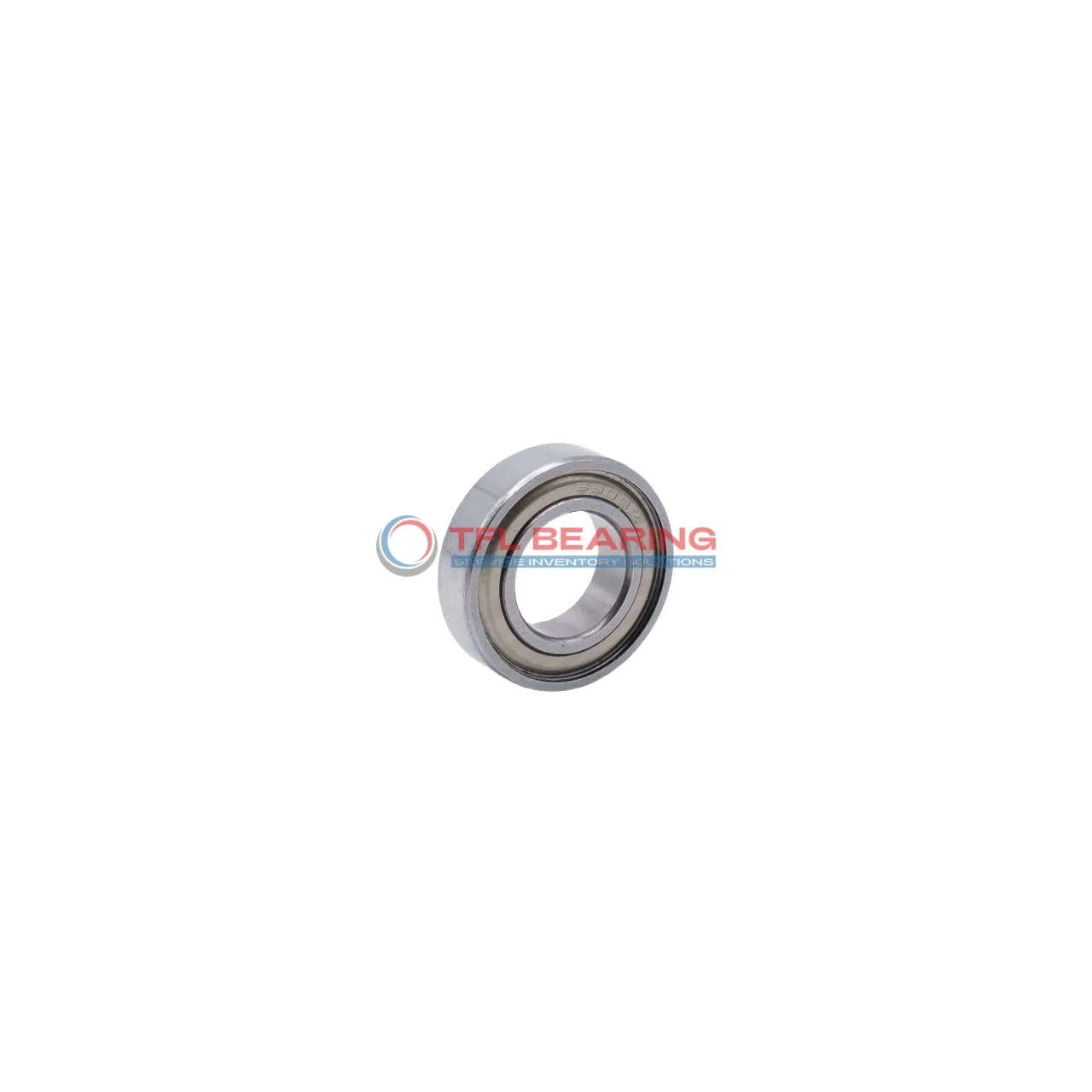

Inch Size Miniature Ball Bearings R2Azz

Inch Size Miniature Ball Bearings R2Azz

The R2Azz is a small, shielded ball bearing measuring 0.125″×0.5″×0.1719″, crafted from chrome steel for durability. It supports radial loads up to 122 lbf and spins smoothly at speeds up to 53,000 RPM.

Its stainless steel cage and shielded design help keep dirt out while maintaining easy lubrication. The bearing operates in temperatures from -86°F to 230°F, making it versatile for various conditions.

With an ABEC1 tolerance class, it offers reliable precision for everyday applications. Ideal for small machinery, hobby projects, or instruments where compact size and steady performance matter.

Weighing just 3.3g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number R2Azz
  • Brand TFL
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Radial Clearance 0.00008" to 0.0005"
  • Ball Qty 7
  • Bore Dia 0.125"
  • Bore Dia Tolerance -0.0003" to 0"
  • Outer Dia 0.5"
  • Outer Dia Tolerance -0.0003" to 0"
  • Width 0.1719"
  • Width Tolerance -0.005" to 0"
  • Ball Dia 0.06252"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 122 lbf
  • Static Radial Load 41 lbf
  • Max Speed 53000 rpm
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.3 g
  • Price（$） 1.035
Inch Size Miniature Ball Bearings R2Azz dimension drawing
Download DWG Download PDF

Features

How Does R2Azz Bearing Reduce Friction?

R2Azz Bearing features a shielded design with chrome steel rings and balls, ensuring smooth radial movement.

The stainless steel cage maintains proper ball alignment, reducing friction and wear during operation.

With a dynamic radial load capacity of 122 lbf, it offers reliable performance in compact applications.

Its ABEC1 tolerance class ensures consistent precision for miniature bearing requirements.

Application

Where Is R2Azz Bearing Used?
R2Azz Bearing is commonly found in small-scale machinery, especially where space is limited but precision is needed, like in miniature motors or dental tools. Its shielded design helps keep contaminants out while maintaining smooth operation.

In automation systems, R2Azz Bearing works well in robotic arms and small actuators, thanks to its compact size and reliable radial load handling. The inch sizing makes it a good fit for equipment designed to imperial measurements.

For consumer electronics, R2Azz Bearing is often used in devices like cooling fans or small printers, where its lightweight and durability are key. The stainless steel cage ensures long-lasting performance even with frequent use.

Medical devices also benefit from R2Azz Bearing, particularly in portable instruments where its small dimensions and consistent performance are essential. The chrome steel construction adds to its reliability in critical applications.
