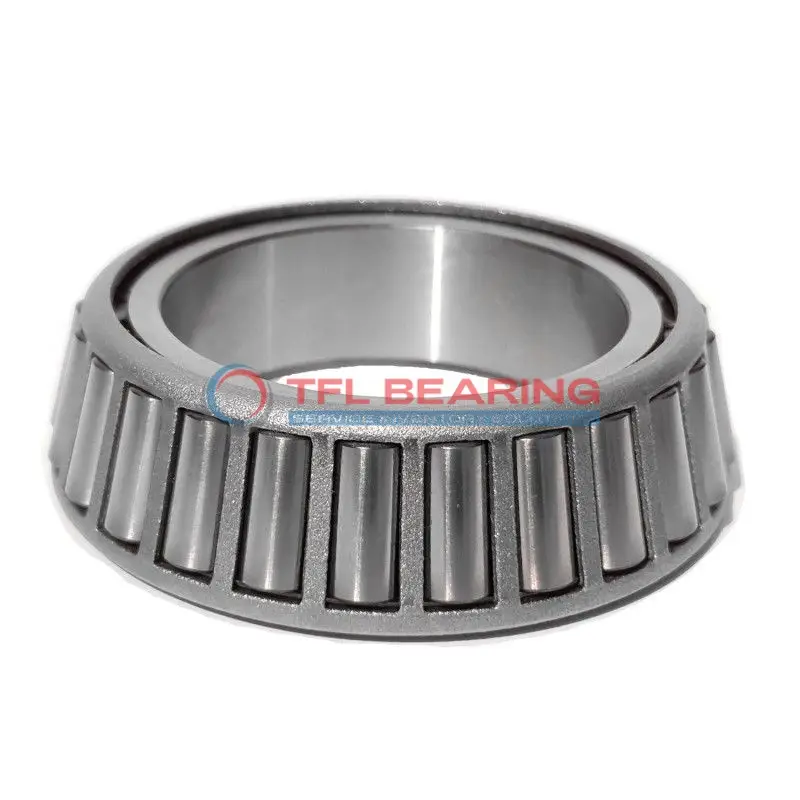

HM88547 Single Cones (Imperial)

HM88547 Single Cones (Imperial)

The HM88547 is a single-row tapered roller bearing cone with a 1.3125″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 23200 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The cone features standard radial clearance, with options for C3, C4, or C5 fits to suit different applications.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty machinery or automotive uses where combined loads are common.

Compliant with RoHS and REACH standards, it offers a balance of strength and versatility. The compact design, with a cone width of just 1.0938″, fits well in tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM88547
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number HM88547-HM88510 , HM88547-HM88511 , HM88547-HM88512
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 1.3125"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.0938"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.68"
  • Cone Backface Backing Diameter 1.79"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.06"
  • Effective Center Location -0.22"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 23200 lbf
  • Static Radial Load 24900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6010 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 40400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5620 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 10500 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is HM88547 Bearing Engineered for Reliability?

HM88547 Bearing features chrome steel rings and a steel cage, ensuring durability under combined loads.
Its dynamic radial load capacity reaches 23,200 lbf, making it suitable for heavy-duty applications.

The tapered roller design enhances performance, providing smooth operation even in demanding conditions.
With a temperature range of -30° to 110°C, HM88547 Bearing performs reliably in various environments.

The standard radial clearance allows for flexibility, accommodating different operational needs.
HM88547 Bearing’s precise construction ensures long service life with minimal maintenance.

Application

Industrial Uses of HM88547 Bearing
HM88547 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is HM88547 Bearing Used?
You’ll find HM88547 Bearing in automotive applications such as wheel hubs and differential systems, thanks to its reliable performance under radial and thrust loads. Its inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: HM88547 Bearing
HM88547 Bearing excels in industrial gearboxes, where its steel cage and standard radial clearance provide smooth operation. The ABEC-1 rating ensures consistent performance for general machinery.

Automotive vs Aerospace: Applications of HM88547 Bearing
In automotive settings, HM88547 Bearing supports high-load components like axles, while in aerospace, it’s used in landing gear systems. Its temperature range of -30° to 110°C suits varied operating conditions.

Perfect Fit for Automation: HM88547 Bearing
HM88547 Bearing works well in automated conveyor systems, where its tapered rollers manage both radial and axial forces. The open seal design allows for easy lubrication in continuous-use scenarios.
